RIEGLER Screw-In Hose Fitting, O-Ring, G 1/4, LW 12 Hose, MS, galvanized
Part Number: N239.520-N*
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Screw-in hose fitting (hose nozzle) for hose assembly – Type N239.520-N*
The RIEGLER screw-in hose fitting, O-ring, G 1/4, LW 12 hose, nickel-plated brass ensures a secure, leak-tight hose connection. The housing is made of nickel-plated brass CW614N (electroplated). G 1/4 male thread connection—compatible with common industry standards. For permanently leak-tight connections, even under pressure.
Scope of Application
Typical applications: Standard fittings made of “nickel-plated brass,” hose nipples, and screw-on fittings in compressed air and pneumatic systems.
| Working pressure max. | 25 bar |
| Material | Nickel-plated brass CW614N (electroplated nickel-plated) |
| Operating temperature max. | 80 °C |
| Thread | G 1/4 AG |
| SW | 16 mm |
| for hose | LW 12 mm |
| L1 | 345 |
| L2 | 7.1 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[111483] RIEGLER Screw-in hose connector, O-ring, G 1/2, for hose I.D. 12, AF 24](/web/image/product.template/183404/image_128/%5B111483%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20O-ring%2C%20G%201-2%2C%20for%20hose%20I.D.%2012%2C%20AF%2024?unique=73369f3)
|
Type number: N239.516-N |
3.03 € | |
![[111474] RIEGLER Screw-in hose connector, O-ring, G 1/4, for hose I.D. 11, AF 18](/web/image/product.template/183395/image_128/%5B111474%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20O-ring%2C%20G%201-4%2C%20for%20hose%20I.D.%2011%2C%20AF%2018?unique=f96029f)
|
Type number: 239.509 |
1.31 € | |

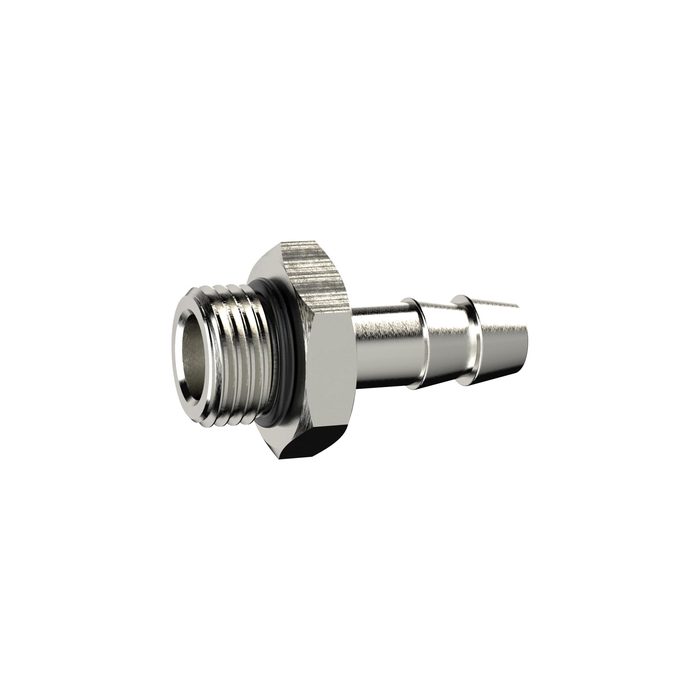

![[111470] RIEGLER Screw-in hose connector, O-ring, G 1/4, for hose I.D. 5 mm, AF 17](/web/image/product.template/183391/image_128/%5B111470%5D%20RIEGLER%20Screw-in%20hose%20connector%2C%20O-ring%2C%20G%201-4%2C%20for%20hose%20I.D.%205%20mm%2C%20AF%2017?unique=5b23800)
|
