RIEGLER Angled fitting, Pipe exterior Ø 10 mm, nickel-plated brass
Type number: N 76
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Winkel-Verschraubung, Rohr-Außen-Ø 10 mm, SW 13, SW1 19, Betriebsdruck max. 60 bar, Temperatur max 150 °C, Messing vern.
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Material | Nickel-plated brass |
| SW 1 | 19 mm |
| SW | 13 mm |
| Tube outer Ø | 10 mm |

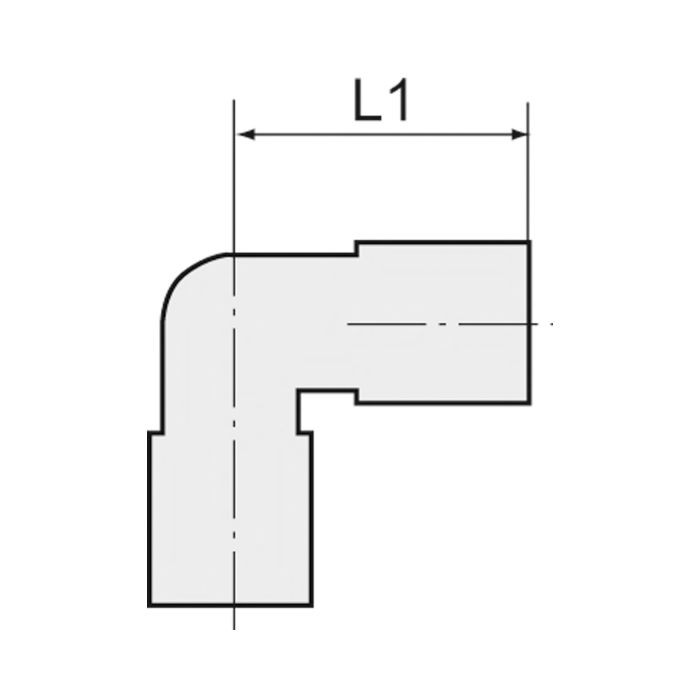

| L1 | 32 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112000] RIEGLER Angled fitting, Pipe exterior Ø 12 mm, nickel-plated brass](/web/image/product.template/183895/image_128/%5B112000%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%2012%20mm%2C%20nickel-plated%20brass?unique=2f05906)
|
Type number: N 77 |
8.06 € | |

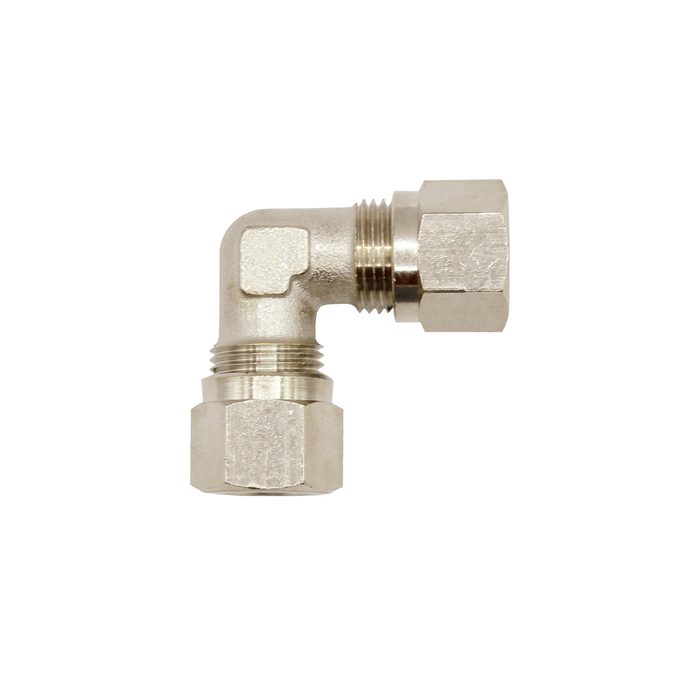

![[112001] RIEGLER Angled fitting, Pipe exterior Ø 15 mm, nickel-plated brass](/web/image/product.template/183896/image_128/%5B112001%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%2015%20mm%2C%20nickel-plated%20brass?unique=d142799)
|
