RIEGLER Angled fitting, Pipe exterior Ø 15 mm, nickel-plated brass
Type number: N 78
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Winkel-Verschraubung, Rohr-Außen-Ø 15 mm, SW 17, SW1 27, Betriebsdruck max. 60 bar, Temperatur max 150 °C, Messing vern.
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Material | Nickel-plated brass |
| SW 1 | 27 mm |
| SW | 17 mm |
| Tube outer Ø | 15 mm |

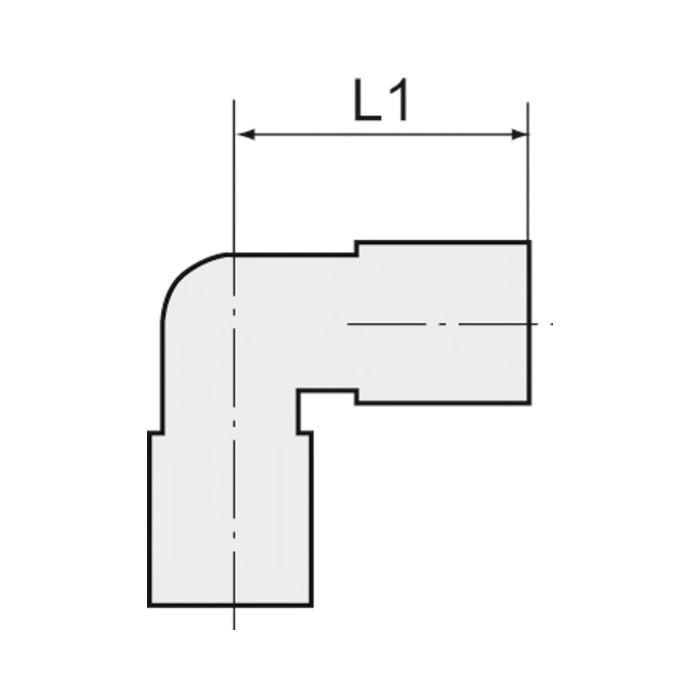

| L1 | 38 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[111999] RIEGLER Angled fitting, Pipe exterior Ø 10 mm, nickel-plated brass](/web/image/product.template/183894/image_128/%5B111999%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%2010%20mm%2C%20nickel-plated%20brass?unique=c0c2862)
|
Type number: N 76 |
6.30 € | |
![[112000] RIEGLER Angled fitting, Pipe exterior Ø 12 mm, nickel-plated brass](/web/image/product.template/183895/image_128/%5B112000%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%2012%20mm%2C%20nickel-plated%20brass?unique=2f05906)
|
Type number: N 77 |
8.06 € | |
![[112002] RIEGLER Angled fitting, Pipe exterior Ø 18 mm, nickel-plated brass](/web/image/product.template/183897/image_128/%5B112002%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%2018%20mm%2C%20nickel-plated%20brass?unique=3c52239)
|
Type number: N 79 |
14.28 € | |

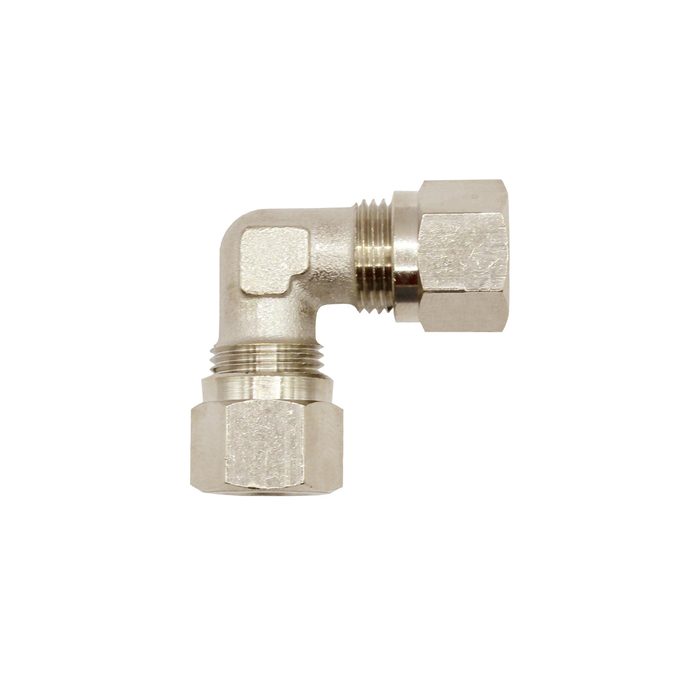

![[111996] RIEGLER Angled fitting, Pipe exterior Ø 4 mm, nickel-plated brass](/web/image/product.template/183891/image_128/%5B111996%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%204%20mm%2C%20nickel-plated%20brass?unique=2f88a46)
|
Type number: N 73 |
3.18 € | |
![[111997] RIEGLER Angled fitting, Pipe exterior Ø 6 mm, nickel-plated brass](/web/image/product.template/183892/image_128/%5B111997%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%206%20mm%2C%20nickel-plated%20brass?unique=4f7abc5)
|
Type number: N 74 |
3.18 € | |
![[111998] RIEGLER Angled fitting, Pipe exterior Ø 8 mm, nickel-plated brass](/web/image/product.template/183893/image_128/%5B111998%5D%20RIEGLER%20Angled%20fitting%2C%20Pipe%20exterior%20%C3%98%208%20mm%2C%20nickel-plated%20brass?unique=05c53c0)
|
Type number: N 75 |
4.37 € | |
