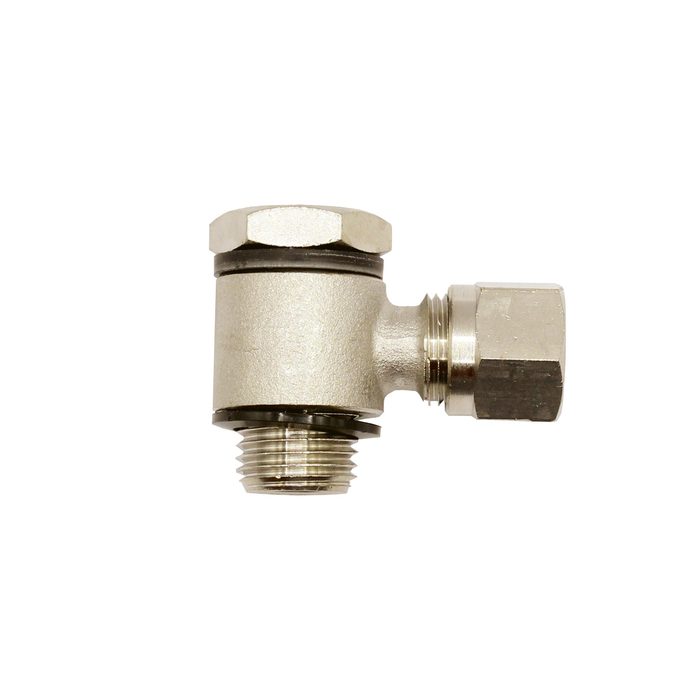

RIEGLER Pivoting angled fitting, G 1/4 o., Pipe exterior Ø 6 mm
Type number: N 83
EAN: 4047322162845
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Swivel elbow fitting, G 1/4 a., outer tube Ø 6 mm, SW 17, operating pressure max. 60 bar, temperature max. 150 °C, MS nickel-plated.
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Material | Nickel-plated brass |
| Thread | G 1/4 |
| SW 1 | 12 mm |
| SW | 17 mm |
| Tube outer Ø | 6 mm |
| L1 | 28.5 mm |
| L2 | 29.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
