RIEGLER Pivoting angled fitting, G 1/4 o., Pipe exterior Ø 8 mm
Type number: N 84
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Swivel elbow fitting made of nickel-plated brass, for pneumatic installation - type N 84
The RIEGLER swivel elbow union, G 1/4 a., pipe outer Ø 8 creates a permanent, metal-to-metal sealing pipe connection based on the proven cutting ring principle. The housing is made of nickel-plated brass. Designed for a maximum operating pressure of 60 bar. G 1/4 connection thread - suitable for common industry standards. Permanently tight - even with vibration and temperature fluctuations.
Field of application
Typical areas of application: Compressed air distribution, hydraulics and process technology.
| Temperature range max. | 150 °C |
| Max. operating pressure | 60 bar |
| Material | Nickel-plated brass |
| Thread | G 1/4 |
| SW 1 | 14 mm |
| SW | 17 mm |
| Tube outer Ø | 8 mm |
| L1 | 28 mm |
| L2 | 29.5 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[112005] RIEGLER Pivoting angled fitting, G 1/4 o., Pipe exterior Ø 6 mm](/web/image/product.template/183900/image_128/%5B112005%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20G%201-4%20o.%2C%20Pipe%20exterior%20%C3%98%206%20mm?unique=36c2b2d)
|
Type number: N 83 |
4.25 € | |
![[112003] RIEGLER Pivoting angled fitting, G 1/8 o., Pipe exterior Ø 6 mm](/web/image/product.template/183898/image_128/%5B112003%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20G%201-8%20o.%2C%20Pipe%20exterior%20%C3%98%206%20mm?unique=36c2b2d)
|
Type number: N 81 |
3.68 € | |

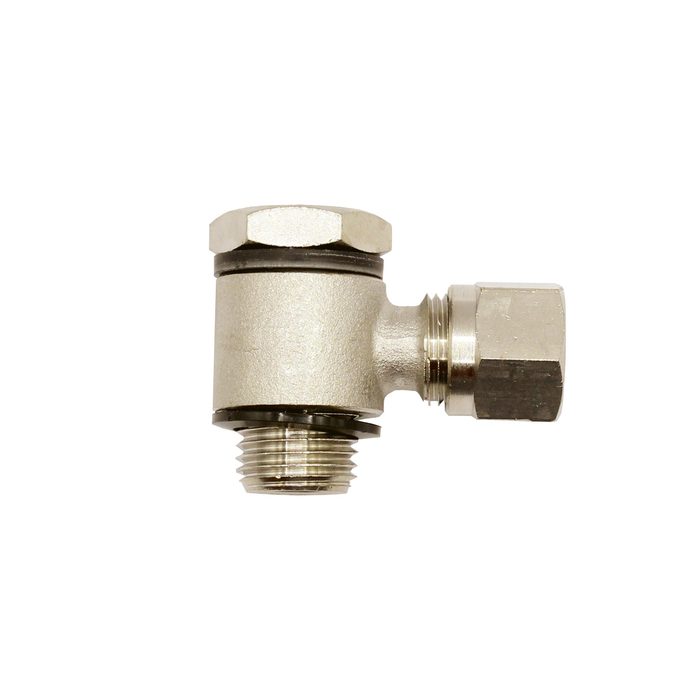

![[112004] RIEGLER Pivoting angled fitting, G 1/8 o., Pipe exterior Ø 8 mm](/web/image/product.template/183899/image_128/%5B112004%5D%20RIEGLER%20Pivoting%20angled%20fitting%2C%20G%201-8%20o.%2C%20Pipe%20exterior%20%C3%98%208%20mm?unique=36c2b2d)
|
Type number: N 82 |
3.92 € | |
