RIEGLER Flat seal, (NBR with aramid fibres), connection 3/4
Type number: TFD 34
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Flat gasket made of NBR with aramid fibers, for pipeline construction, 45385 - Type TFD 34
The RIEGLER flat gasket, (NBR with aramid fibers), for connection 3/4 connects pipes permanently and resiliently - particularly robust. The housing is made of NBR with aramid fibers. The temperature range is between -20 °C and 200 °C. Connection thread 45385 - suitable for common industry standards. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Material | NBR with aramid fibers |

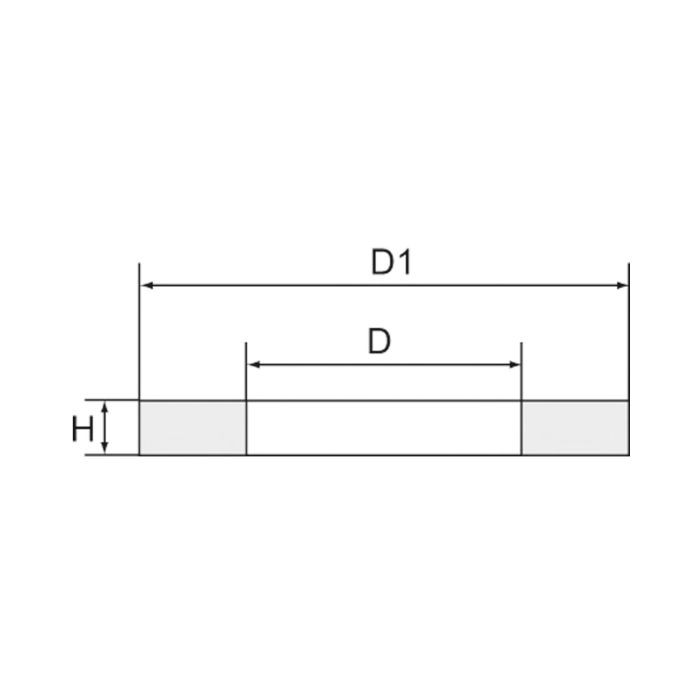

| D | 27 mm |
| H | 2 mm |
| D1 | 38 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | 45385 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113203] RIEGLER Flat seal, (NBR with aramid fibres), connection 1](/web/image/product.template/186104/image_128/%5B113203%5D%20RIEGLER%20Flat%20seal%2C%20%28NBR%20with%20aramid%20fibres%29%2C%20connection%201?unique=a9a72ea)
|
Type number: TFD 10 |
1.19 € | |
![[113205] RIEGLER Flat seal, (NBR with aramid fibres), connection 1 1/2](/web/image/product.template/186106/image_128/%5B113205%5D%20RIEGLER%20Flat%20seal%2C%20%28NBR%20with%20aramid%20fibres%29%2C%20connection%201%201-2?unique=f60a186)
|
Type number: TFD 112 |
1.23 € | |
![[113204] RIEGLER Flat seal, (NBR with aramid fibres), connection 1 1/4](/web/image/product.template/186105/image_128/%5B113204%5D%20RIEGLER%20Flat%20seal%2C%20%28NBR%20with%20aramid%20fibres%29%2C%20connection%201%201-4?unique=e040bd1)
|
Type number: TFD 114 |
1.08 € | |
![[113201] RIEGLER Flat seal, (NBR with aramid fibres), connection 1/2](/web/image/product.template/186102/image_128/%5B113201%5D%20RIEGLER%20Flat%20seal%2C%20%28NBR%20with%20aramid%20fibres%29%2C%20connection%201-2?unique=04a746f)
|
Type number: TFD 12 |
0.79 € | |
![[162262] RIEGLER Flat seal, (NBR with aramid fibres), connection 1/4](/web/image/product.template/216162/image_128/%5B162262%5D%20RIEGLER%20Flat%20seal%2C%20%28NBR%20with%20aramid%20fibres%29%2C%20connection%20%201-4?unique=925b49b)
|
Model Number: TFD 14-1 |
0.62 € | |

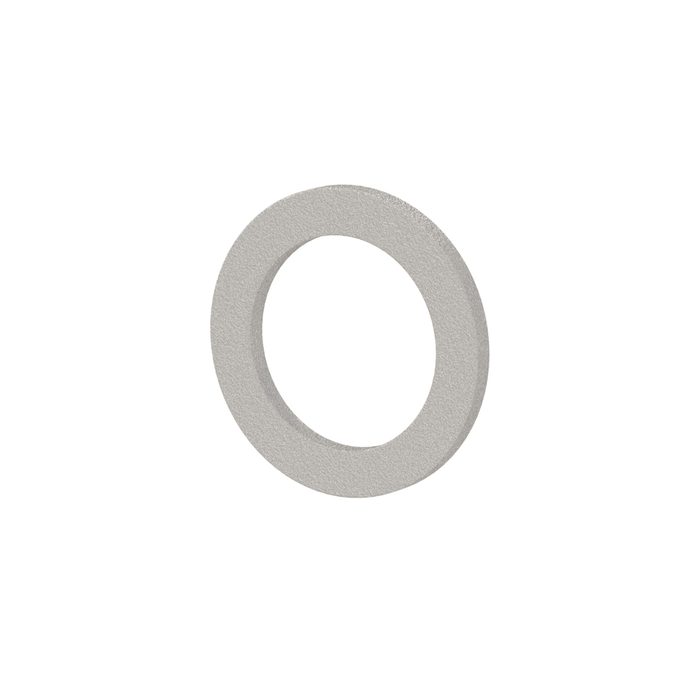

![[113206] RIEGLER Flat seal, (NBR with aramid fibres), connection 2](/web/image/product.template/186107/image_128/%5B113206%5D%20RIEGLER%20Flat%20seal%2C%20%28NBR%20with%20aramid%20fibres%29%2C%20connection%202?unique=4a2cd21)
|
