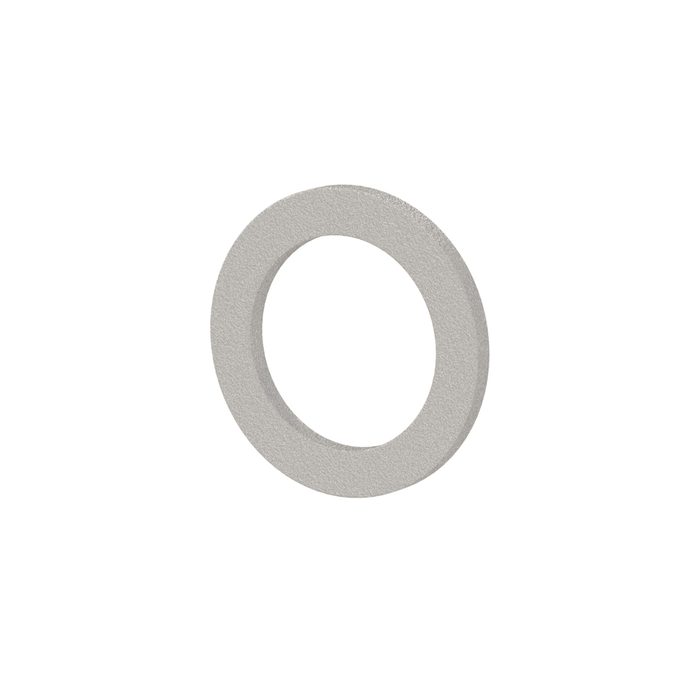

RIEGLER Flat seal, (NBR with aramid fibres), connection 1
Type number: TFD 10
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Flat gasket, (NBR with aramid fibers), for connection size (inch) 1, operating temperature -20 °C to 200 °C
| Temperature range min. | -20 °C |
| Temperature range max. | 200 °C |
| Material | NBR with aramid fibers |

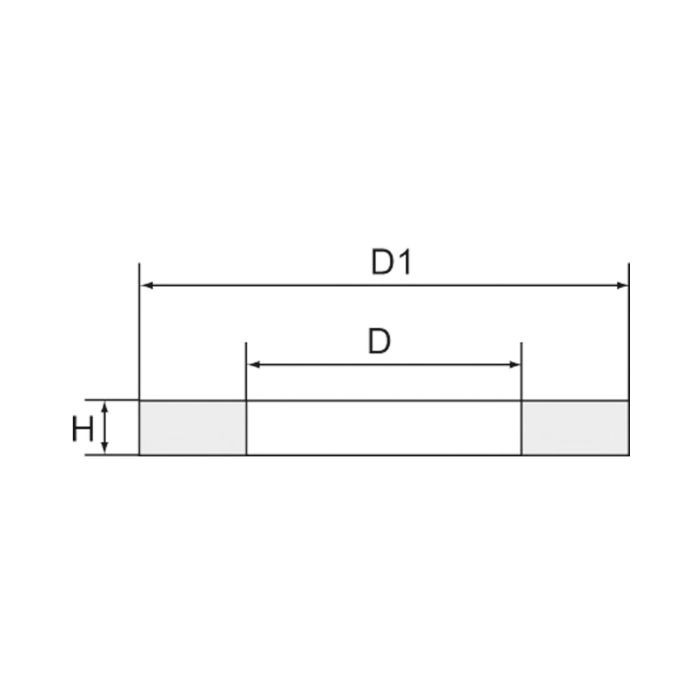

| D | 32 mm |
| H | 2 mm |
| D1 | 44 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | 1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
