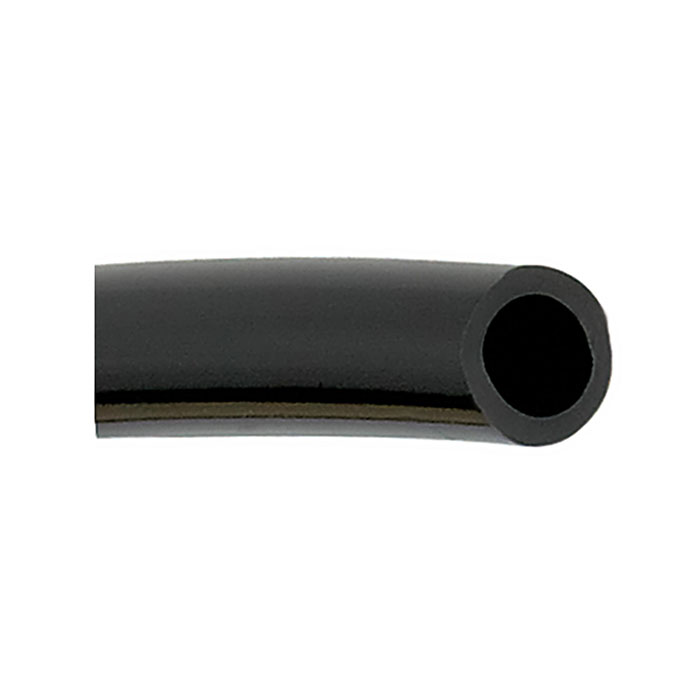

RIEGLER Anti-static hose (PU), black, Hose Ø 6x4, Roll of 25 m
Type number: 189.02
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Anti-static hose (PU), black, Temperature -40 °C to 70 °C, Hose Ø 6x4, PN at 26 °C/65 °C max. 6.21/3.1 bar, Roll of 25 m
| Temperature range min. | -40 °C |
| Temperature range max. | 70 °C |
| Discharge of charges | according to EIS Std. 541 |
| Specific contact resistance | 9.9x10<sup>9</sup> Ohm-cm |
| Surface resistance | 9.9x10<sup>9</sup> Ohm-cm |
| Outer hose Ø | 6 mm |
| Hose Ø inside | 4 mm |
| Roll length | 25 m |
| Bending radius min. | 12.7 mm |
| Working pressure at 25 °C | 6.21 bar |
| Working pressure at 65 °C | 3.1 bar |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113878] RIEGLER Anti-static hose (PU), black, Hose Ø 12x8, Roll of 25 m](/web/image/product.template/190001/image_128/%5B113878%5D%20RIEGLER%20Anti-static%20hose%20%28PU%29%2C%20black%2C%20Hose%20%C3%98%2012x8%2C%20Roll%20of%2025%20m?unique=a2682b4)
|
Type number: 189.04 |
165.79 € | |
![[113875] RIEGLER Anti-static hose (PU), black, Hose Ø 4x2.4, Roll of 25 m](/web/image/product.template/189995/image_128/%5B113875%5D%20RIEGLER%20Anti-static%20hose%20%28PU%29%2C%20black%2C%20Hose%20%C3%98%204x2.4%2C%20Roll%20of%2025%20m?unique=71b07a1)
|
Type number: 189.01 |
24.91 € | |
![[113877] RIEGLER Anti-static hose (PU), black, Hose Ø 8x5, Roll of 25 m](/web/image/product.template/189999/image_128/%5B113877%5D%20RIEGLER%20Anti-static%20hose%20%28PU%29%2C%20black%2C%20Hose%20%C3%98%208x5%2C%20Roll%20of%2025%20m?unique=07d2b44)
|
Type number: 189.03 |
75.03 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[113584] RIEGLER Hose cutter, for max. hose exterior Ø 17 mm](/web/image/product.template/189458/image_128/%5B113584%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2017%20mm?unique=25c73e3)
|
Type number: 259.555 |
18.75 € | |

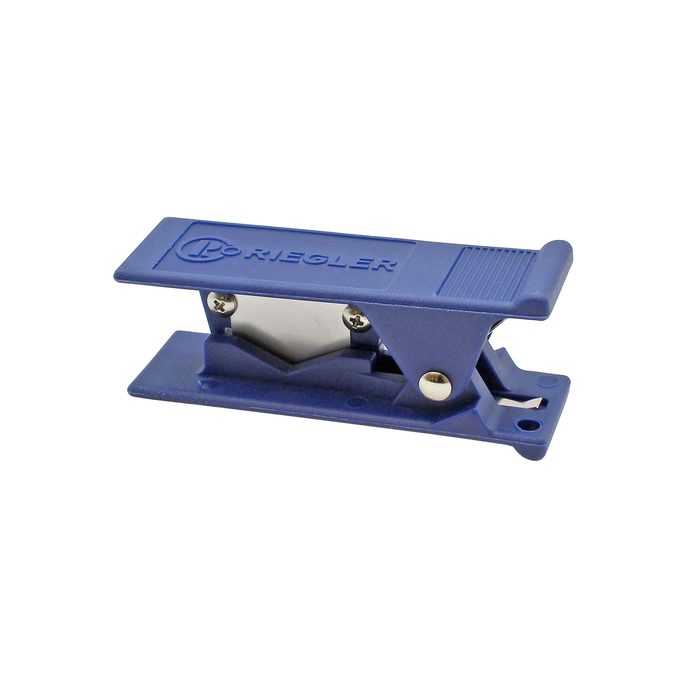

![[113588] RIEGLER Hose cutter, to outside diameter 14 mm](/web/image/product.template/189466/image_128/%5B113588%5D%20RIEGLER%20Hose%20cutter%2C%20to%20outside%20diameter%2014%20mm?unique=854a112)
|
Type number: 259.550 |
9.62 € | |
![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=6d74558)
|
Type number: 259.559 |
29.67 € | |
![[179288] RIEGLER Hose cutter, for max. hose exterior Ø 20 mm](/web/image/product.template/216419/image_128/%5B179288%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2020%20mm?unique=baba811)
|
Typennummer: SAS420 |
49.80 € | |
