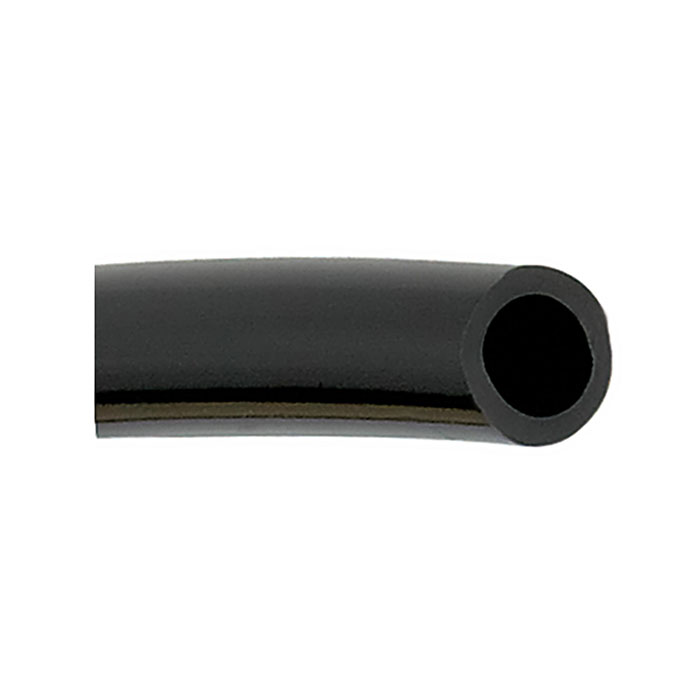

RIEGLER Anti-static hose (PU), black, Hose Ø 12x8, Roll of 25 m
Type number: 189.04
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Antistatic hose (PU) for compressed air distribution - Type 189.04
The RIEGLER antistatic hose (PU), black, hose ø 12x8, roll of 25 m conducts compressed air flexibly and reliably from the compressor to the consumer. The temperature range is between -40 °C and 70 °C. Hose Ø 8 mm (inside) / 12 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -40 °C |
| Temperature range max. | 70 °C |
| Discharge of charges | according to EIS Std. 541 |
| Specific contact resistance | 9.9x10<sup>9</sup> Ohm-cm |
| Surface resistance | 9.9x10<sup>9</sup> Ohm-cm |
| Outer hose Ø | 12 mm |
| Hose Ø inside | 8 mm |
| Roll length | 25 m |
| Bending radius min. | 28.6 mm |
| Working pressure at 25 °C | 6.21 bar |
| Working pressure at 65 °C | 3.1 bar |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113875] RIEGLER Anti-static hose (PU), black, Hose Ø 4x2.4, Roll of 25 m](/web/image/product.template/189995/image_128/%5B113875%5D%20RIEGLER%20Anti-static%20hose%20%28PU%29%2C%20black%2C%20Hose%20%C3%98%204x2.4%2C%20Roll%20of%2025%20m?unique=d680615)
|
Type number: 189.01 |
24.60 € | |
![[113876] RIEGLER Anti-static hose (PU), black, Hose Ø 6x4, Roll of 25 m](/web/image/product.template/189997/image_128/%5B113876%5D%20RIEGLER%20Anti-static%20hose%20%28PU%29%2C%20black%2C%20Hose%20%C3%98%206x4%2C%20Roll%20of%2025%20m?unique=1465136)
|
Type number: 189.02 |
44.03 € | |
![[113877] RIEGLER Anti-static hose (PU), black, Hose Ø 8x5, Roll of 25 m](/web/image/product.template/189999/image_128/%5B113877%5D%20RIEGLER%20Anti-static%20hose%20%28PU%29%2C%20black%2C%20Hose%20%C3%98%208x5%2C%20Roll%20of%2025%20m?unique=3848a7e)
|
Type number: 189.03 |
74.17 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

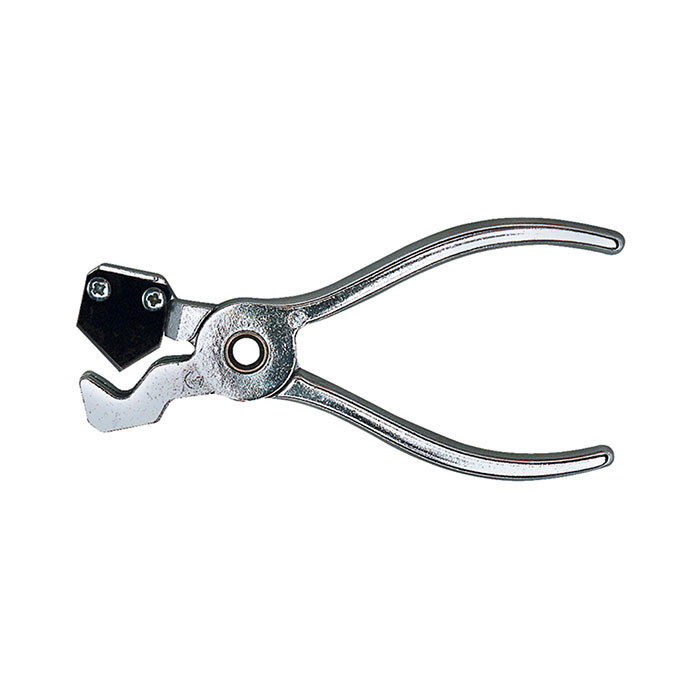

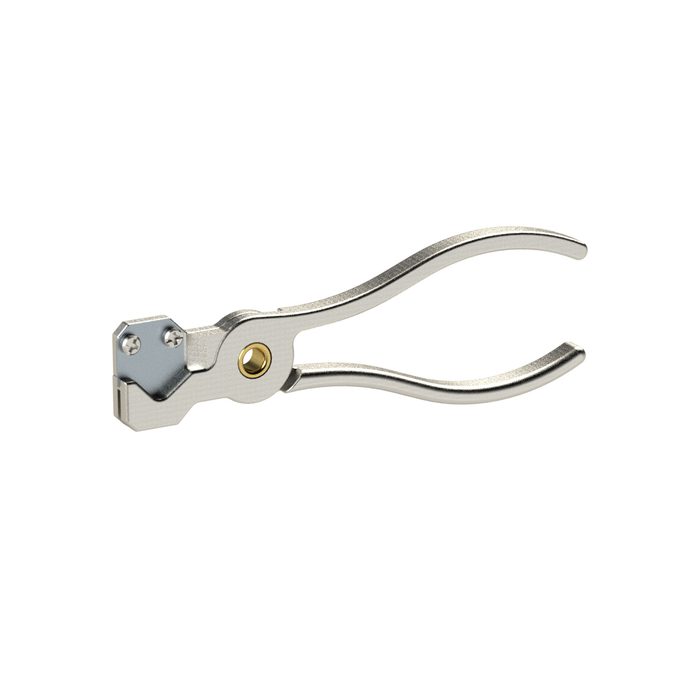

![[113584] RIEGLER Hose cutter, for max. hose exterior Ø 17 mm](/web/image/product.template/189458/image_128/%5B113584%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2017%20mm?unique=06bfcb0)
|
Type number: 259.555 |
18.75 € | |

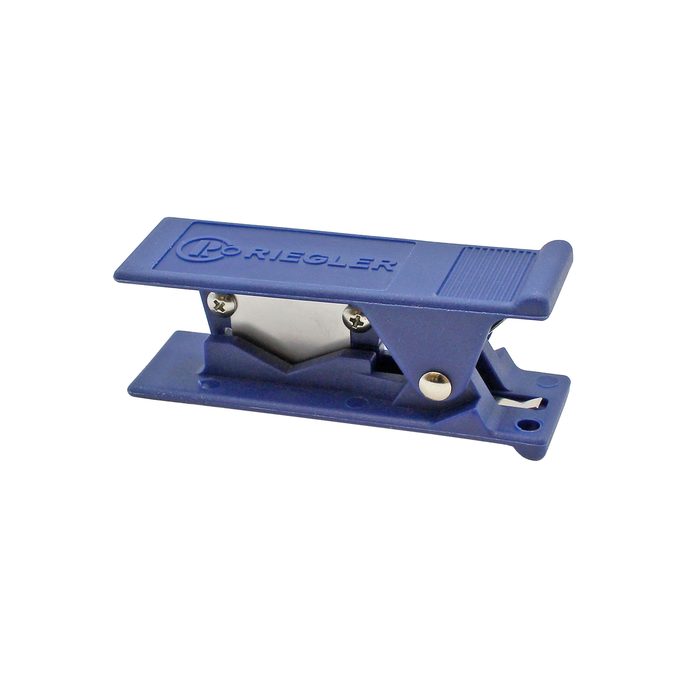

![[113588] RIEGLER Hose cutter, to outside diameter 14 mm](/web/image/product.template/189466/image_128/%5B113588%5D%20RIEGLER%20Hose%20cutter%2C%20to%20outside%20diameter%2014%20mm?unique=adf7c1a)
|
Type number: 259.550 |
9.48 € | |
![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=3da0352)
|
Type number: 259.559 |
29.67 € | |

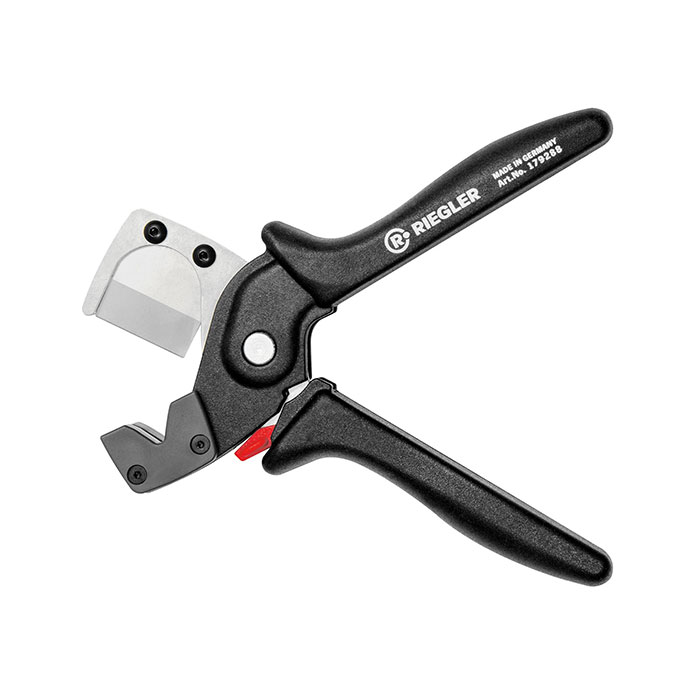

![[179288] RIEGLER Hose cutter, for max. hose exterior Ø 20 mm](/web/image/product.template/216419/image_128/%5B179288%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2020%20mm?unique=6d5cc86)
|
