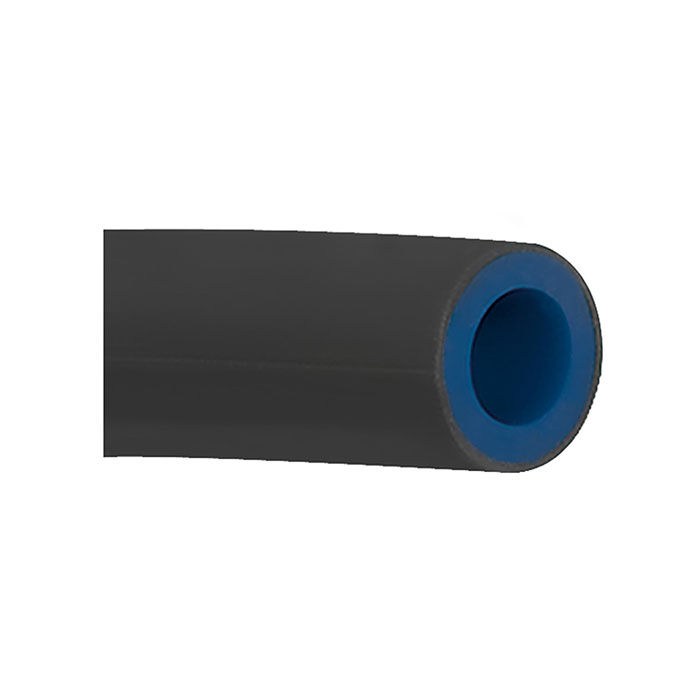

RIEGLER Spark erosion protected PU hose, Hose Ø 8x5, Roll of 25 m
Type number: 189.51
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spark erosion protected PU hose for compressed air distribution, max. 12 bar - Type 189.51
The RIEGLER spark erosion protected PU hose, hose ø 8x5, roll of 25 m conducts compressed air flexibly and reliably from the compressor to the consumer. The operating pressure range is 5 bar to 12 bar. The temperature range is between -40 °C and 70 °C. Hose Ø 5 mm (inside) / 8 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -40 °C |
| Temperature range max. | 70 °C |
| Working pressure min. | 5 bar |
| Working pressure max. | 12 bar |
| Colour | black |
| Outer hose Ø | 8 mm |
| Hose Ø inside | 5 mm |
| Roll length | 25 m |
| Bending radius min. | 19 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[113881] RIEGLER Spark erosion protected PU hose, Hose Ø 12x8, Roll of 25 m](/web/image/product.template/190007/image_128/%5B113881%5D%20RIEGLER%20Spark%20erosion%20protected%20PU%20hose%2C%20Hose%20%C3%98%2012x8%2C%20Roll%20of%2025%20m?unique=b295449)
|
Type number: 189.52 |
184.84 € | |
![[113879] RIEGLER Spark erosion protected PU hose, Hose Ø 6x4, Roll of 25 m](/web/image/product.template/190003/image_128/%5B113879%5D%20RIEGLER%20Spark%20erosion%20protected%20PU%20hose%2C%20Hose%20%C3%98%206x4%2C%20Roll%20of%2025%20m?unique=534ef3d)
|
Type number: 189.50 |
90.44 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

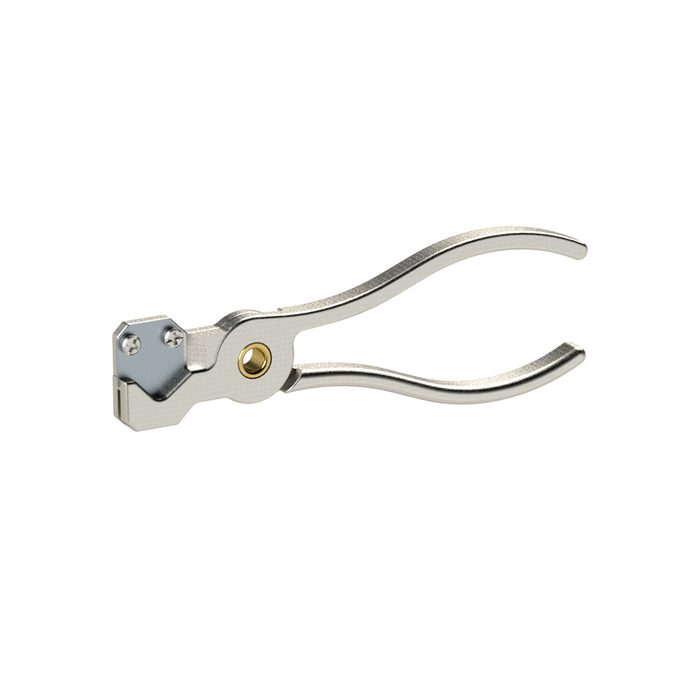

![[113584] RIEGLER Hose cutter, for max. hose exterior Ø 17 mm](/web/image/product.template/189458/image_128/%5B113584%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2017%20mm?unique=cc74cbc)
|
Type number: 259.555 |
18.75 € | |

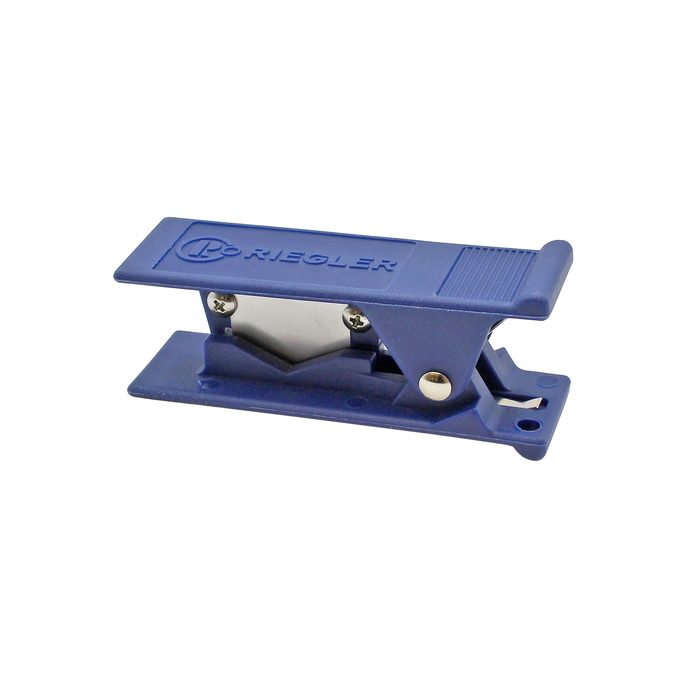

![[113588] RIEGLER Hose cutter, to outside diameter 14 mm](/web/image/product.template/189466/image_128/%5B113588%5D%20RIEGLER%20Hose%20cutter%2C%20to%20outside%20diameter%2014%20mm?unique=76e8758)
|
Type number: 259.550 |
9.48 € | |
![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=0954c40)
|
Type number: 259.559 |
29.67 € | |

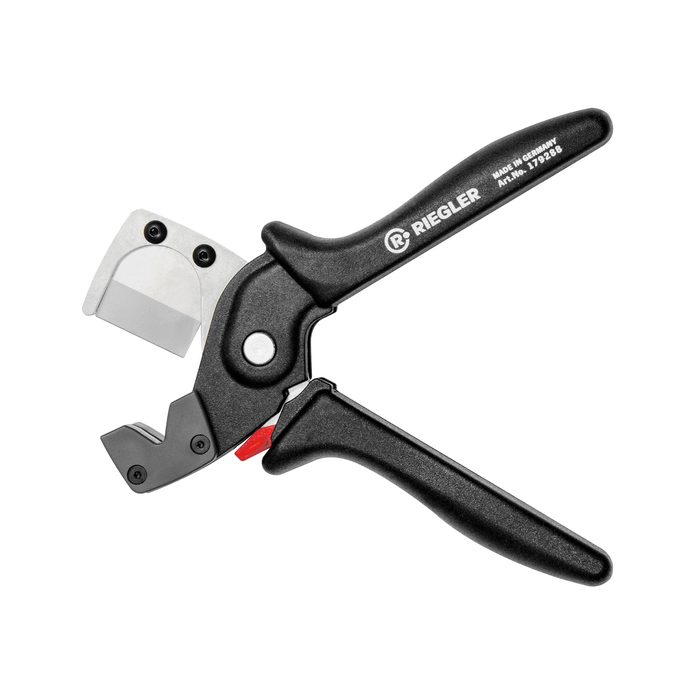

![[179288] RIEGLER Hose cutter, for max. hose exterior Ø 20 mm](/web/image/product.template/216419/image_128/%5B179288%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2020%20mm?unique=58f0ec3)
|
