RIEGLER Spark erosion protected PU hose, Hose Ø 12x8, Roll of 25 m
Type number: 189.52
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Spark erosion protected PU hose for compressed air distribution, max. 12 bar - Type 189.52
The RIEGLER spark erosion protected PU hose, hose ø 12x8, roll of 25 m conducts compressed air flexibly and reliably from the compressor to the consumer. The operating pressure range is 5 bar to 12 bar. The temperature range is between -40 °C and 70 °C. Hose Ø 8 mm (inside) / 12 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -40 °C |
| Temperature range max. | 70 °C |
| Working pressure min. | 5 bar |
| Working pressure max. | 12 bar |
| Colour | black |
| Outer hose Ø | 12 mm |
| Hose Ø inside | 8 mm |
| Roll length | 25 m |
| Bending radius min. | 28.6 mm |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

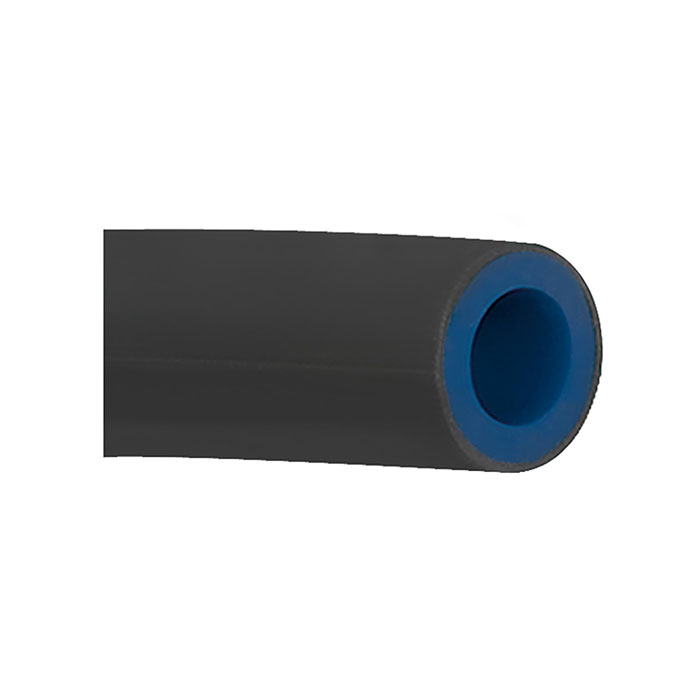

![[113879] RIEGLER Spark erosion protected PU hose, Hose Ø 6x4, Roll of 25 m](/web/image/product.template/190003/image_128/%5B113879%5D%20RIEGLER%20Spark%20erosion%20protected%20PU%20hose%2C%20Hose%20%C3%98%206x4%2C%20Roll%20of%2025%20m?unique=534ef3d)
|
