RIEGLER Suction/pressure hose, Lightweight design, Hose Ø 29.6x25
Type number: SDL-025
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Product no. :
113904EAN :
4047322400657Category :
Suction Hoses & Discharge HosesWeight :
13.50 kgRIEGLER Suction/pressure hose for compressed air distribution - type SDL-025

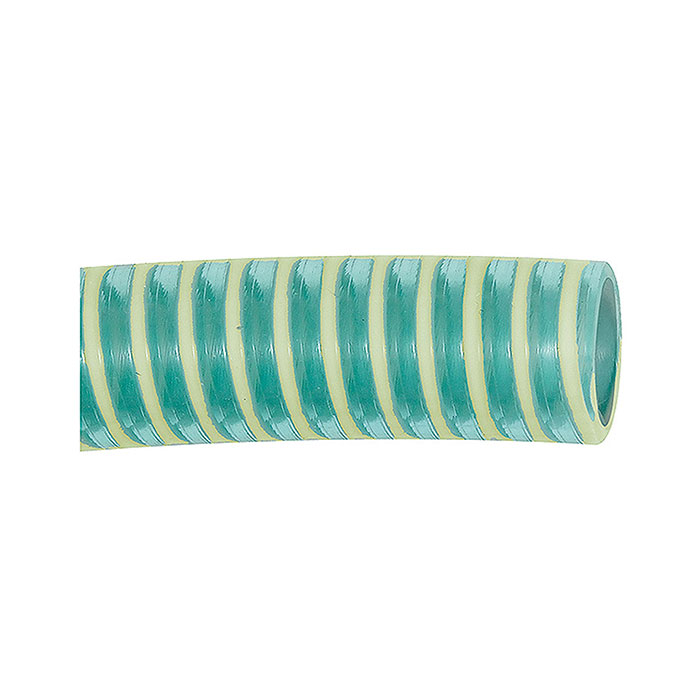

The RIEGLER suction/pressure hose, lightweight design, hose ø 29.6x25 mm, flexibly and reliably conducts compressed air from the compressor to the consumer. The temperature range extends between -15 °C and 60 °C. Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -15 °C |
| Temperature range max. | 60 °C |
| Hose Ø inside | 25 mm |
| Max. operating pressure at 23 °C | 5 bar |
| Roll length | 50 m |
| Bending radius min. | 105 mm |
| Wall thickness | 2.3 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
