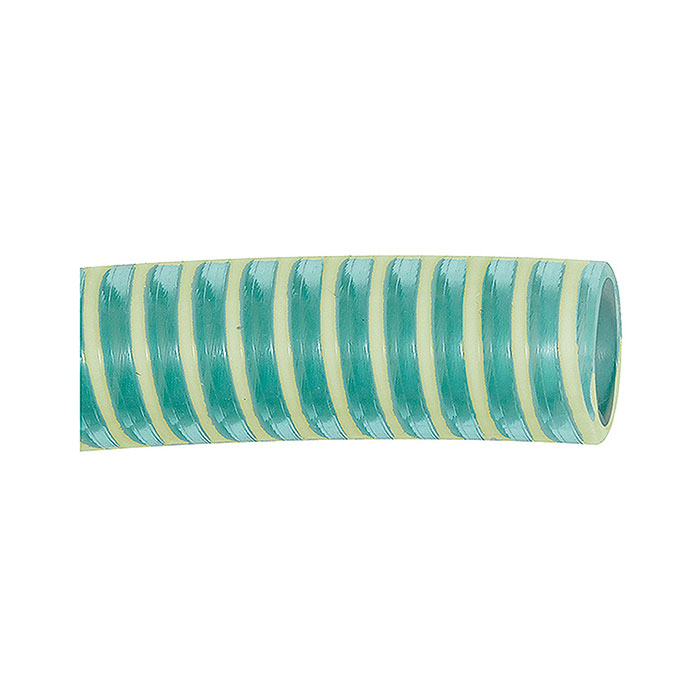

RIEGLER Suction/pressure hose, Lightweight design, Hose Ø 36.8x32, Roll á 50 m
Type number: SDL-032
EAN: 4047322400664
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Suction and pressure hose, light version, temp. -15 °C to 60 °C, hose Ø 36.8x32 mm, PN at 23 °C max 5 bar, roll à 50 m
| Temperature range min. | -15 °C |
| Temperature range max. | 60 °C |
| Hose Ø inside | 32 mm |
| Max. operating pressure at 23 °C | 5 bar |
| Roll length | 50 m |
| Bending radius min. | 135 mm |
| Wall thickness | 2.4 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | FLEX |
