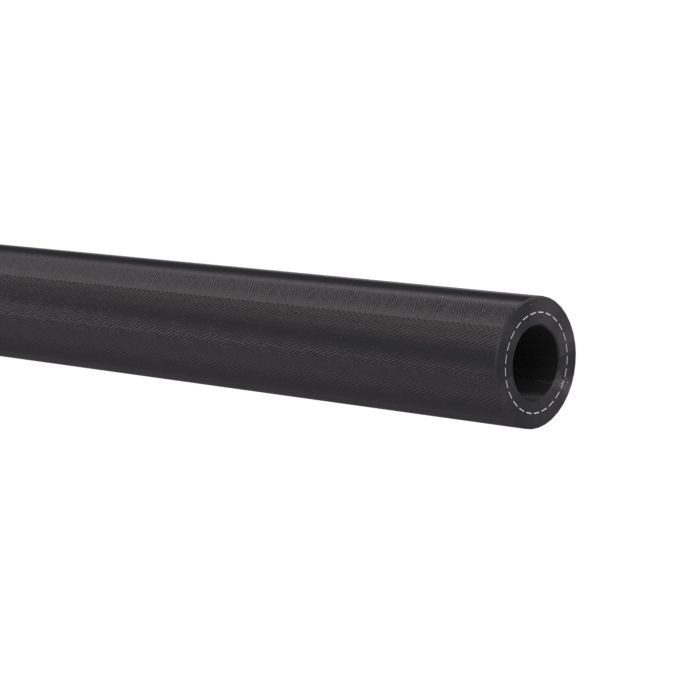

RIEGLER Compressed air and water hose NR / SBR, black, Hose Ø 17x9, 50 m
Type number: 180/9
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Compressed air and water hose NR/SBR, black, temperature range -20 °C to 60 °C, hose ø 17x9, PN max. 20 bar, roll of 50 m
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Max. operating pressure | 20 bar |
| Soul | NR/SBR, black |
| Inlays | Textile |
| Outer ceiling | NR/EPDM black |
| Colour | black |
| Outer hose Ø | 17 mm |
| Hose Ø inside | 9 mm |
| Roll length | 50 m |
| Bending radius min. | 72 mm |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

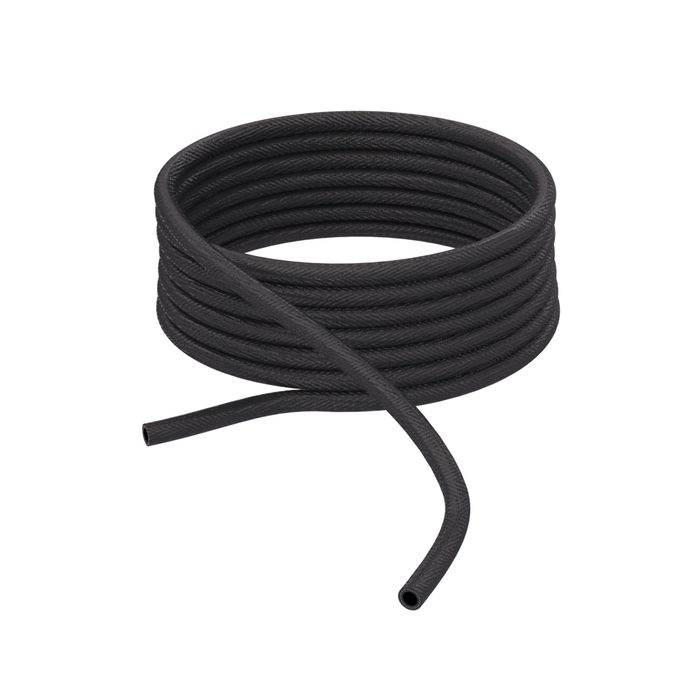

![[114586] RIEGLER Compressed air and water hose NR / SBR, black, Hose Ø 13x6, 50 m](/web/image/product.template/199162/image_128/%5B114586%5D%20RIEGLER%20Compressed%20air%20and%20water%20hose%20NR%20-%20SBR%2C%20black%2C%20Hose%20%C3%98%2013x6%2C%2050%20m?unique=7c3497e)
|
Type number: 180/6 |
206.32 € | |
![[114588] RIEGLER Compressed air and water hose NR / SBR, black, Hose Ø 23x13, 50 m](/web/image/product.template/199164/image_128/%5B114588%5D%20RIEGLER%20Compressed%20air%20and%20water%20hose%20NR%20-%20SBR%2C%20black%2C%20Hose%20%C3%98%2023x13%2C%2050%20m?unique=ccc0be7)
|
Type number: 180/4 |
319.25 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[113584] RIEGLER Hose cutter, for max. hose exterior Ø 17 mm](/web/image/product.template/189458/image_128/%5B113584%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2017%20mm?unique=7d2e074)
|
Type number: 259.555 |
18.75 € | |
![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=dcbf963)
|
Type number: 259.559 |
29.67 € | |

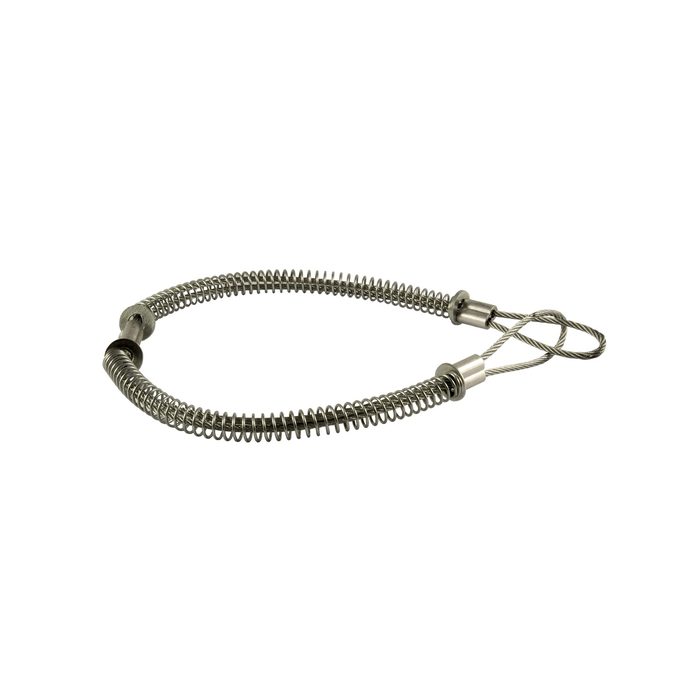

![[143282] RIEGLER Hose security cable, For tube O.D. 13 - 35 mm, Galvanised steel,](/web/image/product.template/210395/image_128/%5B143282%5D%20RIEGLER%20Hose%20security%20cable%2C%20For%20tube%20O.D.%2013%20-%2035%20mm%2C%20Galvanised%20steel%2C?unique=7d5417d)
|
