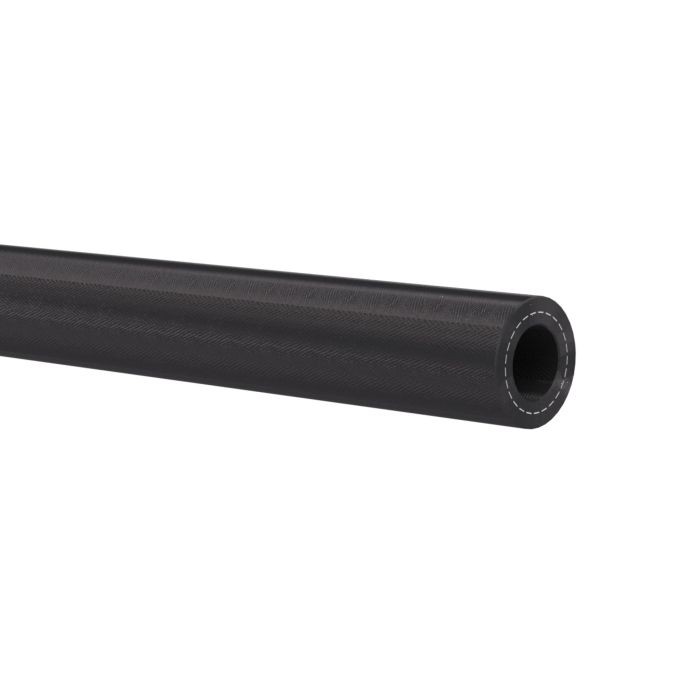

RIEGLER Compressed air and water hose NR / SBR, black, Hose Ø 23x13, 50 m
Type number: 180/4
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Compressed air and water hose NR/SBR for compressed air distribution, max. 20 bar - type 180/4
The RIEGLER compressed air and water hose NR/SBR, black, Schl.-ø 23x13, 50m conveys compressed air flexibly and reliably from the compressor to the consumer. Designed for a maximum operating pressure of 20 bar. The temperature range is between -20 °C and 60 °C. Hose Ø 13 mm (inside) / 23 mm (outside). Flexible, pressure-resistant and suitable for various media.
Field of application
Typical areas of application: Compressed air distribution in workshops and production.
| Temperature range min. | -20 °C |
| Temperature range max. | 60 °C |
| Max. operating pressure | 20 bar |
| Soul | NR/SBR, black |
| Inlays | Textile |
| Outer ceiling | NR/EPDM black |
| Colour | black |
| Outer hose Ø | 23 mm |
| Hose Ø inside | 13 mm |
| Roll length | 50 m |
| Bending radius min. | 104 mm |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[114586] RIEGLER Compressed air and water hose NR / SBR, black, Hose Ø 13x6, 50 m](/web/image/product.template/199162/image_128/%5B114586%5D%20RIEGLER%20Compressed%20air%20and%20water%20hose%20NR%20-%20SBR%2C%20black%2C%20Hose%20%C3%98%2013x6%2C%2050%20m?unique=b88fcb7)
|
Type number: 180/6 |
203.88 € | |

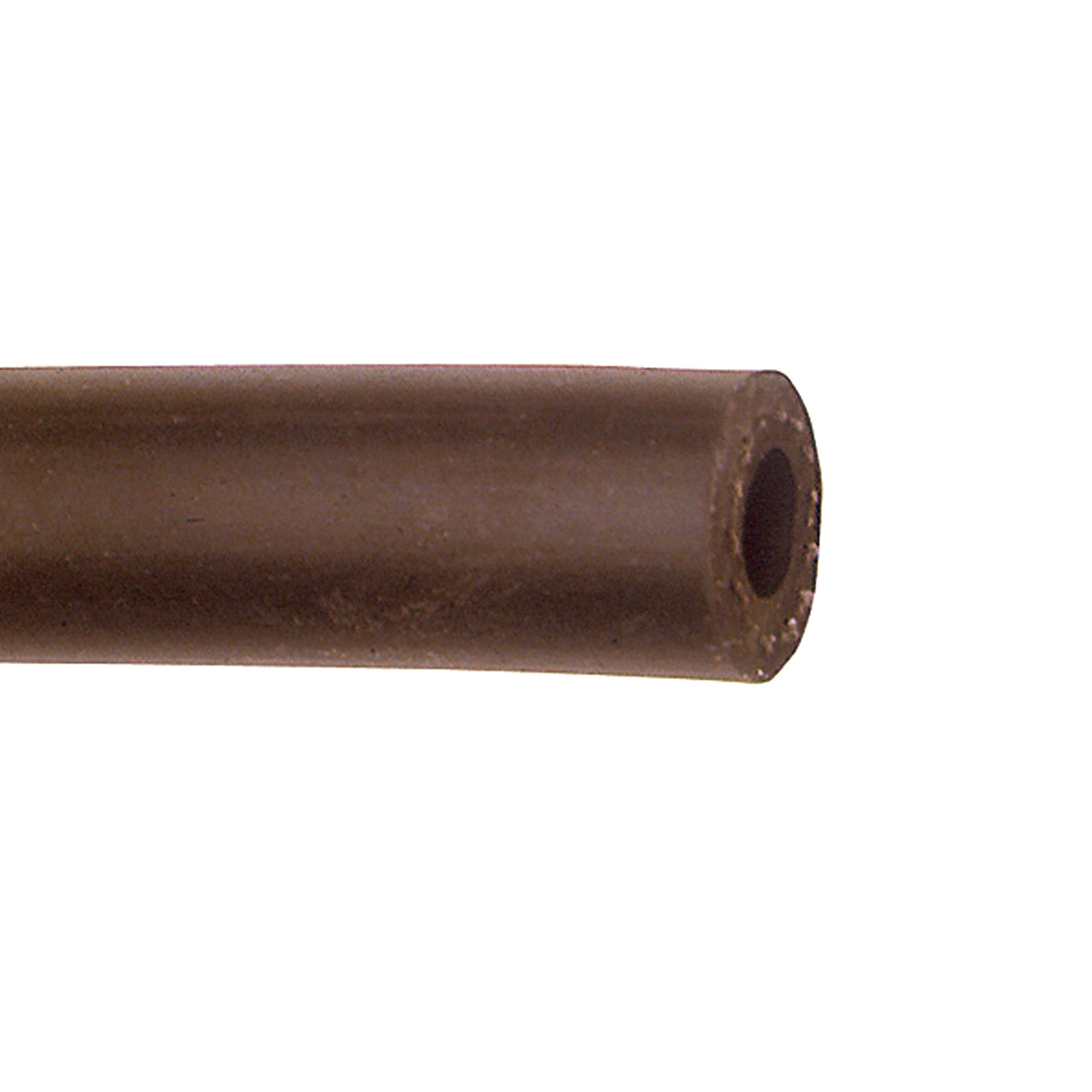

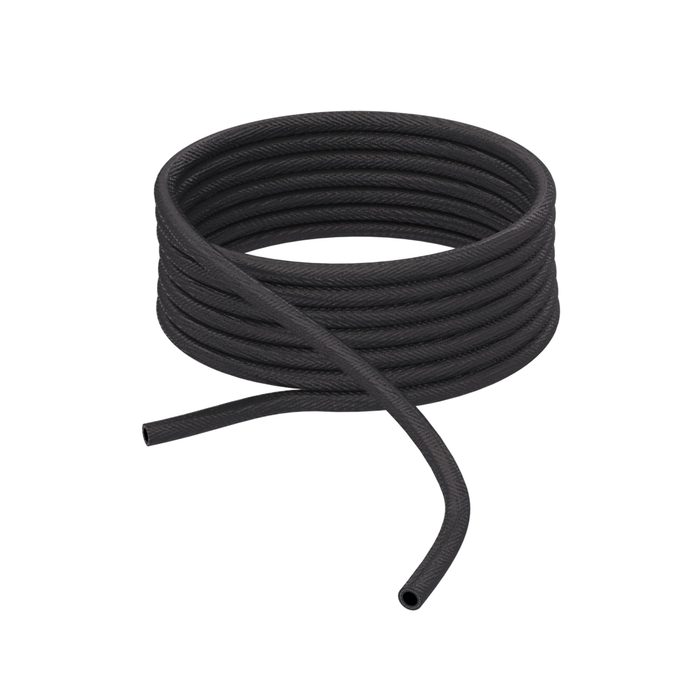

![[114587] RIEGLER Compressed air and water hose NR / SBR, black, Hose Ø 17x9, 50 m](/web/image/product.template/199163/image_128/%5B114587%5D%20RIEGLER%20Compressed%20air%20and%20water%20hose%20NR%20-%20SBR%2C%20black%2C%20Hose%20%C3%98%2017x9%2C%2050%20m?unique=5aaea8c)
|
Type number: 180/9 |
225.30 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[113585] RIEGLER Hose cutter, for max. hose exterior Ø 26 mm](/web/image/product.template/189460/image_128/%5B113585%5D%20RIEGLER%20Hose%20cutter%2C%20for%20max.%20hose%20exterior%20%C3%98%2026%20mm?unique=0954c40)
|
Type number: 259.559 |
29.67 € | |

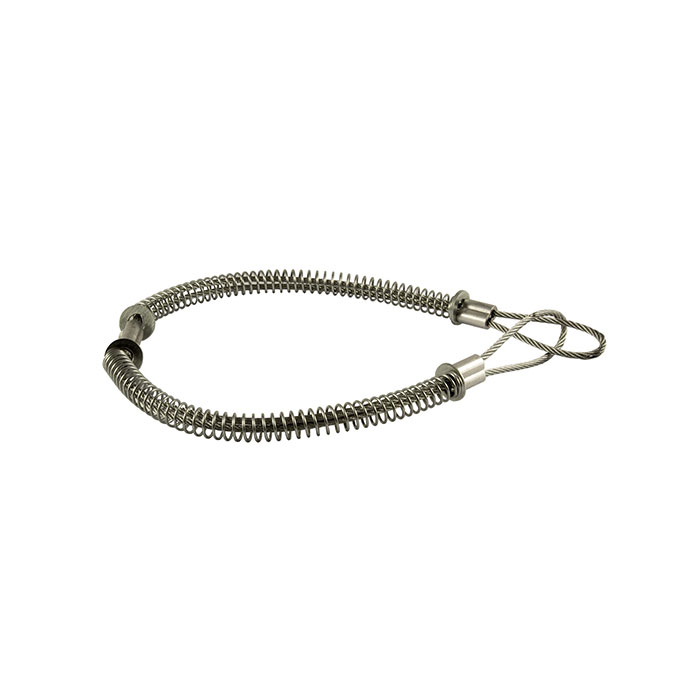

![[143282] RIEGLER Hose security cable, For tube O.D. 13 - 35 mm, Galvanised steel,](/web/image/product.template/210395/image_128/%5B143282%5D%20RIEGLER%20Hose%20security%20cable%2C%20For%20tube%20O.D.%2013%20-%2035%20mm%2C%20Galvanised%20steel%2C?unique=aea5a23)
|
