RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 20, G 1/4
Type number: 12.EM.63020
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years

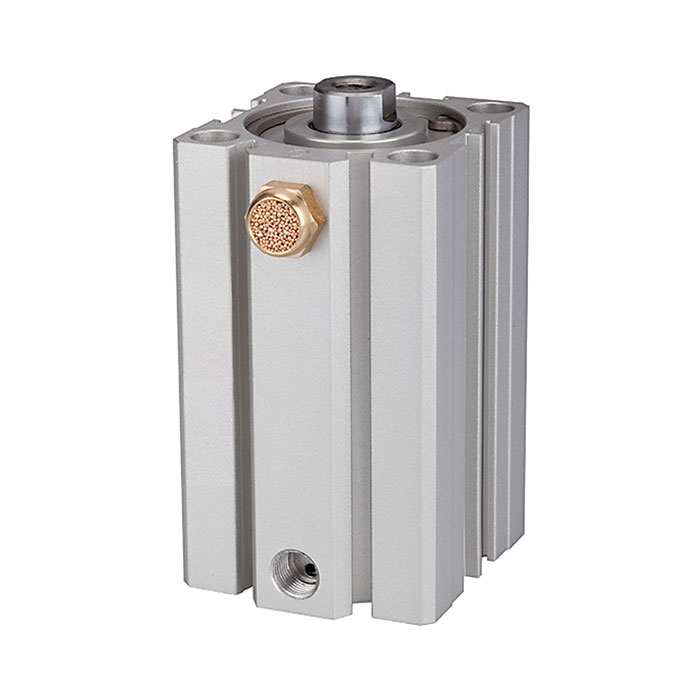

RIEGLER Short-stroke cylinder "ASQ" single-acting for automation technology, max. 10 bar, G 1/4 - Type 12.EM.63020
The RIEGLER short-stroke cylinder "ASQ" single-acting, piston Ø 63, stroke 20, G 1/4 offers compact pneumatic drive solutions for confined installation spaces. with NBR seals. The operating pressure range is 2 bar to 10 bar. The temperature range is between -20 °C and 70 °C. G 1/4 connection thread - suitable for common industry standards. With piston Ø 63 mm, stroke 20 mm, hard chrome-plated steel piston rod - for powerful linear actuator solutions. Space-saving design for confined installation spaces.
Field of application
Typical areas of application: Compact systems, special machine construction and handling systems.
| Temperature range min. | -20 °C |
| Temperature range max. | 70 °C |
| Sealing material | NBR |
| Series | ASQ series |
| Working pressure min. | 2 bar |
| Working pressure max. | 10 bar |
| Pipe | Aluminum |
| Piston Ø | 63 mm |
| Design | 6 |
| Function | single-acting |
| Stroke | 20 mm |
| Piston rod Ø | 20 mm |
| Piston rods IG | M10x1.5 |
| Connection | G 1/4 |
| Piston rod | Steel, hard chrome-plated |
| Piston | Aluminum |
| Class name | EASY |
| Magnet | with magnet |
| Starting position | retracted without pressure |
| Damping | without adjustable damping |
| Thread piston rod | Internal thread on the piston rod |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[115201] RIEGLER Short stroke cyl., single-acting, Piston Ø 50, Stroke 20, G 1/4](/web/image/product.template/198748/image_128/%5B115201%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2050%2C%20Stroke%2020%2C%20G%201-4?unique=da8f688)
|
Type number: 12.EM.50020 |
61.68 € | |
![[115205] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 10, G 1/4](/web/image/product.template/198752/image_128/%5B115205%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2010%2C%20G%201-4?unique=f5d2bfa)
|
Type number: 12.EM.63010 |
76.39 € | |
![[115206] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 15, G 1/4](/web/image/product.template/198753/image_128/%5B115206%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2015%2C%20G%201-4?unique=56100bf)
|
Type number: 12.EM.63015 |
77.25 € | |
![[115208] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 25, G 1/4](/web/image/product.template/198755/image_128/%5B115208%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2025%2C%20G%201-4?unique=1a3bdd4)
|
Type number: 12.EM.63025 |
79.02 € | |
![[115209] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 30, G 1/4](/web/image/product.template/198756/image_128/%5B115209%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%2030%2C%20G%201-4?unique=fd69de4)
|
Type number: 12.EM.63030 |
79.90 € | |
![[115204] RIEGLER Short stroke cyl., single-acting, Piston Ø 63, Stroke 5, G 1/4](/web/image/product.template/198751/image_128/%5B115204%5D%20RIEGLER%20Short%20stroke%20cyl.%2C%20single-acting%2C%20Piston%20%C3%98%2063%2C%20Stroke%205%2C%20G%201-4?unique=97a1e8c)
|
Type number: 12.EM.63005 |
75.53 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[115528] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, REED sensor](/web/image/product.template/200287/image_128/%5B115528%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20REED%20sensor?unique=d559558)
|
Type number: 235.101 |
9.25 € | |
![[115529] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200288/image_128/%5B115529%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=cac9c66)
|
Type number: 235.102 |
21.25 € | |
![[115530] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200289/image_128/%5B115530%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=8510a5f)
|
Type number: 235.103 |
18.86 € | |
![[115531] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200290/image_128/%5B115531%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=17a350f)
|
Type number: 235.104 |
21.25 € | |
![[115532] RIEGLER Sensor »CS1« for short stroke cylinder »ACQ« / »ASQ«, HALL sensor](/web/image/product.template/200291/image_128/%5B115532%5D%20RIEGLER%20Sensor%20%C2%BBCS1%C2%AB%20for%20short%20stroke%20cylinder%20%C2%BBACQ%C2%AB%20-%20%C2%BBASQ%C2%AB%2C%20HALL%20sensor?unique=5c57695)
|
Type number: 235.105 |
18.86 € | |
![[115873] RIEGLER Foot fastening »LB« for short stroke cylinder, Piston Ø 63](/web/image/product.template/200606/image_128/%5B115873%5D%20RIEGLER%20Foot%20fastening%20%C2%BBLB%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2063?unique=12aee8a)
|
Type number: 437.507 |
6.64 € | |

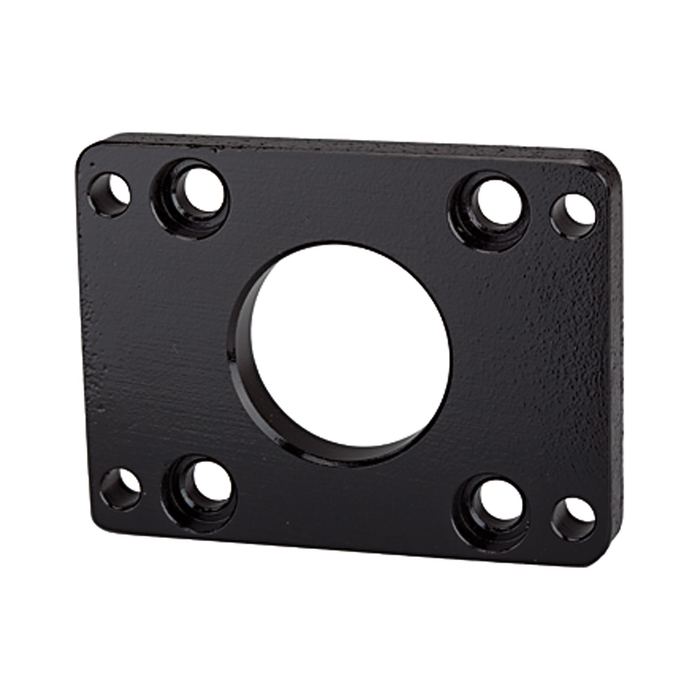

![[115883] RIEGLER Flange fastening »FA« for short stroke cylinder, Piston Ø 63](/web/image/product.template/200616/image_128/%5B115883%5D%20RIEGLER%20Flange%20fastening%20%C2%BBFA%C2%AB%20for%20short%20stroke%20cylinder%2C%20Piston%20%C3%98%2063?unique=0939a40)
|
Type number: 437.517 |
9.59 € | |

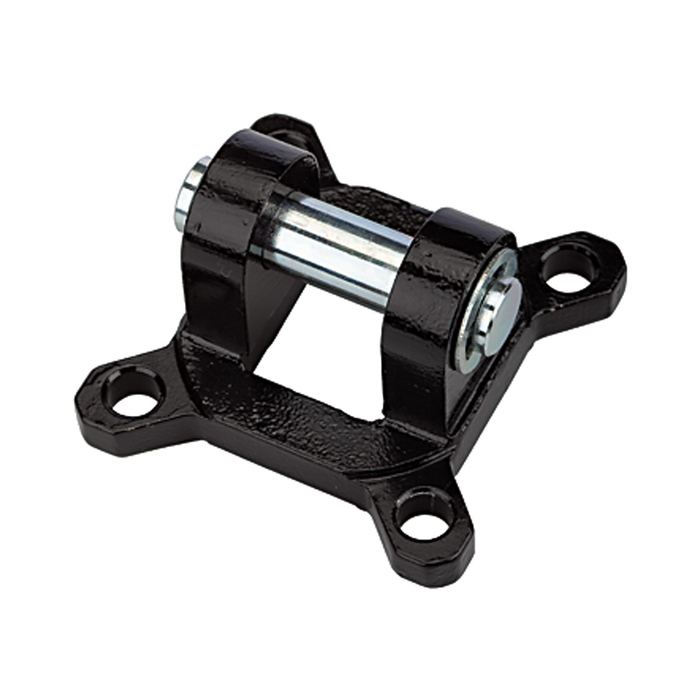

![[115893] RIEGLER Pivoting fork fastening »CB« for short stroke cyl., Piston Ø 63](/web/image/product.template/200626/image_128/%5B115893%5D%20RIEGLER%20Pivoting%20fork%20fastening%20%C2%BBCB%C2%AB%20for%20short%20stroke%20cyl.%2C%20Piston%20%C3%98%2063?unique=b911f4e)
|
