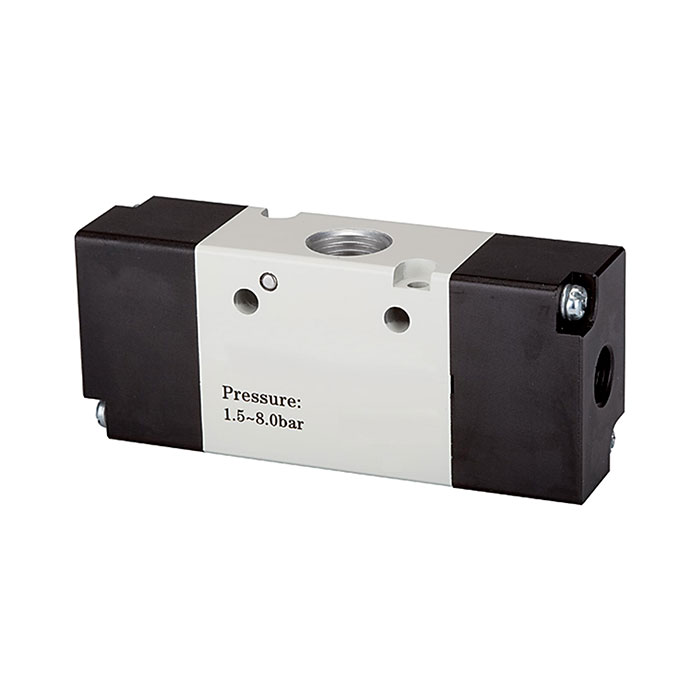

RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 1/4
Type number: 516.3003
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3/2-way valve, Pneumatic, »3A«, bistable, G 1/4, Operating pressure 1.5 - 8 bar, Temperature range max. 70 °C
| Temperature range max. | 70 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Operating pressure min. | 1.5 bar |
| Max. operating pressure | 8 bar |
| Pilot air connection | G 1/8 |
| Valve body | Aluminum alloy |
| Flow rate | 850 l/min |
| Function | 3/2 |
| Actuation | bistable |

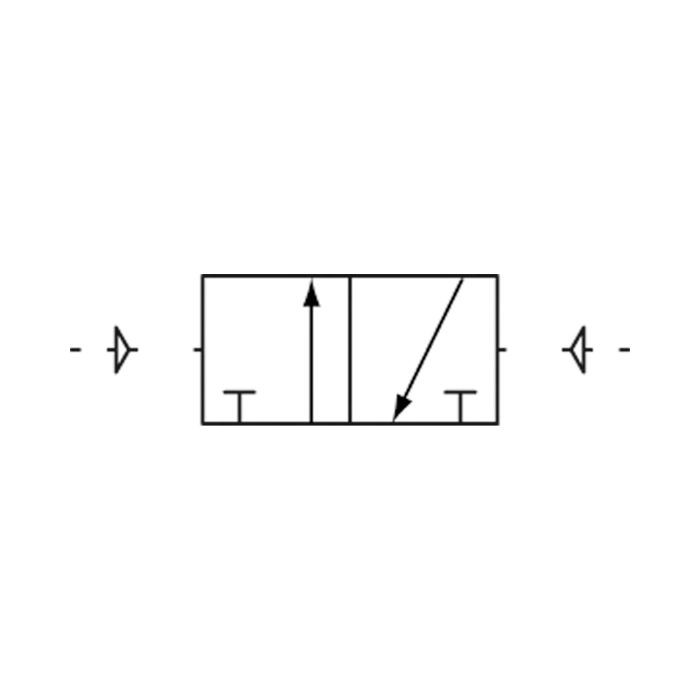

| Symbol | 26 |
| BG | 200 |
| Venting connection | G 1/4 |
| Connection | G 1/4 |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[116050] RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 1/4](/web/image/product.template/200783/image_128/%5B116050%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB3A%C2%AB%2C%20bistable%2C%20G%201-4?unique=204775e)
|
Type number: 516.3004 |
37.28 € | |
![[116047] RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 1/8](/web/image/product.template/200780/image_128/%5B116047%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB3A%C2%AB%2C%20bistable%2C%20G%201-8?unique=79ca2ce)
|
Type number: 516.3001 |
29.32 € | |
![[116048] RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 1/8](/web/image/product.template/200781/image_128/%5B116048%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB3A%C2%AB%2C%20bistable%2C%20G%201-8?unique=72dbdbd)
|
Type number: 516.3002 |
30.29 € | |
![[116051] RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 3/8](/web/image/product.template/200784/image_128/%5B116051%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB3A%C2%AB%2C%20bistable%2C%20G%203-8?unique=585f797)
|
Type number: 516.3005 |
37.28 € | |
![[116046] RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, M5](/web/image/product.template/200779/image_128/%5B116046%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB3A%C2%AB%2C%20bistable%2C%20M5?unique=e5c3ecf)
|
Type number: 516.3000 |
29.32 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[116219] RIEGLER Multi-base plate for 3/2-way valves, 2 positions, G 1/8, G 1/4](/web/image/product.template/200952/image_128/%5B116219%5D%20RIEGLER%20Multi-base%20plate%20for%203-2-way%20valves%2C%202%20positions%2C%20G%201-8%2C%20G%201-4?unique=33a716e)
|
Type number: 5510.02-14 |
10.47 € | |
![[116222] RIEGLER Multi-base plate for 3/2-way valves, 3 positions, G 1/8, G 1/4](/web/image/product.template/200955/image_128/%5B116222%5D%20RIEGLER%20Multi-base%20plate%20for%203-2-way%20valves%2C%203%20positions%2C%20G%201-8%2C%20G%201-4?unique=2738a87)
|
Type number: 5510.03-14 |
15.70 € | |
![[116225] RIEGLER Multi-base plate for 3/2-way valves, 4 positions, G 1/8, G 1/4](/web/image/product.template/200958/image_128/%5B116225%5D%20RIEGLER%20Multi-base%20plate%20for%203-2-way%20valves%2C%204%20positions%2C%20G%201-8%2C%20G%201-4?unique=ac91972)
|
Type number: 5510.04-14 |
20.92 € | |

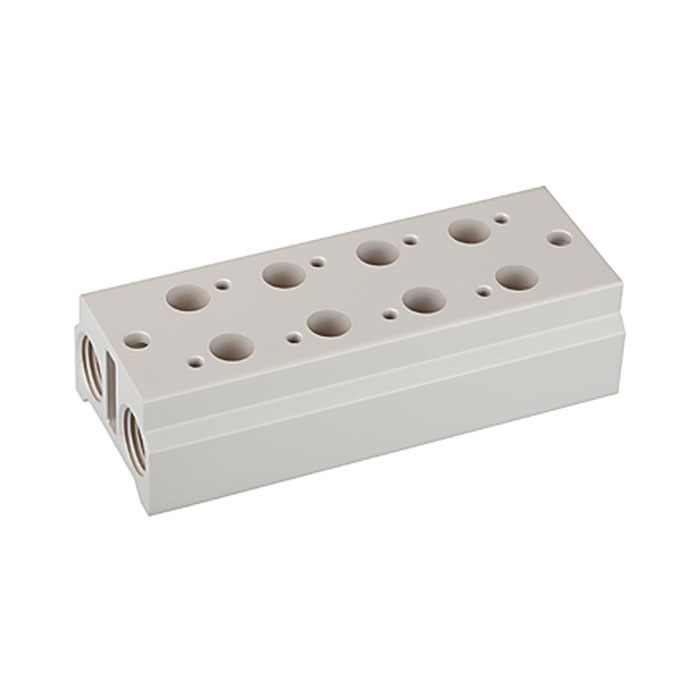

![[116228] RIEGLER Multi-base plate for 3/2-way valves, 5 positions, G 1/8, G 1/4](/web/image/product.template/200961/image_128/%5B116228%5D%20RIEGLER%20Multi-base%20plate%20for%203-2-way%20valves%2C%205%20positions%2C%20G%201-8%2C%20G%201-4?unique=1686132)
|
Type number: 5510.05-14 |
26.16 € | |
![[116231] RIEGLER Multi-base plate for 3/2-way valves, 6 positions, G 1/8, G 1/4](/web/image/product.template/200964/image_128/%5B116231%5D%20RIEGLER%20Multi-base%20plate%20for%203-2-way%20valves%2C%206%20positions%2C%20G%201-8%2C%20G%201-4?unique=d684ed9)
|
Type number: 5510.06-14 |
31.39 € | |
![[116234] RIEGLER Multi-base plate for 3/2-way valves, 7 positions, G 1/8, G 1/4](/web/image/product.template/200967/image_128/%5B116234%5D%20RIEGLER%20Multi-base%20plate%20for%203-2-way%20valves%2C%207%20positions%2C%20G%201-8%2C%20G%201-4?unique=2ebc7d7)
|
Type number: 5510.07-14 |
36.62 € | |

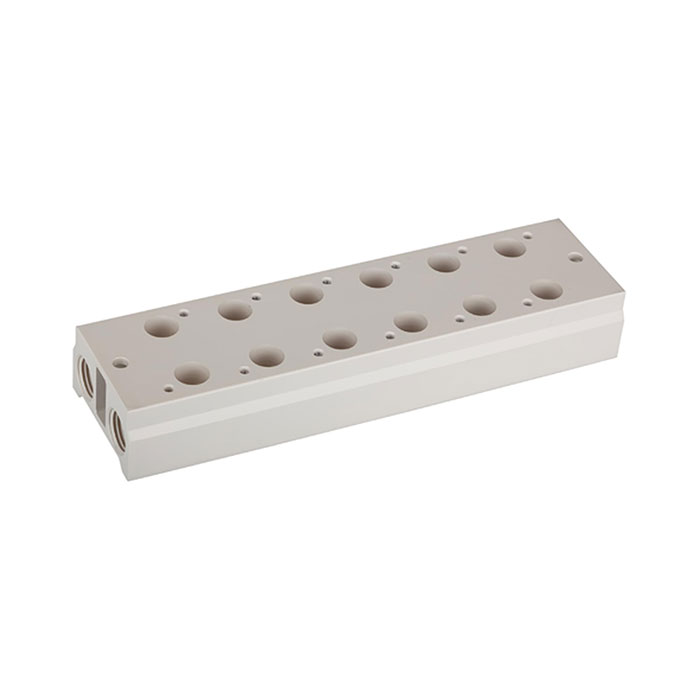

![[116237] RIEGLER Multi-base plate for 3/2-way valves, 8 positions, G 1/8, G 1/4](/web/image/product.template/200970/image_128/%5B116237%5D%20RIEGLER%20Multi-base%20plate%20for%203-2-way%20valves%2C%208%20positions%2C%20G%201-8%2C%20G%201-4?unique=c49c494)
|
