RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 3/8
Type number: 516.3005
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3/2-way valve for pneumatic control, max. 8 bar, G 3/8 - Type 516.3005
The RIEGLER 3/2-way valve, pneumatic, "3A", bistable, G 3/8 controls the direction of the compressed air flow for targeted movement sequences. The operating pressure range is 1.5 bar to 8 bar. Connection thread G 3/8 - suitable for common industry standards. The flow rate is 1500 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Precise directional control for defined movement sequences.
Field of application
Typical areas of application: Pneumatic controls and mechanical engineering.
| Temperature range max. | 70 °C |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Operating pressure min. | 1.5 bar |
| Max. operating pressure | 8 bar |
| Pilot air connection | G 1/8 |
| Valve body | Aluminum alloy |
| Flow rate | 1500 l/min |
| Function | 3/2 |
| Actuation | bistable |

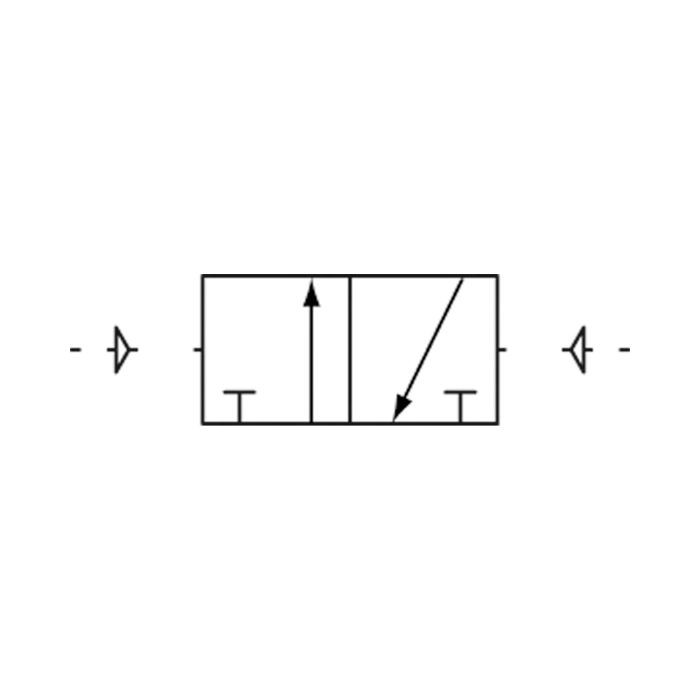

| Symbol | 26 |
| BG | 300 |
| Venting connection | G 3/8 |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| Connection | G 3/8 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

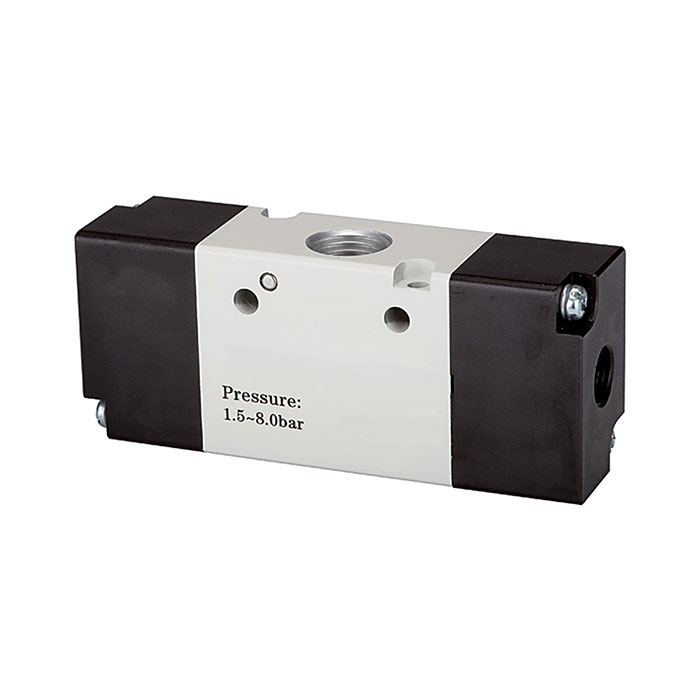

![[116049] RIEGLER 3/2-way valve, Pneumatic, »3A«, bistable, G 1/4](/web/image/product.template/200782/image_128/%5B116049%5D%20RIEGLER%203-2-way%20valve%2C%20Pneumatic%2C%20%C2%BB3A%C2%AB%2C%20bistable%2C%20G%201-4?unique=3599617)
|
