RIEGLER Filter regulator »variobloc« with protective cage, Size 2, G 1/2
Type number: VFR 43 S
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filter regulator "variobloc" with PC tank made of die-cast zinc, for compressed air treatment - type VFR 43 S
The RIEGLER "variobloc" filter regulator with PC bowl, protective cage, BG 2, G 1/2 combines compressed air filtration and pressure regulation in one compact device. The housing is made of die-cast zinc with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 16 bar. Connection thread G 1/2 - suitable for common industry standards. The flow rate is 5500 l/min (at P1 = 10 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 40 µm, polycarbonate container with protective cage. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure max. | 16 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Polycarbonate container with protective cage |
| Filter fineness | 40 µm |
| Medium temperature max. | 50 °C |
| Ambient temperature max. | 50 °C |
| Spring cover | POM |
| Thread | G 1/2 |
| Flow rate | 5500 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 10 bar |
| Condensate drain | manually |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 10 bar |
| BG | 2 |
| A | 70 mm |
| B | 273 mm |
| C | 98 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[124776] RIEGLER Filter regulator »variobloc« with protective cage, Size 1, G 1/4](/web/image/product.template/202413/image_128/%5B124776%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20protective%20cage%2C%20Size%201%2C%20G%201-4?unique=23064b7)
|
Type number: VFR 23 S |
125.95 € | |
![[124782] RIEGLER Filter regulator »variobloc« with protective cage, Size 1, G 3/8](/web/image/product.template/202414/image_128/%5B124782%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20protective%20cage%2C%20Size%201%2C%20G%203-8?unique=9ab3175)
|
Type number: VFR 33 S |
125.95 € | |

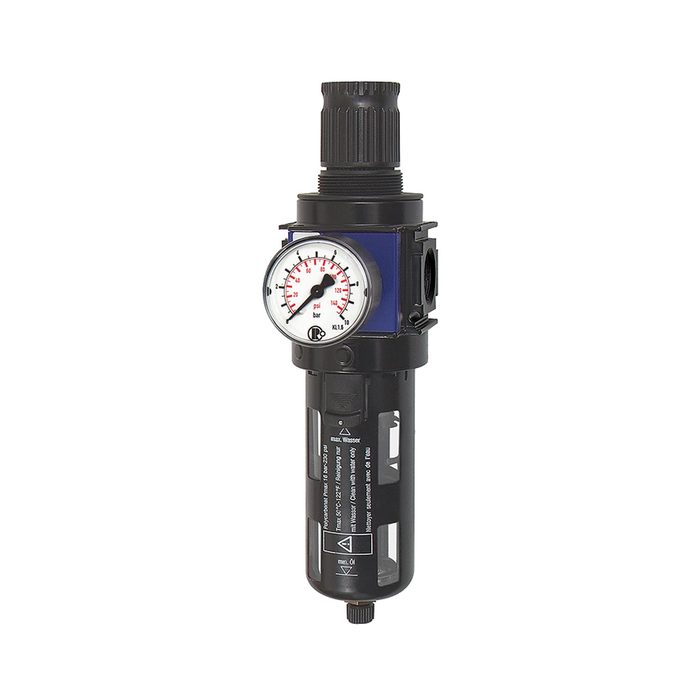

![[124803] RIEGLER Filter regulator »variobloc« with protective cage, Size 2, G 1](/web/image/product.template/202417/image_128/%5B124803%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20protective%20cage%2C%20Size%202%2C%20G%201?unique=23064b7)
|
Type number: VFR 63 S |
123.81 € | |
![[124796] RIEGLER Filter regulator »variobloc« with protective cage, Size 2, G 3/4](/web/image/product.template/202416/image_128/%5B124796%5D%20RIEGLER%20Filter%20regulator%20%C2%BBvariobloc%C2%AB%20with%20protective%20cage%2C%20Size%202%2C%20G%203-4?unique=23064b7)
|
Type number: VFR 53 S |
94.58 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[100665] RIEGLER PC container, Automatic bleeder valve (integrated design)](/web/image/product.template/140100/image_128/%5B100665%5D%20RIEGLER%20PC%20container%2C%20Automatic%20bleeder%20valve%20%28integrated%20design%29?unique=0d162dc)
|
Type number: VZ 512 |
45.41 € | |
![[100669] RIEGLER Metal container incl. viewing tube, for »variobloc«, Size 2](/web/image/product.template/140104/image_128/%5B100669%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=af67e79)
|
Type number: VZ 552 |
55.97 € | |

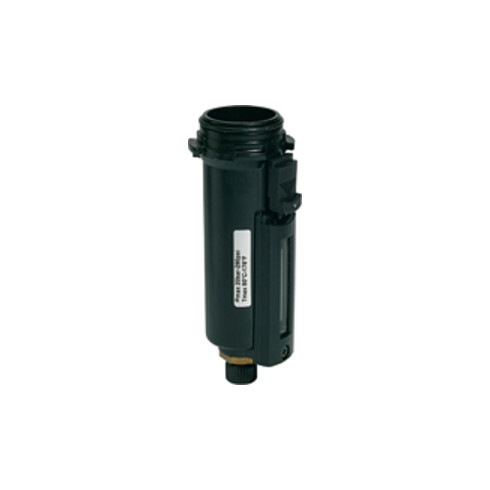

![[100671] RIEGLER Metal container incl. viewing tube, Automatic bleeder valve](/web/image/product.template/140106/image_128/%5B100671%5D%20RIEGLER%20Metal%20container%20incl.%20viewing%20tube%2C%20Automatic%20bleeder%20valve?unique=3d49ac7)
|
Type number: VZ 562 |
78.12 € | |

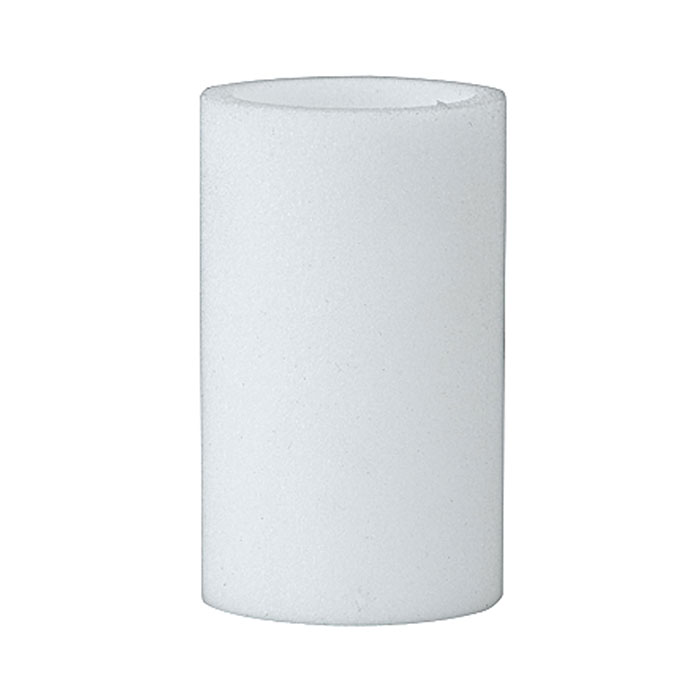

![[100675] RIEGLER Filter element 5 µm, PE sintered](/web/image/product.template/140110/image_128/%5B100675%5D%20RIEGLER%20Filter%20element%205%20%C2%B5m%2C%20PE%20sintered?unique=a51bce5)
|
Type number: VZ 742/5 |
10.39 € | |

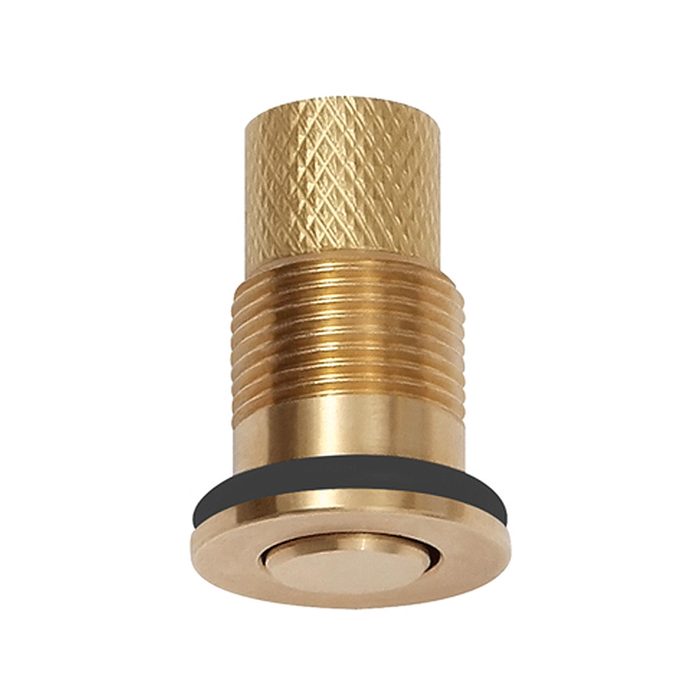

![[100676] RIEGLER Semi automated bleeder valve](/web/image/product.template/140111/image_128/%5B100676%5D%20RIEGLER%20Semi%20automated%20bleeder%20valve?unique=953b1b9)
|
Type number: VZ 751 |
9.47 € | |

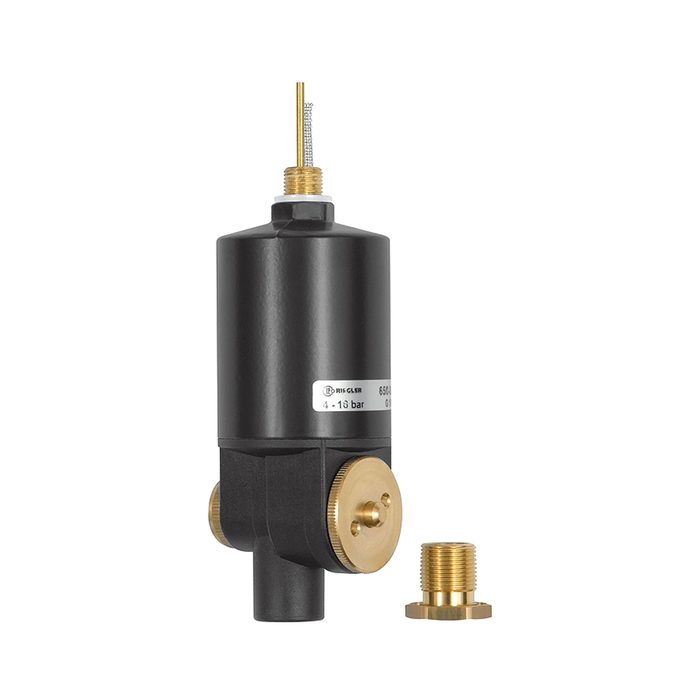

![[100677] RIEGLER Fully automated bleeder valve incl. adapter G 1/8 i. x M14x1](/web/image/product.template/140112/image_128/%5B100677%5D%20RIEGLER%20Fully%20automated%20bleeder%20valve%20incl.%20adapter%20G%201-8%20i.%20x%20M14x1?unique=1bb6f15)
|
Type number: 65/0-N |
69.63 € | |

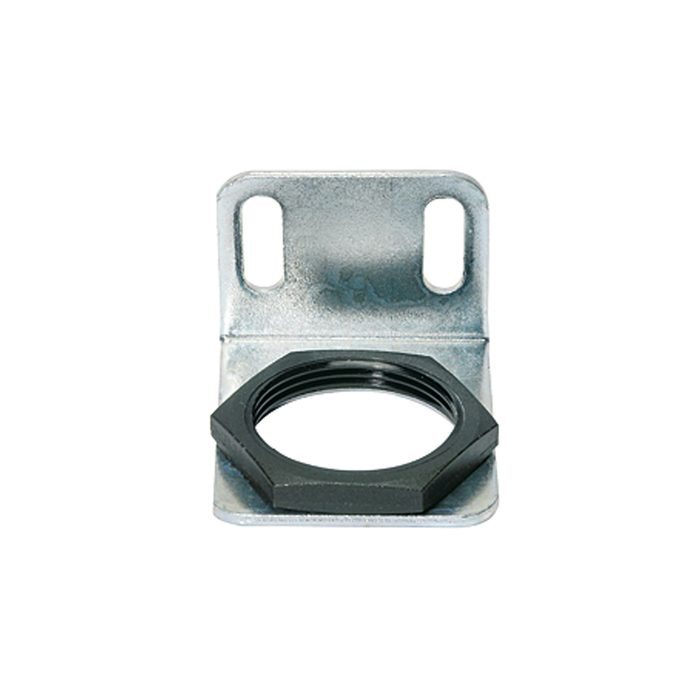

![[100747] RIEGLER Mounting bracket and fastening nut, for »variobloc«, Size 2](/web/image/product.template/140183/image_128/%5B100747%5D%20RIEGLER%20Mounting%20bracket%20and%20fastening%20nut%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=37e0d2a)
|
Type number: 630/2-B |
13.29 € | |
![[100749] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 2](/web/image/product.template/140185/image_128/%5B100749%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202?unique=ab06f71)
|
Type number: VZ 719 |
13.77 € | |
![[100752] RIEGLER Compact connecting set, for »variobloc«, Size 2, G 1/2](/web/image/product.template/140188/image_128/%5B100752%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2?unique=c6a08d1)
|
Type number: VZ 103 |
14.05 € | |
![[100756] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 2, G 1/2](/web/image/product.template/140192/image_128/%5B100756%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2?unique=877d96e)
|
Type number: VZ 203 |
23.10 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[100673] RIEGLER Filter element 40 µm, PE sintered](/web/image/product.template/140108/image_128/%5B100673%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20PE%20sintered?unique=6daf7e0)
|
Type number: VZ 742 |
5.24 € | |

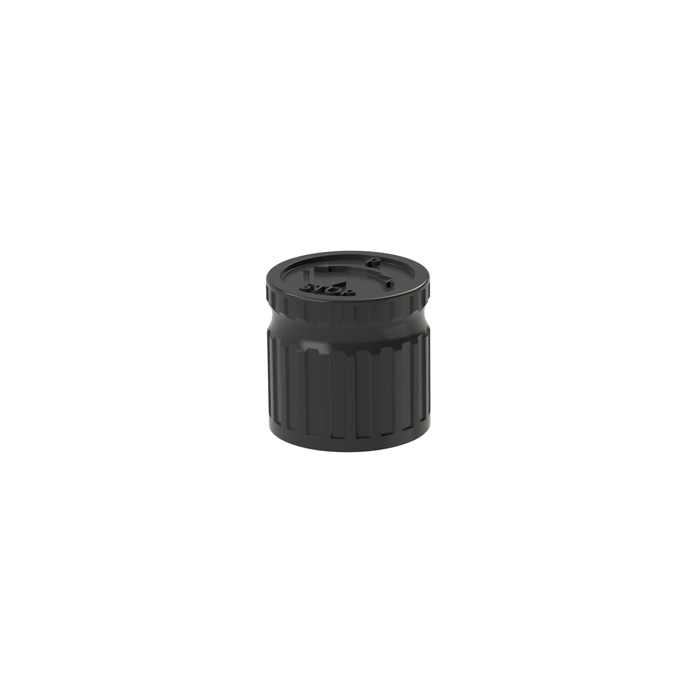

![[118831] RIEGLER Handwheel "variobloc" BG 2 for pressure and filter regulator](/web/image/product.template/280939/image_128/%5B118831%5D%20RIEGLER%20Handwheel%20%22variobloc%22%20BG%202%20for%20pressure%20and%20filter%20regulator?unique=a7abaa9)
|
Type number: 443.3.94 |
2.34 € | |
![[100663] RIEGLER Polycarbonate container with manual bleeder valve](/web/image/product.template/140098/image_128/%5B100663%5D%20RIEGLER%20Polycarbonate%20container%20with%20manual%20bleeder%20valve?unique=1b52bf6)
|
Type number: VZ 502 |
18.60 € | |

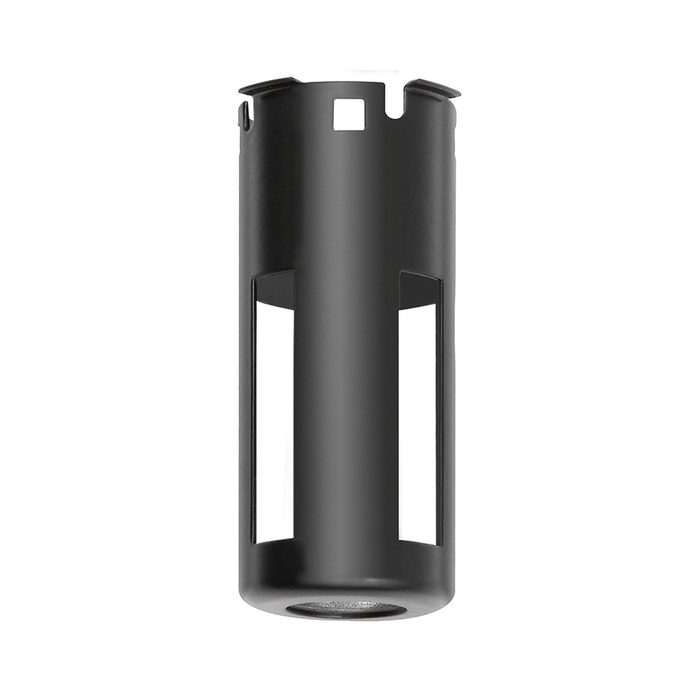

![[100667] RIEGLER Protective cage, for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140102/image_128/%5B100667%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=d332a5f)
|
Type number: VZ 532 |
18.14 € | |

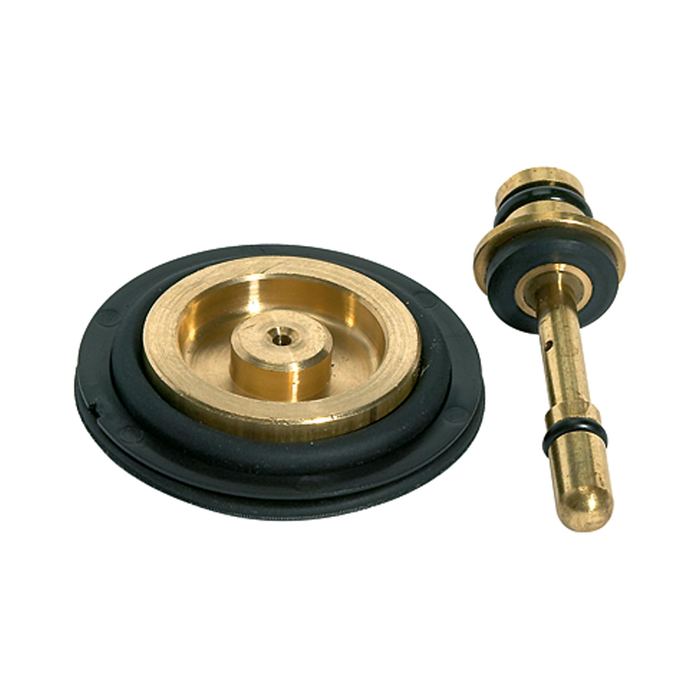

![[100650] RIEGLER Wear part set for »variobloc«, Size 2, G 1/2, G 3/4 and G 1](/web/image/product.template/140085/image_128/%5B100650%5D%20RIEGLER%20Wear%20part%20set%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%202%2C%20G%201-2%2C%20G%203-4%20and%20G%201?unique=533bb4f)
|
