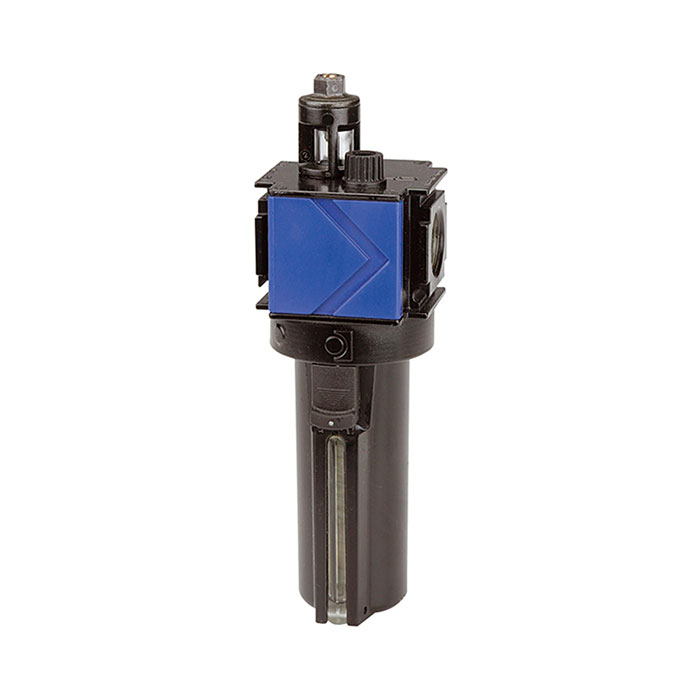

RIEGLER Mist oiler »variobloc« with metal container, Size 1, G 1/4
Type number: VN 22 M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Mist lubricator "variobloc" made of die-cast zinc, for compressed air treatment, G 1/4 - type VN 22 M
The RIEGLER mist lubricator "variobloc", with metal container, sight tube, BG 1, G 1/4 doses precise quantities of oil into the compressed air flow and automatically lubricates pneumatic consumers. The housing is made of die-cast zinc with NBR seals. The maximum inlet pressure is 20 bar. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 3400 l/min (at P1 = 6 bar and pressure drop Δp = 1 bar). Metal container with sight tube. Automatic lubrication extends the service life of moving parts.
Field of application
Typical areas of application: Lubrication of pneumatic cylinders, valves and pneumatic tools.
| Inlet pressure max. | 20 bar |
| Housing | Zinc die casting |
| Sealing material | NBR |
| Flow rate measurement | at P<sub>1</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | variobloc |
| Container | Metal container with sight tube |
| Dropper attachment | PA |
| Oil grade | CL 32 according to DIN 51517-ISO VG 32 |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 1/4 |
| Flow rate | 3400 l/min |
| BG | 1 |
| A | 48 mm |
| B | 180 mm |
| C | 60 mm |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125336] RIEGLER Mist oiler »variobloc« with metal container, Size 1, G 3/8](/web/image/product.template/202479/image_128/%5B125336%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%201%2C%20G%203-8?unique=f910370)
|
Type number: VN 23 M |
120.71 € | |
![[125339] RIEGLER Mist oiler »variobloc« with metal container, Size 2, G 1](/web/image/product.template/202482/image_128/%5B125339%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201?unique=f910370)
|
Type number: VN 26 M |
116.27 € | |
![[125337] RIEGLER Mist oiler »variobloc« with metal container, Size 2, G 1/2](/web/image/product.template/202480/image_128/%5B125337%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%201-2?unique=f910370)
|
Type number: VN 24 M |
85.69 € | |
![[125338] RIEGLER Mist oiler »variobloc« with metal container, Size 2, G 3/4](/web/image/product.template/202481/image_128/%5B125338%5D%20RIEGLER%20Mist%20oiler%20%C2%BBvariobloc%C2%AB%20with%20metal%20container%2C%20Size%202%2C%20G%203-4?unique=23064b7)
|
Type number: VN 25 M |
85.69 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=36a168c)
|
Type number: 32 |
34.09 € | |
![[100666] RIEGLER Protective cage, for »variobloc«, Size 1, G 1/4 and G 3/8](/web/image/product.template/140101/image_128/%5B100666%5D%20RIEGLER%20Protective%20cage%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4%20and%20G%203-8?unique=bf16528)
|
Type number: VZ 531 |
14.24 € | |
![[100697] RIEGLER Polycarbonate container](/web/image/product.template/140132/image_128/%5B100697%5D%20RIEGLER%20Polycarbonate%20container?unique=6d9e27d)
|
Type number: VZ 601 |
32.76 € | |
![[100708] RIEGLER Drip cap made of plastic, for mist oiler »variobloc«, Size 1](/web/image/product.template/140144/image_128/%5B100708%5D%20RIEGLER%20Drip%20cap%20made%20of%20plastic%2C%20for%20mist%20oiler%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=bdd28a8)
|
Type number: VZ 721 |
9.85 € | |
![[100748] RIEGLER Mounting bracket and 2 screws, for »variobloc«, Size 1](/web/image/product.template/140184/image_128/%5B100748%5D%20RIEGLER%20Mounting%20bracket%20and%202%20screws%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201?unique=04785b9)
|
Type number: VZ 718 |
9.32 € | |

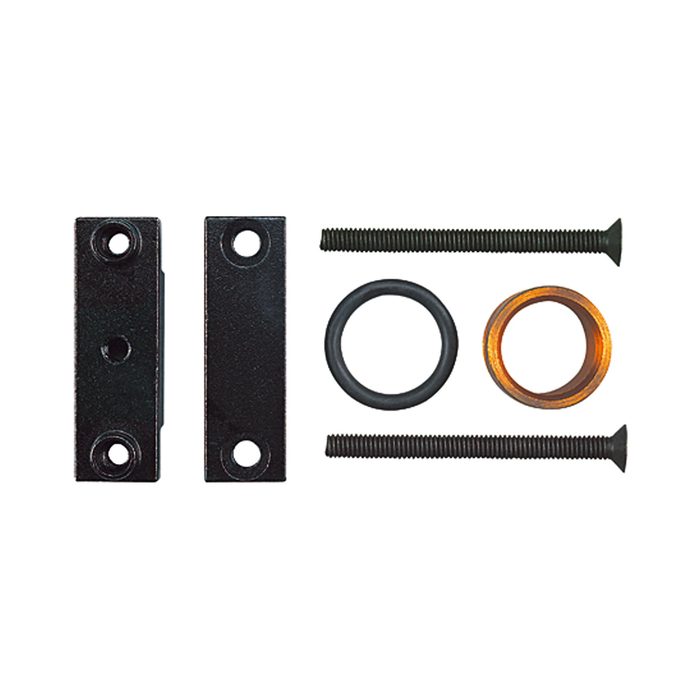

![[100750] RIEGLER Compact connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140186/image_128/%5B100750%5D%20RIEGLER%20Compact%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=b62df55)
|
Type number: VZ 101 |
9.29 € | |

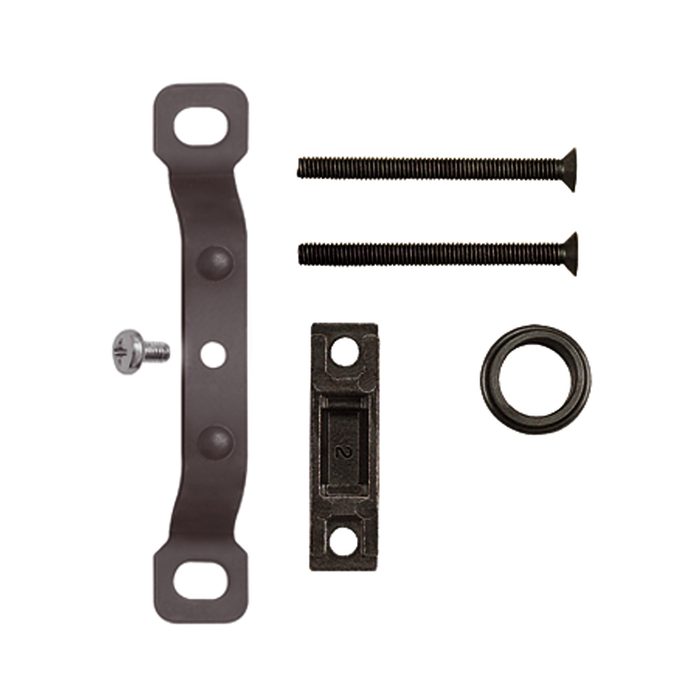

![[100754] RIEGLER Compact connecting set incl. T-holder, »variobloc«, Size 1, G 1/4](/web/image/product.template/140190/image_128/%5B100754%5D%20RIEGLER%20Compact%20connecting%20set%20incl.%20T-holder%2C%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=2f4dde5)
|
Type number: VZ 201 |
9.52 € | |

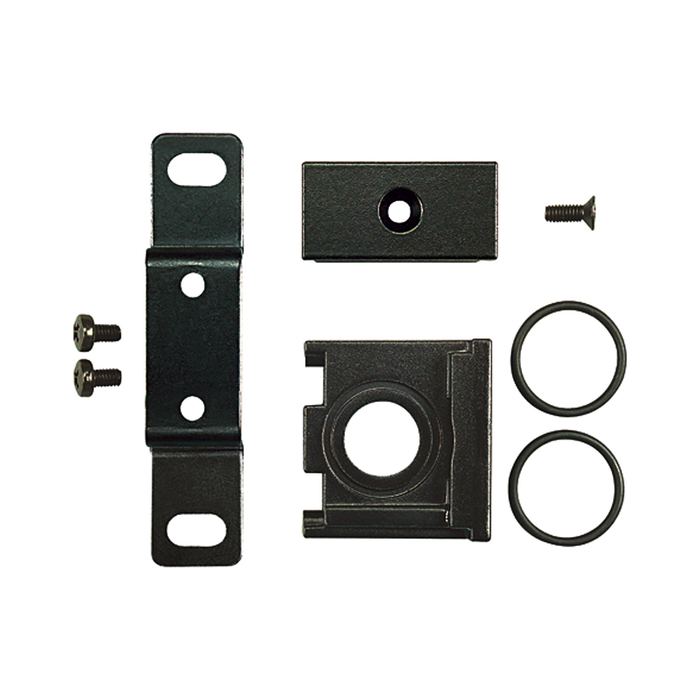

![[100760] RIEGLER Comfort connecting set, for »variobloc«, Size 1, G 1/4](/web/image/product.template/140196/image_128/%5B100760%5D%20RIEGLER%20Comfort%20connecting%20set%2C%20for%20%C2%BBvariobloc%C2%AB%2C%20Size%201%2C%20G%201-4?unique=8ee122e)
|
