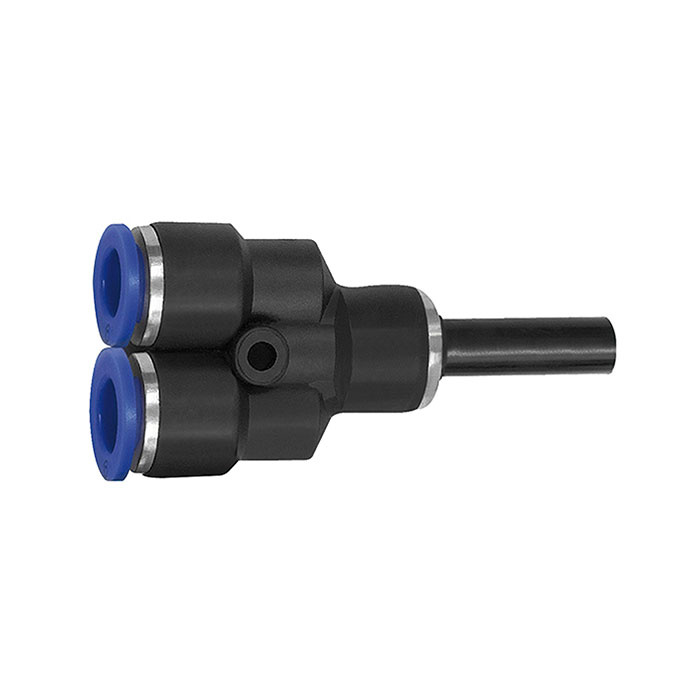

RIEGLER Push-in Y-connector, Plug nipple »Blue Series«, hose/plug Ø 4
Type number: 142.004-K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Y-connector made of plastic or nickel-plated brass, for pneumatic installation - type 142.004-K
The RIEGLER Y-connector, plug-in nipple 4 mm "blue series", hose Ø 4 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of plastic or nickel-plated brass with NBR seals. The operating pressure range is -0.95 bar to 10 bar. The temperature range is between -20 °C and 80 °C. Suitable for compressed air. Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 4 mm |
| Plug nipple | 4 mm |

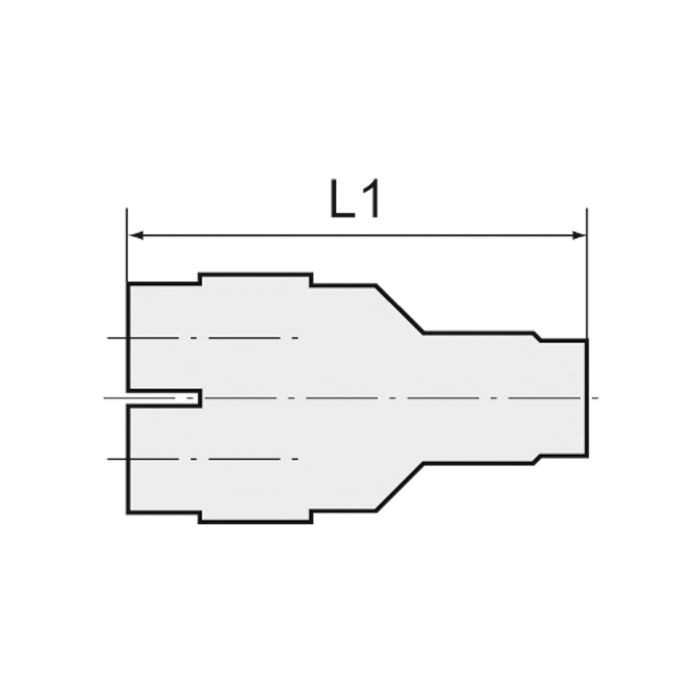

| L1 | 47.5 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125722] RIEGLER Push-in Y-connector, Plug nipple »Blue Series«, hose/plug Ø 10](/web/image/product.template/202565/image_128/%5B125722%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%2010?unique=9e3a704)
|
Type number: 142.010-K |
4.51 € | |
![[125723] RIEGLER Push-in Y-connector, Plug nipple »Blue Series«, hose/plug Ø 12](/web/image/product.template/202566/image_128/%5B125723%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%2012?unique=27cb3b5)
|
Type number: 142.012-K |
5.89 € | |
![[135772] RIEGLER Push-in Y-connector, Plug nipple »Blue Series«, hose/plug Ø 16](/web/image/product.template/206150/image_128/%5B135772%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%2016?unique=1abd34f)
|
Type number: 142.016-K |
8.85 € | |

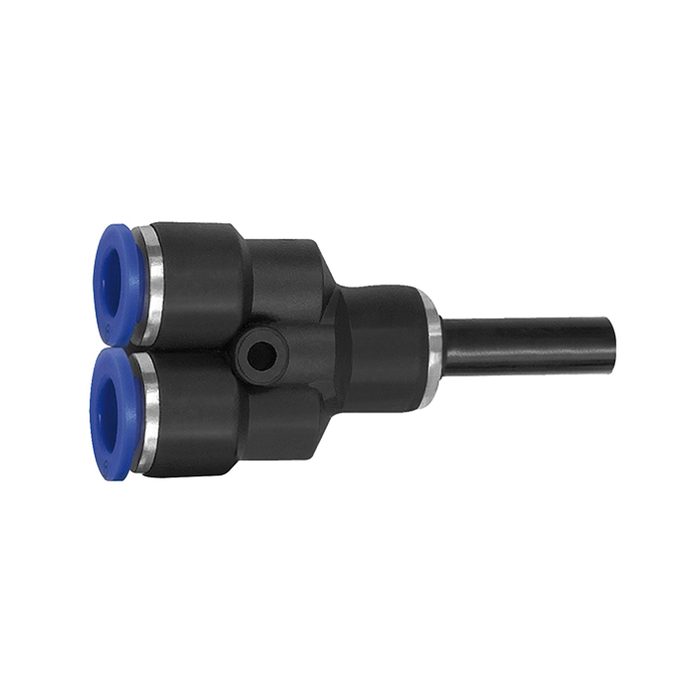

![[125720] RIEGLER Push-in Y-connector, Plug nipple »Blue Series«, hose/plug Ø 6](/web/image/product.template/202563/image_128/%5B125720%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%206?unique=4a1bcf7)
|
