RIEGLER Push-in Y-connector, Plug nipple »Blue Series«, hose/plug Ø 10
Type number: 142.010-K
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Y-Steckverbindung, Stecknippel 10 mm »Blaue Serie«, für Schlauch-Außen-Ø 10 mm, pmax kurzzeitig 15 bar, Kunststoff
| Temperature range min. | -20 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air |
| Sealing material | NBR |
| Series | Blue series |
| Working pressure min. | -0.95 bar |
| Working pressure max. | 10 bar |
| Material | Plastic or nickel-plated brass |
| Area of application | Compressed air systems, automotive, packaging industry, vacuum |
| Solder ring | Plastic |
| Recommended hose | PU or PA (nylon) |
| for hose outer Ø | 10 mm |
| Plug nipple | 10 mm |

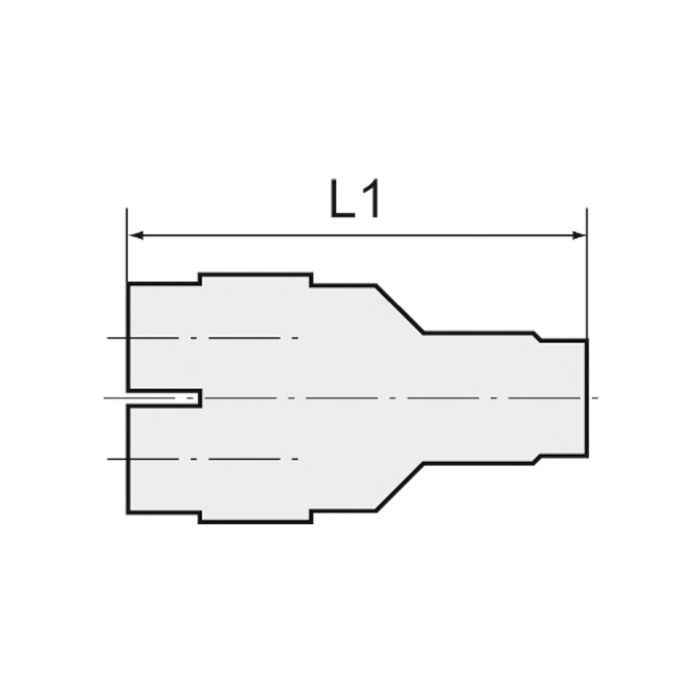

| L1 | 66.5 mm |
| Class name | EASY |
| Working pressure max. short-term | 15 bar |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[125723] RIEGLER Push-in Y-connector, Plug nipple »Blue Series«, hose/plug Ø 12](/web/image/product.template/202566/image_128/%5B125723%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%2012?unique=0792a06)
|
Type number: 142.012-K |
5.89 € | |
![[135772] RIEGLER Push-in Y-connector, Plug nipple »Blue Series«, hose/plug Ø 16](/web/image/product.template/206150/image_128/%5B135772%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%2016?unique=39d3575)
|
Type number: 142.016-K |
8.85 € | |
![[125719] RIEGLER Push-in Y-connector, Plug nipple »Blue Series«, hose/plug Ø 4](/web/image/product.template/202562/image_128/%5B125719%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%204?unique=91f8079)
|
Type number: 142.004-K |
3.20 € | |

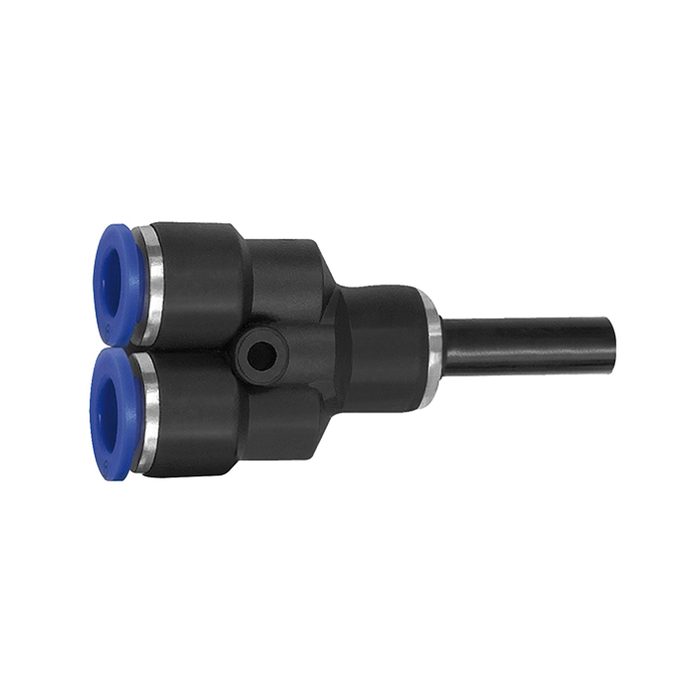

![[125720] RIEGLER Push-in Y-connector, Plug nipple »Blue Series«, hose/plug Ø 6](/web/image/product.template/202563/image_128/%5B125720%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%206?unique=00cbe81)
|
Type number: 142.006-K |
3.61 € | |

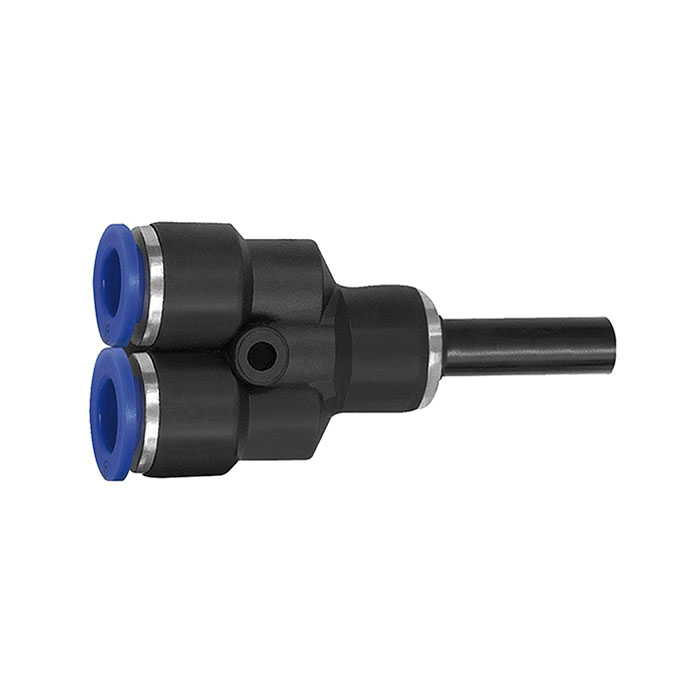

![[125721] RIEGLER Push-in Y-connector, Plug nipple »Blue Series«, hose/plug Ø 8](/web/image/product.template/202564/image_128/%5B125721%5D%20RIEGLER%20Push-in%20Y-connector%2C%20Plug%20nipple%20%C2%BBBlue%20Series%C2%AB%2C%20hose-plug%20%C3%98%208?unique=8192d7c)
|
Type number: 142.008-K |
4.13 € | |
