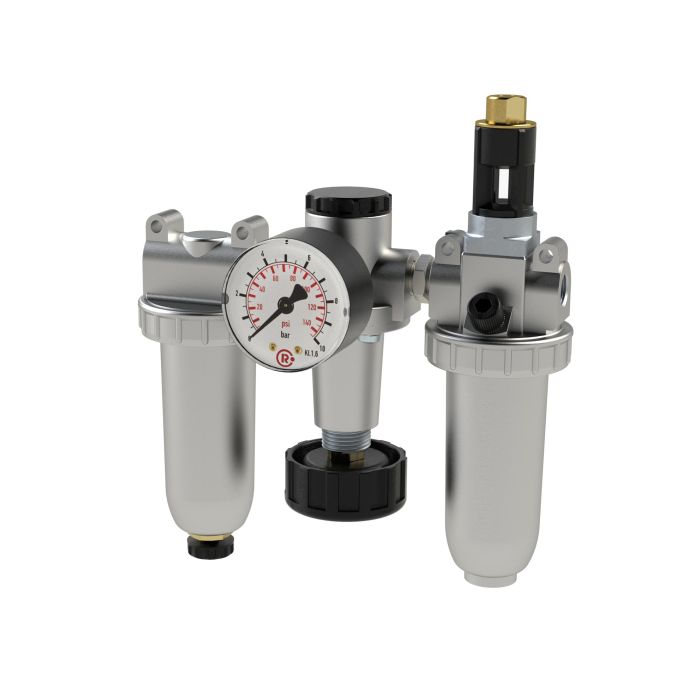

RIEGLER 3-piece "Standard" maintenance unit with metal container, BG 2, G 3/8
Type number: 850 B/M.2
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Service unit 3-part »Standard«, Metal container, metal drip cap, Size 2, G 3/8, Input press. max. 25 bar, Control range 0.5-16 bar
| A | 232 mm |
| B | 210 mm |
| Container | Metal container |
| BG | 2 |
| C | 51 mm |
| Sealing material | NBR |
| DN | 6 |
| Flow_1 | 1400 l/min |
| Flow rate measurement | with P<subscript>1</subscript> = 8 bar, P<subscript>2 </subscript>= 6 bar and pressure drop Î"<subscript>p</subscript> = 1 bar |
| Inlet pressure max. | 25 bar |
| Filter fineness | 5 µm |
| Housing | Die-cast zinc / aluminum, painted silver |
| Thread | G 3/8 |
| Class name | EASY |
| Condensate drain | manually |
| Pressure gauge Ø | 50 mm |
| Pressure gauge display max. | 25 bar |
| Pressure gauge display min. | 0 bar |
| Medium temperature max. | 60 °C |
| Medium temperature min. | -10 °C |
| Control range max. | 16 bar |
| Control range min. | 0.5 bar |
| Series | Standard |
| Dropper attachment | Zinc-glass-NBR |
| Ambient temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
