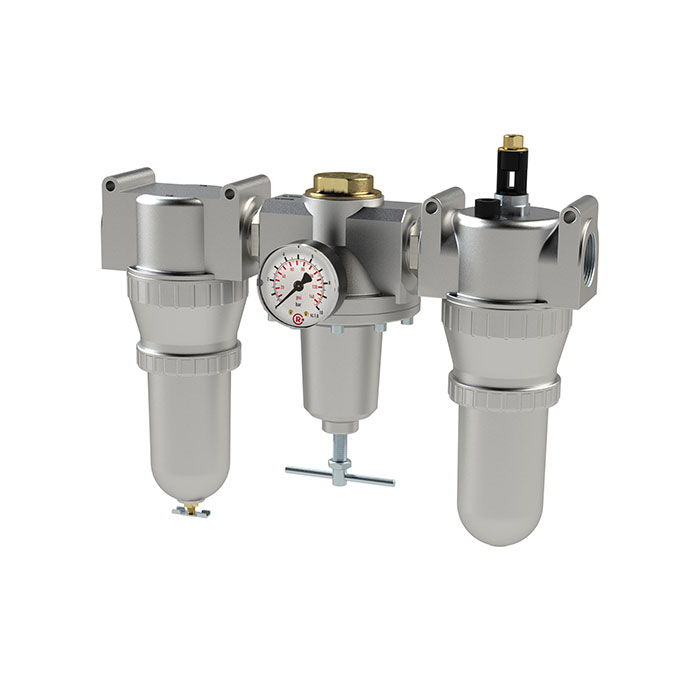

RIEGLER Service unit 3-part »Standard«, Metal container, Size 4, G 1 1/2
Type number: 850 H/M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Wartungseinheit 3-tlg. »Standard«, Metallbehälter u. Tropfaufsatz Metall, BG 4, G 1 1/2, PE max. 25 bar, Regelbereich 0,5 - 16 bar
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc / aluminum, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 40 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 1/2 |
| Flow rate | 5000 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 16 bar |
| Condensate drain | manually |
| DN | 35 |
| Pressure gauge Ø | 63 mm |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 25 bar |
| BG | 4 |
| A | 395 mm |
| B | 316 mm |
| C | 70 mm |
| Class name | EASY |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[129495] RIEGLER 3-piece "Standard" maintenance unit with metal container, BG 2, G 3/8](/web/image/product.template/267880/image_128/%5B129495%5D%20RIEGLER%203-piece%20%22Standard%22%20maintenance%20unit%20with%20metal%20container%2C%20BG%202%2C%20G%203-8?unique=095e6a8)
|
Type number: 850 B/M.2 |
157.13 € | |

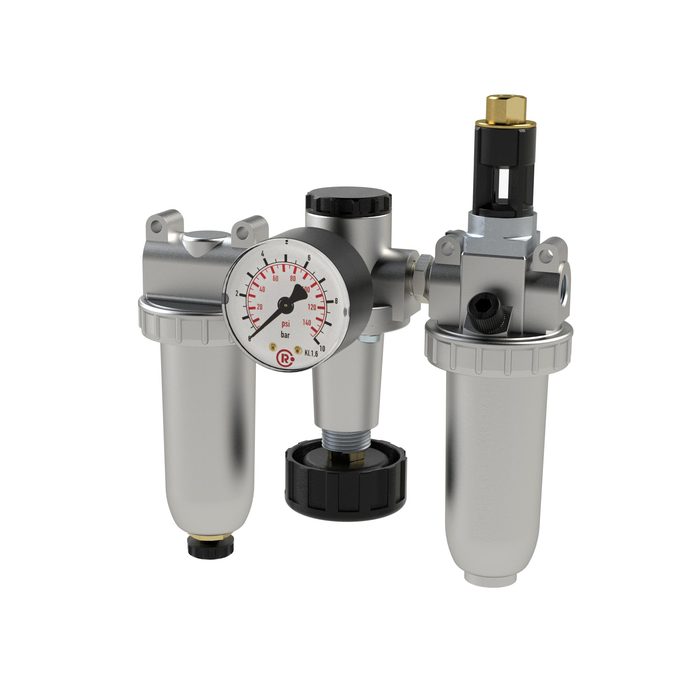

![[101080] RIEGLER Service unit 3-part »Standard«, Metal container, Size 1, G 1/4](/web/image/product.template/140516/image_128/%5B101080%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%201-4?unique=e8853e4)
|
Type number: 845 B/M |
119.82 € | |
![[101081] RIEGLER Service unit 3-part »Standard«, Metal container, Size 1, G 3/8](/web/image/product.template/140517/image_128/%5B101081%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%201%2C%20G%203-8?unique=9655526)
|
Type number: 847 K/M |
119.82 € | |
![[101085] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 1](/web/image/product.template/140521/image_128/%5B101085%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201?unique=f76497c)
|
Type number: 850 E/M |
328.30 € | |
![[101083] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 1/2](/web/image/product.template/140519/image_128/%5B101083%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%201-2?unique=2ba7d8c)
|
Type number: 850 C/M |
182.39 € | |
![[101084] RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 3/4](/web/image/product.template/140520/image_128/%5B101084%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%203%2C%20G%203-4?unique=3fa7fc4)
|
Type number: 850 D/M |
328.30 € | |
![[101086] RIEGLER Service unit 3-part »Standard«, Metal container, Size 4, G 1 1/4](/web/image/product.template/140522/image_128/%5B101086%5D%20RIEGLER%20Service%20unit%203-part%20%C2%BBStandard%C2%AB%2C%20Metal%20container%2C%20Size%204%2C%20G%201%201-4?unique=c0f0b6b)
|
Type number: 850 F/M |
660.94 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[101135] RIEGLER Pneumatic special oil, in canister 2.5 litre, incl. box and docu.](/web/image/product.template/140571/image_128/%5B101135%5D%20RIEGLER%20Pneumatic%20special%20oil%2C%20in%20canister%202.5%20litre%2C%20incl.%20box%20and%20docu.?unique=9a5d71c)
|
Type number: 32 |
34.09 € | |
![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=a0ae0bb)
|
Type number: 655.6.900 |
36.35 € | |
![[100794] RIEGLER Drip cap polycarbonate](/web/image/product.template/140230/image_128/%5B100794%5D%20RIEGLER%20Drip%20cap%20polycarbonate?unique=671722f)
|
Type number: 760.7.990 |
7.03 € | |
![[100845] RIEGLER Mounting bracket](/web/image/product.template/140282/image_128/%5B100845%5D%20RIEGLER%20Mounting%20bracket?unique=e6968c6)
|
Type number: H 86 |
9.47 € | |
![[100949] RIEGLER Protective cage, for series »Standard«, Size 3, G 1/2](/web/image/product.template/140385/image_128/%5B100949%5D%20RIEGLER%20Protective%20cage%2C%20for%20series%20%C2%BBStandard%C2%AB%2C%20Size%203%2C%20G%201-2?unique=82e2abb)
|
Type number: SK 03 |
23.98 € | |
![[100950] RIEGLER Polycarbonate container, for filter regulator / filter »Standard«](/web/image/product.template/140386/image_128/%5B100950%5D%20RIEGLER%20Polycarbonate%20container%2C%20for%20filter%20regulator%20-%20filter%20%C2%BBStandard%C2%AB?unique=39f9bdf)
|
Type number: 650/2-HA |
18.58 € | |
![[101044] RIEGLER PC container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140480/image_128/%5B101044%5D%20RIEGLER%20PC%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=3e5e41d)
|
Type number: 740/04 |
14.52 € | |
![[205521] RIEGLER Filterelement 5 µm, Cellpor, für »multifix« und »Standard«](/web/image/product.template/267920/image_128/%5B205521%5D%20RIEGLER%20Filterelement%205%20%C2%B5m%2C%20Cellpor%2C%20f%C3%BCr%20%C2%BBmultifix%C2%AB%20und%20%C2%BBStandard%C2%AB?unique=8241e6c)
|
Typennummer: 655.6.905.2 |
24.32 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101462] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 25 bar/360 psi](/web/image/product.template/169436/image_128/%5B101462%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar-360%20psi?unique=ffa608e)
|
Type number: 219-KD |
6.25 € | |
![[100796] RIEGLER Adapter for mounting metal drip cap](/web/image/product.template/140232/image_128/%5B100796%5D%20RIEGLER%20Adapter%20for%20mounting%20metal%20drip%20cap?unique=5974986)
|
Type number: 760.7.1135 |
10.95 € | |
![[100795] RIEGLER Drip cap metal](/web/image/product.template/140231/image_128/%5B100795%5D%20RIEGLER%20Drip%20cap%20metal?unique=b338c3b)
|
Type number: 760.7.992 |
31.57 € | |
![[100511] RIEGLER Filter element 40 µm, Cellpor, for »multifix« and »Standard«](/web/image/product.template/139946/image_128/%5B100511%5D%20RIEGLER%20Filter%20element%2040%20%C2%B5m%2C%20Cellpor%2C%20for%20%C2%BBmultifix%C2%AB%20and%20%C2%BBStandard%C2%AB?unique=d4774af)
|
Type number: 655.6.940 |
21.00 € | |
![[100951] RIEGLER Metal container, for filter regulator and filter »Standard«](/web/image/product.template/140387/image_128/%5B100951%5D%20RIEGLER%20Metal%20container%2C%20for%20filter%20regulator%20and%20filter%20%C2%BBStandard%C2%AB?unique=719d8eb)
|
Type number: 650/12 |
26.56 € | |
![[101043] RIEGLER Metal container, incl. O-ring, for mist oiler »Standard«, Size 3](/web/image/product.template/140479/image_128/%5B101043%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20for%20mist%20oiler%20%C2%BBStandard%C2%AB%2C%20Size%203?unique=b8c3beb)
|
Type number: 740/14 |
23.98 € | |

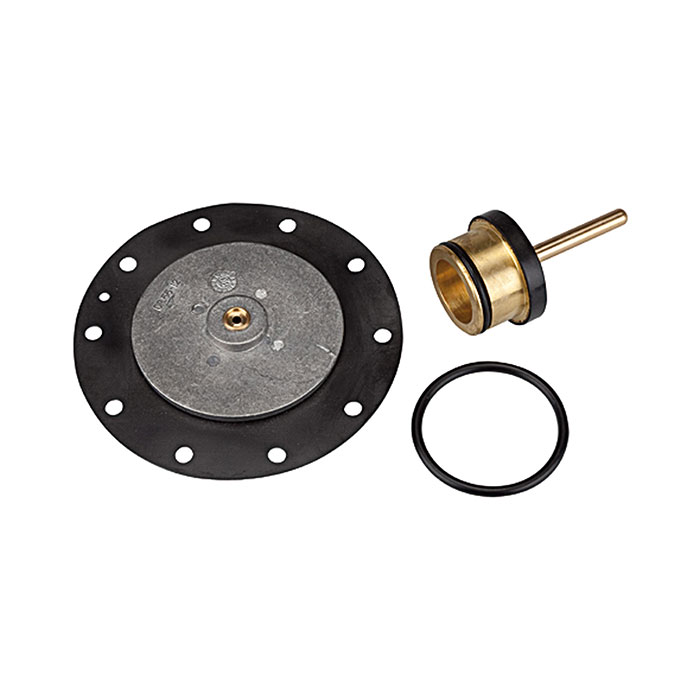

![[100846] RIEGLER Wear part set, for pressure regulator »Standard«, Size 4](/web/image/product.template/140283/image_128/%5B100846%5D%20RIEGLER%20Wear%20part%20set%2C%20for%20pressure%20regulator%20%C2%BBStandard%C2%AB%2C%20Size%204?unique=4735587)
|
