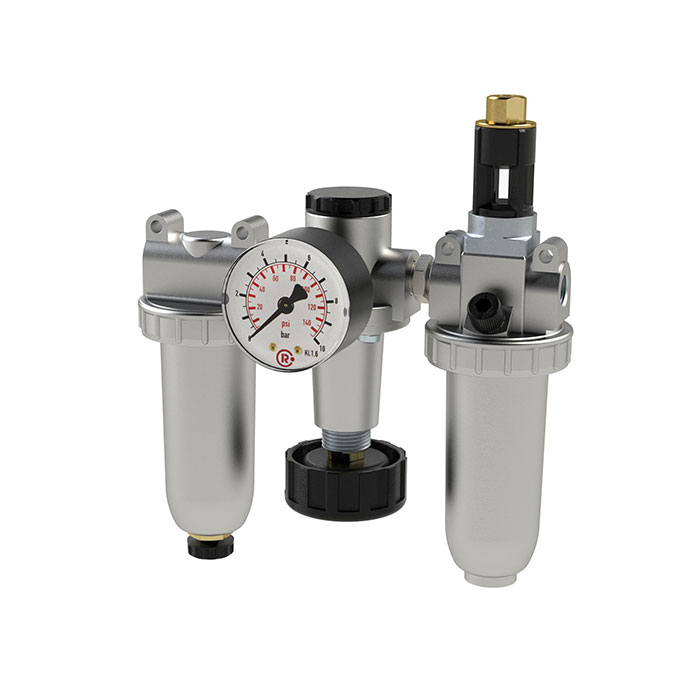

RIEGLER Service unit 3-part »Standard«, Metal container, Size 3, G 1
Type number: 850 E/M
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER 3-piece "Standard" maintenance unit made of die-cast zinc / aluminum, painted silver - Type 850 E/M
The RIEGLER 3-piece "Standard" maintenance unit with metal container, BG 3, G 1 combines a compressed air filter, regulator and lubricator in one compact maintenance unit. The housing is made of die-cast zinc / aluminum, painted silver with NBR seals. The control range extends from 0.5 bar to 16 bar with a maximum inlet pressure of 25 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 - suitable for common industry standards. The flow rate is 3200 l/min (at P1 = 8 bar, P2 = 6 bar and pressure drop Δp = 1 bar). Filter fineness 5 µm, container made of metal tank. All-in-one solution for purified, clean compressed air.
Field of application
Typical areas of application: Compressed air supply for production systems and pneumatic consumers.
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc / aluminum, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 5 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 1 |
| Flow rate | 3200 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 16 bar |
| Condensate drain | manually |
| DN | 25 |
| Pressure gauge Ø | 63 mm |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 25 bar |
| BG | 3 |
| A | 302 mm |
| B | 230.5 mm |
| C | 58 mm |
| Class name | EASY |
