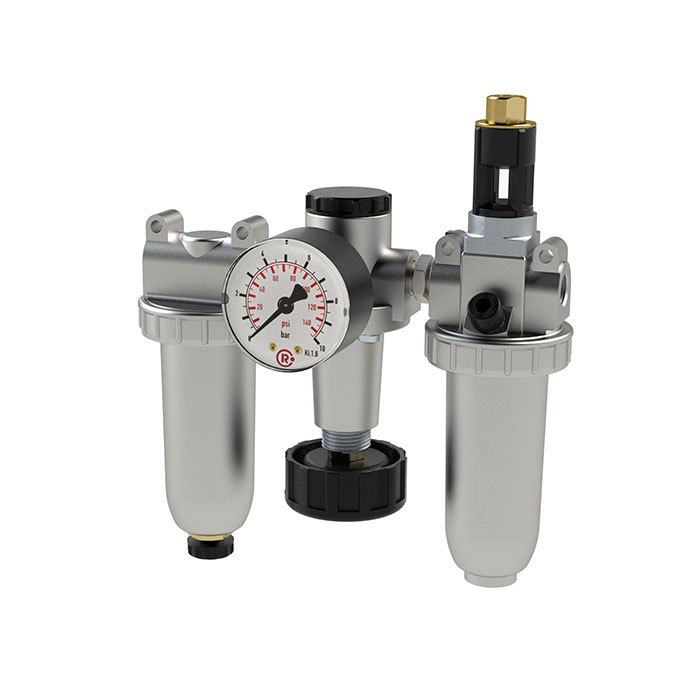

RIEGLER Service unit 3-part »Standard«, Metal container, Size 1, G 3/8
Type number: 847 K/M
EAN: 4047322121231
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
3-piece "Standard" maintenance unit, metal tank and metal drip cap, BG 1, G 3/8, PE max. 25 bar, control range 0.5 - 16 bar
| Inlet pressure max. | 25 bar |
| Housing | Die-cast zinc / aluminum, painted silver |
| Sealing material | NBR |
| Flow rate measurement | with P<sub>1</sub> = 8 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | Standard |
| Container | Metal container |
| Filter fineness | 5 µm |
| Dropper attachment | Zinc-glass-NBR |
| Medium temperature min. | -10 °C |
| Medium temperature max. | 60 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Thread | G 3/8 |
| Flow rate | 600 l/min |
| Control range min. | 0.5 bar |
| Control range max. | 16 bar |
| Condensate drain | manually |
| DN | 6 |
| Pressure gauge Ø | 50 mm |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 25 bar |
| BG | 1 |
| A | 185 mm |
| B | 184.5 mm |
| C | 51 mm |
| Class name | EASY |
