RIEGLER Electronic pressure switch, digital display, G 1/8 ET, 0 - 10 bar
Type number: EDS010PNP420G
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Digital electrical pressure switch made of plastic, for pressure measurement - Type EDS010PNP420G
The RIEGLER electr. pressure switch digital, G 1/8, 0-10 bar, 2xPNP + 1x4-20 mA switches electrical contacts at a set pressure value. The housing is made of plastic. The permissible medium temperature is between 0 °C and 50 °C. Protection class IP 40 / IP 65 (with hose). Automatic pressure monitoring without manual control.
Field of application
Typical areas of application: Pressure monitoring, compressor control and system safety.
| Housing | Plastic |
| Protection class | IP 40 / IP 65 (with hose) |
| Electrical connection | Cable 2 m, open cable ends |
| Medium temperature min. | 0 °C |
| Medium temperature max. | 50 °C |
| Ambient temperature min. | -10 °C |
| Ambient temperature max. | 60 °C |
| Wetted parts | MSV |
| Output signal | 2 x PNP out + 1 x analog out 4 - 20 mA |
| Accuracy | ±2 % F.S. ± 1 digit |
| Auxiliary energy | 12 - 24 V DC ± 10 % |
| Process connection | G 1/8 |
| Measuring range min. bar | 0 |
| Measuring range max. bar | 10 |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

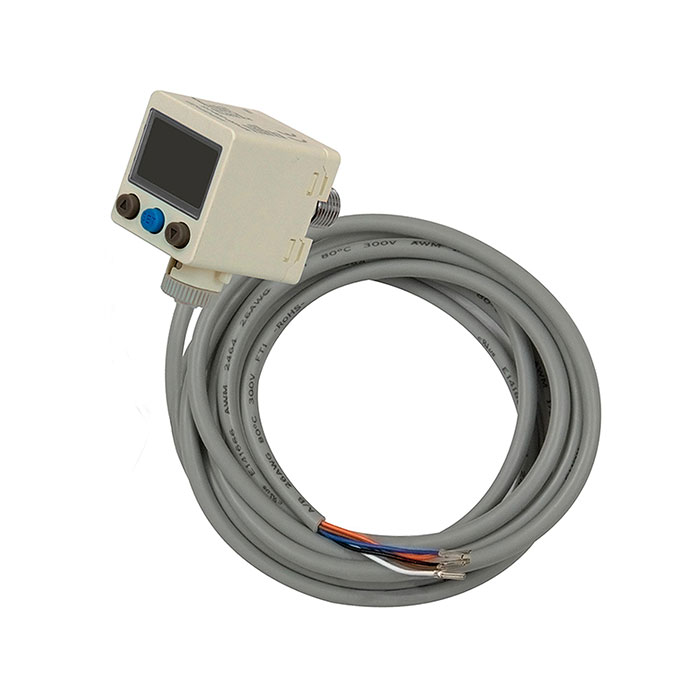

![[133157] RIEGLER Electronic pressure switch, digital display, G 1/8 ET, 0 - 10 bar](/web/image/product.template/202807/image_128/%5B133157%5D%20RIEGLER%20Electronic%20pressure%20switch%2C%20digital%20display%2C%20G%201-8%20ET%2C%200%20-%2010%20bar?unique=500025b)
|
Type number: EDS010NPN15G |
88.95 € | |
![[133158] RIEGLER Electronic pressure switch, digital display, G 1/8 ET, 0 - 10 bar](/web/image/product.template/202808/image_128/%5B133158%5D%20RIEGLER%20Electronic%20pressure%20switch%2C%20digital%20display%2C%20G%201-8%20ET%2C%200%20-%2010%20bar?unique=96c410c)
|
Type number: EDS010NPN420G |
88.95 € | |
![[133159] RIEGLER Electronic pressure switch, digital display, G 1/8 ET, 0 - 10 bar](/web/image/product.template/202809/image_128/%5B133159%5D%20RIEGLER%20Electronic%20pressure%20switch%2C%20digital%20display%2C%20G%201-8%20ET%2C%200%20-%2010%20bar?unique=7beb22f)
|
Type number: EDS010PNP15G |
88.95 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[133153] RIEGLER Metal mounting bracket, horizontal](/web/image/product.template/202803/image_128/%5B133153%5D%20RIEGLER%20Metal%20mounting%20bracket%2C%20horizontal?unique=aa3e498)
|
Type number: EDS010-BFWW |
2.87 € | |
![[133154] RIEGLER Metal mounting bracket, vertical](/web/image/product.template/202804/image_128/%5B133154%5D%20RIEGLER%20Metal%20mounting%20bracket%2C%20vertical?unique=208f0c8)
|
Type number: EDS010-BFWS |
2.87 € | |

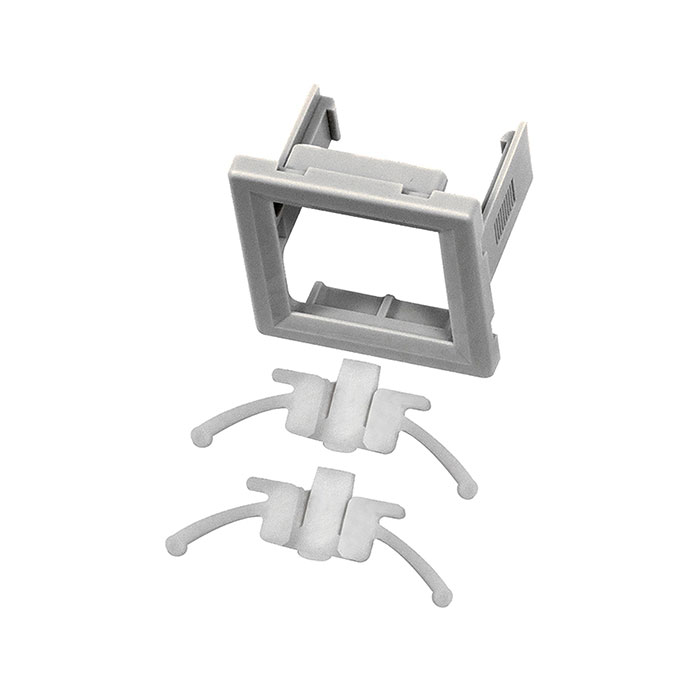

![[133155] RIEGLER Plastic installation frame](/web/image/product.template/202805/image_128/%5B133155%5D%20RIEGLER%20Plastic%20installation%20frame?unique=1358b34)
|
Type number: EDS010-EBR |
3.76 € | |

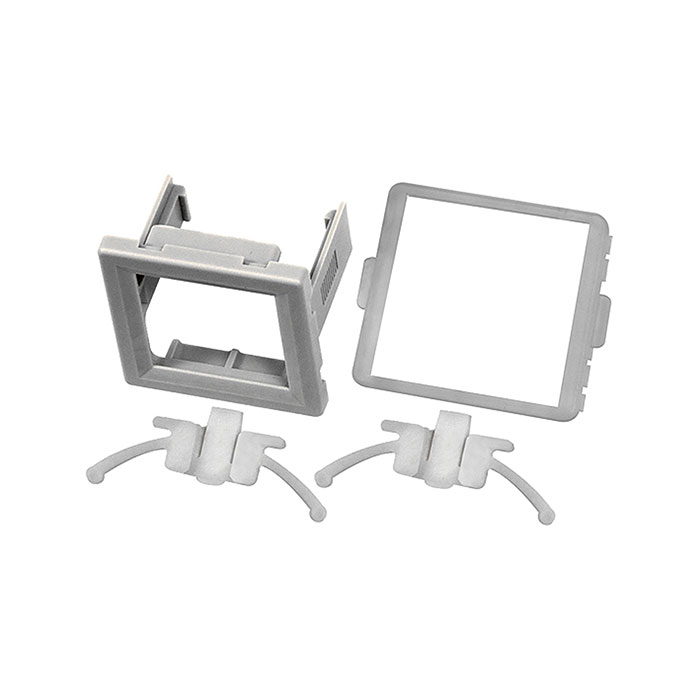

![[133156] RIEGLER Installation frame with plastic protective cover](/web/image/product.template/202806/image_128/%5B133156%5D%20RIEGLER%20Installation%20frame%20with%20plastic%20protective%20cover?unique=4db9e2d)
|
Type number: EDS010-EBRSA |
5.63 € | |
