RIEGLER Stainless steel filter regulator, 1.4401, G 3/8, 1.7 - 17.5 bar
Type number: 580FRM1-38-17
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Stainless steel filter regulator, 1.4401, with secondary venting (reversible), incl. pressure gauge, BG 1, G 3/8, control range 1.7 - 17.5 bar
| Inlet pressure max. | 30 bar |
| Housing | Stainless steel 1.4401 (AISI 316) |
| Sealing material | NBR |
| Membrane | NBR/PTFE |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Filter fineness | 25 µm |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 3/8 |
| Flow rate | 3200 l/min |
| Control range min. | 1.7 bar |
| Control range max. | 17.5 bar |
| Condensate drain | Manual drain valve |
| BG | 1 |
| A | 64 mm |
| B | 271 mm |
| C | 117 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133540] RIEGLER Stainless steel filter regulator, 1.4401, G 1/4, 1.7 - 17.5 bar](/web/image/product.template/202908/image_128/%5B133540%5D%20RIEGLER%20Stainless%20steel%20filter%20regulator%2C%201.4401%2C%20G%201-4%2C%201.7%20-%2017.5%20bar?unique=3ca9428)
|
Type number: 580FRM1-14-17 |
423.52 € | |

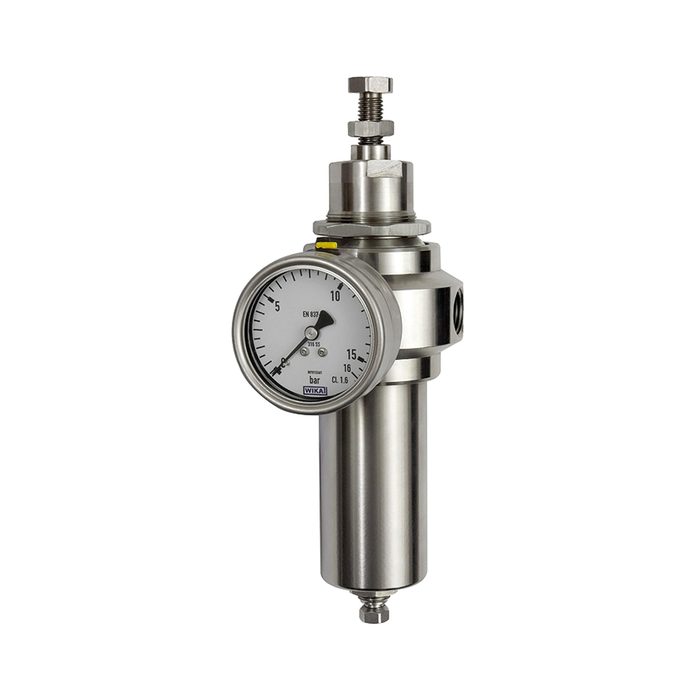

![[133546] RIEGLER Stainless steel filter regulator, 1.4401, G 3/4, 1.7 - 17.5 bar](/web/image/product.template/202914/image_128/%5B133546%5D%20RIEGLER%20Stainless%20steel%20filter%20regulator%2C%201.4401%2C%20G%203-4%2C%201.7%20-%2017.5%20bar?unique=db30ad6)
|
Type number: 580FRM3-34-17 |
516.52 € | |
![[133541] RIEGLER Stainless steel filter regulator, 1.4401, G 3/8, 0.4 - 4.0 bar](/web/image/product.template/202909/image_128/%5B133541%5D%20RIEGLER%20Stainless%20steel%20filter%20regulator%2C%201.4401%2C%20G%203-8%2C%200.4%20-%204.0%20bar?unique=7de9414)
|
Type number: 580FRM1-38-4 |
423.52 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[137113] RIEGLER Mounting bracket for stainless steel pressure/filter regulator](/web/image/product.template/207790/image_128/%5B137113%5D%20RIEGLER%20Mounting%20bracket%20for%20stainless%20steel%20pressure-filter%20regulator?unique=f730d28)
|
Type number: 580RM-BW |
20.56 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

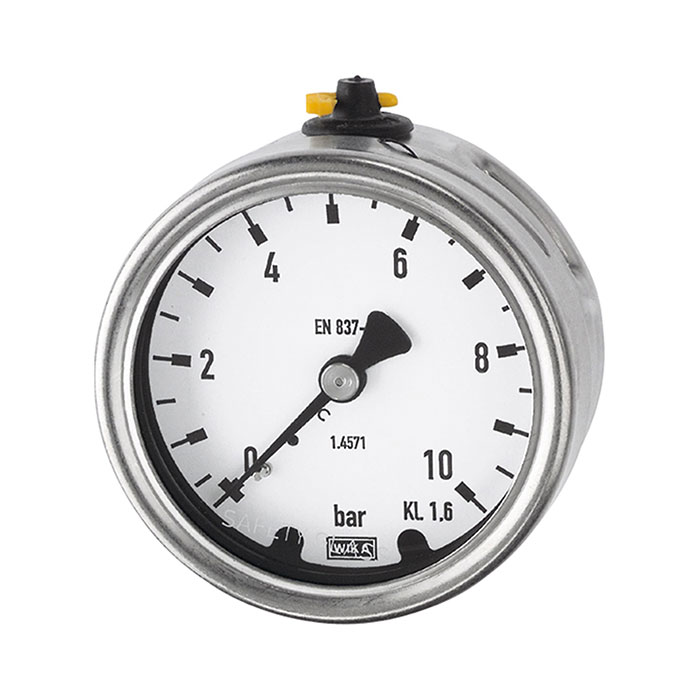

![[102511] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 25 bar, Ø 63](/web/image/product.template/170483/image_128/%5B102511%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar%2C%20%C3%98%2063?unique=94cb08a)
|
Type number: 4086 |
113.69 € | |
![[137119] RIEGLER Replacement filter element for filter and filter regulator](/web/image/product.template/207796/image_128/%5B137119%5D%20RIEGLER%20Replacement%20filter%20element%20for%20filter%20and%20filter%20regulator?unique=5b48db9)
|
Type number: 580FM-EF |
38.35 € | |

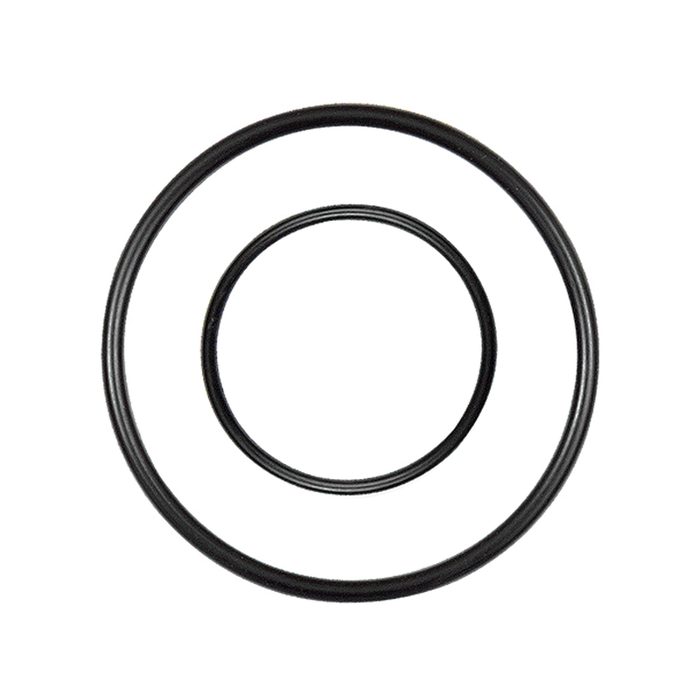

![[137121] RIEGLER Replacement seal for stainless steel filter and filter regulator](/web/image/product.template/207798/image_128/%5B137121%5D%20RIEGLER%20Replacement%20seal%20for%20stainless%20steel%20filter%20and%20filter%20regulator?unique=61f6528)
|
Type number: 580FM1-ED |
3.21 € | |
![[137117] RIEGLER Stainless steel container for filter and filter regulator](/web/image/product.template/207794/image_128/%5B137117%5D%20RIEGLER%20Stainless%20steel%20container%20for%20filter%20and%20filter%20regulator?unique=1c131e8)
|
Type number: 580FM-BMA |
119.96 € | |

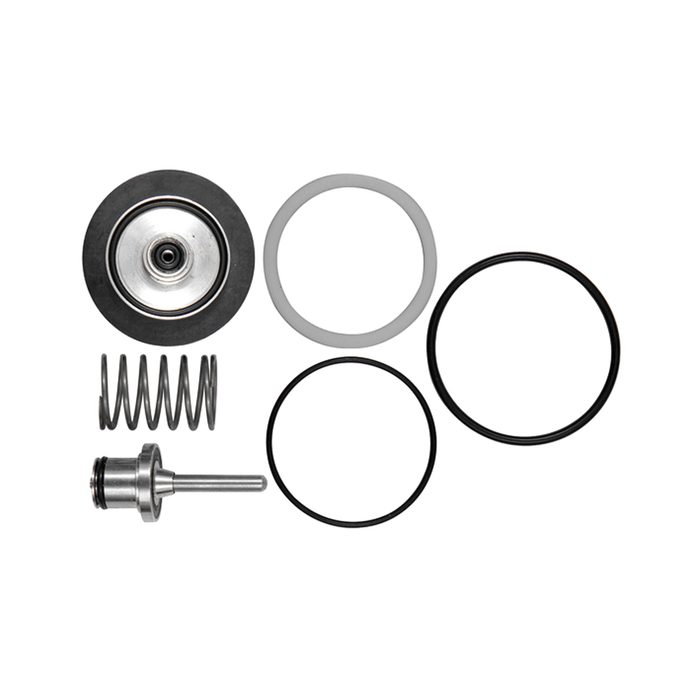

![[137114] RIEGLER Wear part set for stainless steel pressure/filter regulator](/web/image/product.template/207791/image_128/%5B137114%5D%20RIEGLER%20Wear%20part%20set%20for%20stainless%20steel%20pressure-filter%20regulator?unique=61a58ff)
|
Type number: 580RM1-VS |
43.04 € | |
