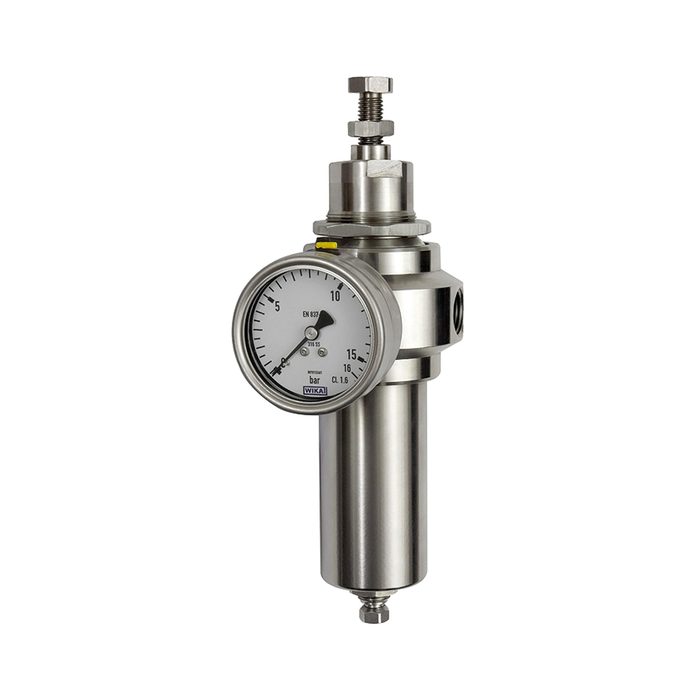

RIEGLER Stainless steel filter regulator, 1.4401, G 3/4, 1.7 - 17.5 bar
Type number: 580FRM3-34-17
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel filter regulator made of stainless steel 1.4401 (AISI 316), for compressed air treatment - type 580FRM3-34-17
The RIEGLER stainless steel filter regulator, 1.4401, BG 3, G 3/4, 1.7 - 17.5 bar combines compressed air filtration and pressure regulation in one compact device. The housing is made of stainless steel 1.4401 (AISI 316) with NBR seals. The control range extends from 1.7 bar to 17.5 bar at an inlet pressure of max. 30 bar. Connection thread G 3/4 - suitable for common industry standards. The flow rate is 9630 l/min (at P1 = 10 bar, P2 = 6 bar and pressure drop Δp ≤ 1 bar). Filter fineness 25 µm. Saves installation space and simplifies compressed air treatment.
Field of application
Typical areas of application: Compressed air supply in production, trade and automation.
| Inlet pressure max. | 30 bar |
| Housing | Stainless steel 1.4401 (AISI 316) |
| Sealing material | NBR |
| Membrane | NBR/PTFE |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> ‰¤ 1 bar |
| Filter fineness | 25 µm |
| Medium temperature max. | 80 °C |
| Ambient temperature max. | 80 °C |
| Thread | G 3/4 |
| Flow rate | 9630 l/min |
| Control range min. | 1.7 bar |
| Control range max. | 17.5 bar |
| Condensate drain | Manual drain valve |
| BG | 3 |
| A | 82 mm |
| B | 275 mm |
| C | 123 mm |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[133540] RIEGLER Stainless steel filter regulator, 1.4401, G 1/4, 1.7 - 17.5 bar](/web/image/product.template/202908/image_128/%5B133540%5D%20RIEGLER%20Stainless%20steel%20filter%20regulator%2C%201.4401%2C%20G%201-4%2C%201.7%20-%2017.5%20bar?unique=5fdf42c)
|
Type number: 580FRM1-14-17 |
421.41 € | |
![[133541] RIEGLER Stainless steel filter regulator, 1.4401, G 3/8, 0.4 - 4.0 bar](/web/image/product.template/202909/image_128/%5B133541%5D%20RIEGLER%20Stainless%20steel%20filter%20regulator%2C%201.4401%2C%20G%203-8%2C%200.4%20-%204.0%20bar?unique=38d1619)
|
Type number: 580FRM1-38-4 |
421.41 € | |
![[133542] RIEGLER Stainless steel filter regulator, 1.4401, G 3/8, 1.7 - 17.5 bar](/web/image/product.template/202910/image_128/%5B133542%5D%20RIEGLER%20Stainless%20steel%20filter%20regulator%2C%201.4401%2C%20G%203-8%2C%201.7%20-%2017.5%20bar?unique=9f370a5)
|
Type number: 580FRM1-38-17 |
421.41 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[137113] RIEGLER Mounting bracket for stainless steel pressure/filter regulator](/web/image/product.template/207790/image_128/%5B137113%5D%20RIEGLER%20Mounting%20bracket%20for%20stainless%20steel%20pressure-filter%20regulator?unique=f910370)
|
Type number: 580RM-BW |
14.80 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[102511] RIEGLER Pressure gauge, CrNi steel, rear centric, G 1/4, 0 - 25 bar, Ø 63](/web/image/product.template/170483/image_128/%5B102511%5D%20RIEGLER%20Pressure%20gauge%2C%20CrNi%20steel%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2025%20bar%2C%20%C3%98%2063?unique=d33d8a1)
|
Type number: 4086 |
112.13 € | |
![[137119] RIEGLER Replacement filter element for filter and filter regulator](/web/image/product.template/207796/image_128/%5B137119%5D%20RIEGLER%20Replacement%20filter%20element%20for%20filter%20and%20filter%20regulator?unique=f910370)
|
Type number: 580FM-EF |
27.61 € | |

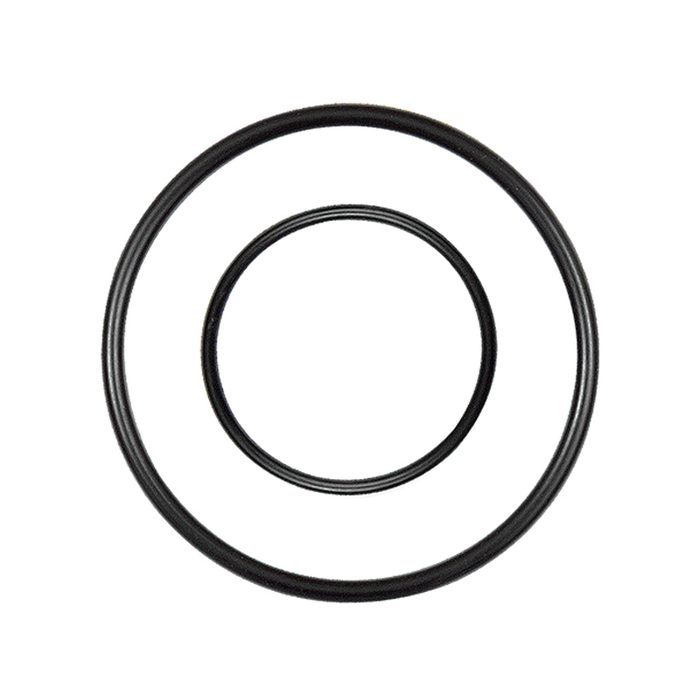

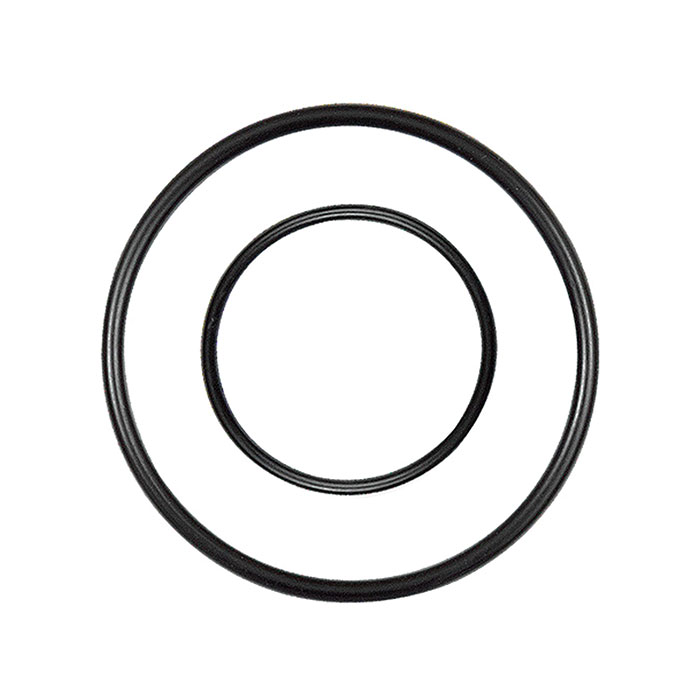

![[137122] RIEGLER Replacement seal for stainless steel filter and filter regulator](/web/image/product.template/207799/image_128/%5B137122%5D%20RIEGLER%20Replacement%20seal%20for%20stainless%20steel%20filter%20and%20filter%20regulator?unique=0f035d8)
|
Type number: 580FM3-ED |
2.14 € | |
![[137117] RIEGLER Stainless steel container for filter and filter regulator](/web/image/product.template/207794/image_128/%5B137117%5D%20RIEGLER%20Stainless%20steel%20container%20for%20filter%20and%20filter%20regulator?unique=f910370)
|
Type number: 580FM-BMA |
86.38 € | |

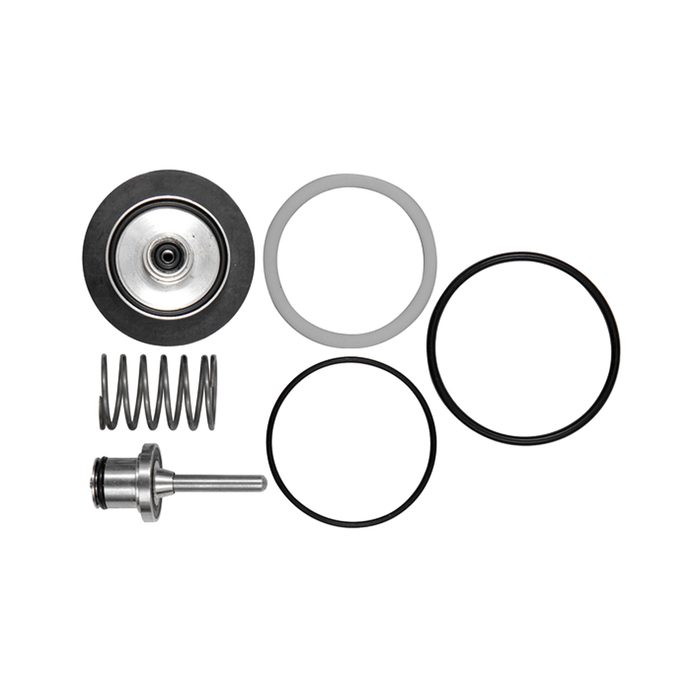

![[137115] RIEGLER Wear part set for stainless steel pressure/filter regulator](/web/image/product.template/207792/image_128/%5B137115%5D%20RIEGLER%20Wear%20part%20set%20for%20stainless%20steel%20pressure-filter%20regulator?unique=a00b7d5)
|
