RIEGLER Bracket 90°, red. IT/IT Rp1 1/2, Rp1/2, black malleable cast iron
Type number: TFW 90-11212
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Elbow 90 made of black malleable cast iron B350-10 Design Symbol A, for pipeline construction - Type TFW 90-11212
The RIEGLER elbow 90, 90°, IG/IG, red. Rp 1 1/2, Rp 1/2, galvanized malleable iron connects pipes permanently and resiliently - particularly robust. The housing is made of black malleable cast iron B350-10 design symbol A. The temperature range extends between -20 °C and 300 °C. Extremely robust and durable - even at high temperatures.
Field of application
Typical areas of application: Piping systems in industry, building services and compressed air distribution.
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread standard | according to ISO 7-1 |
| Thread 1 | Rp 1 1/2 |
| Thread 2 | Rp 1/2 |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

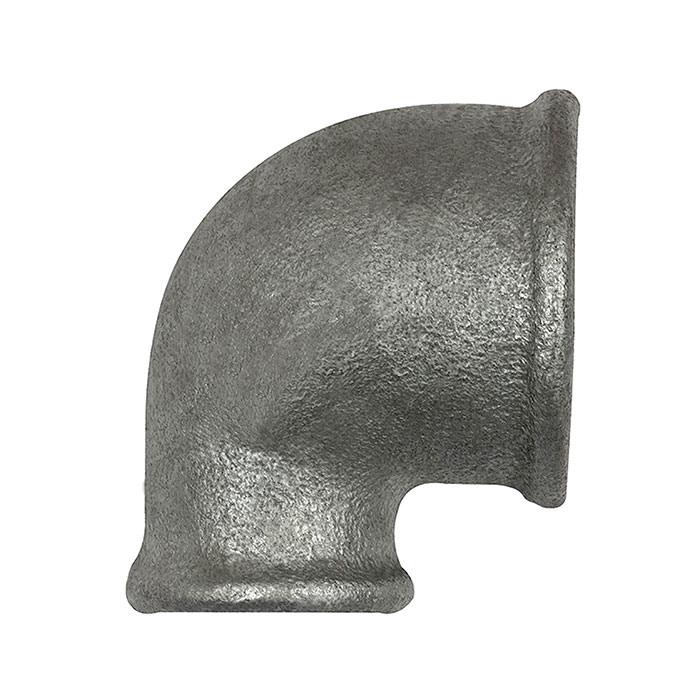

![[133566] RIEGLER Bracket 90° red. IT/IT Rp11/2, Rp11/4, black malleable cast iron](/web/image/product.template/202934/image_128/%5B133566%5D%20RIEGLER%20Bracket%2090%C2%B0%20red.%20IT-IT%20Rp11-2%2C%20Rp11-4%2C%20black%20malleable%20cast%20iron?unique=b49614c)
|
Type number: TFW 90-112114 |
6.05 € | |
![[133564] RIEGLER Bracket 90°, red. IT/IT Rp 1 1/4, Rp 1, black malleable cast iron](/web/image/product.template/202932/image_128/%5B133564%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp%201%201-4%2C%20Rp%201%2C%20black%20malleable%20cast%20iron?unique=6f61b91)
|
Type number: TFW 90-11410 |
3.39 € | |
![[133560] RIEGLER Bracket 90°, red. IT/IT Rp 1/2, Rp 3/8, black malleable cast iron](/web/image/product.template/202928/image_128/%5B133560%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp%201-2%2C%20Rp%203-8%2C%20black%20malleable%20cast%20iron?unique=1e7d61b)
|
Type number: TFW 90-1238 |
1.23 € | |
![[133562] RIEGLER Bracket 90°, red. IT/IT Rp 1, Rp 1/2, black malleable cast iron](/web/image/product.template/202930/image_128/%5B133562%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp%201%2C%20Rp%201-2%2C%20black%20malleable%20cast%20iron?unique=0bad150)
|
Type number: TFW 90-1012 |
1.99 € | |

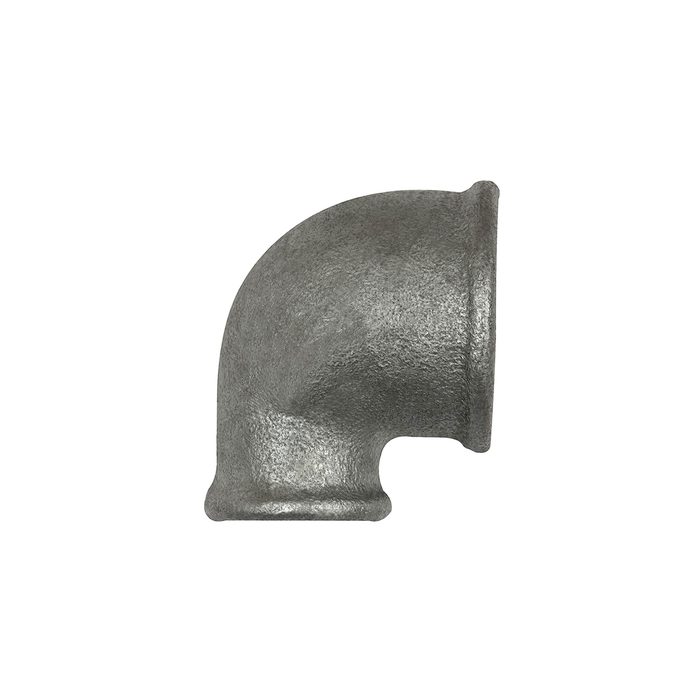

![[133563] RIEGLER Bracket 90°, red. IT/IT Rp 1, Rp 3/4, black malleable cast iron](/web/image/product.template/202931/image_128/%5B133563%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp%201%2C%20Rp%203-4%2C%20black%20malleable%20cast%20iron?unique=832a8d2)
|
