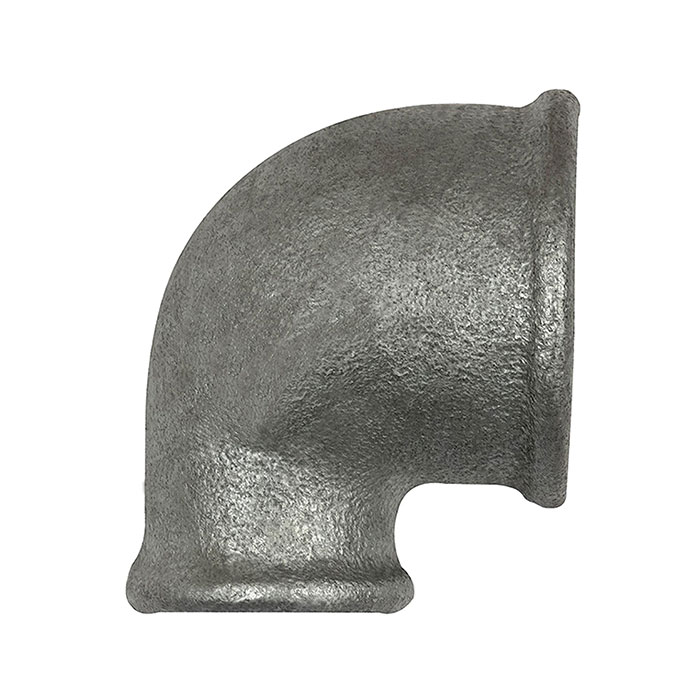

RIEGLER Bracket 90° red. IT/IT Rp11/2, Rp11/4, black malleable cast iron
Type number: TFW 90-112114
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Winkel 90, 90°, IG/IG, red. Rp 1 1/2, Rp 1 1/4, Temperguss verzinkt,Betriebstemperatur -20 °C bis 300 °C, ISO 7-1
| Temperature range min. | -20 °C |
| Temperature range max. | 300 °C |
| Material | black malleable cast iron B350-10 Design Symbol A |
| Surface | hot-dip galvanized |
| Thread standard | according to ISO 7-1 |
| Thread 1 | Rp 1 1/2 |
| Thread 2 | Rp 1 1/4 |
| Class name | FLEX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

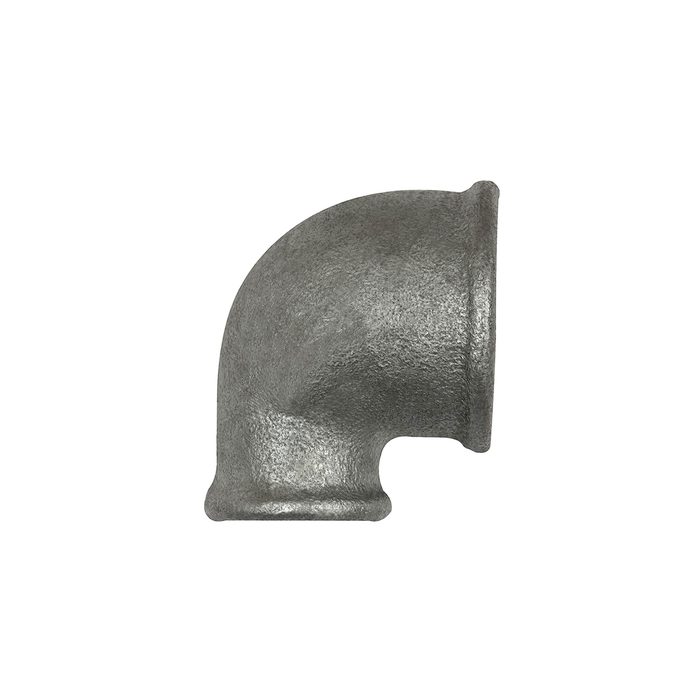

![[133565] RIEGLER Bracket 90°, red. IT/IT Rp1 1/2, Rp1/2, black malleable cast iron](/web/image/product.template/202933/image_128/%5B133565%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp1%201-2%2C%20Rp1-2%2C%20black%20malleable%20cast%20iron?unique=458593e)
|
Type number: TFW 90-11212 |
6.01 € | |
![[133564] RIEGLER Bracket 90°, red. IT/IT Rp 1 1/4, Rp 1, black malleable cast iron](/web/image/product.template/202932/image_128/%5B133564%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp%201%201-4%2C%20Rp%201%2C%20black%20malleable%20cast%20iron?unique=602d537)
|
Type number: TFW 90-11410 |
3.39 € | |
![[133560] RIEGLER Bracket 90°, red. IT/IT Rp 1/2, Rp 3/8, black malleable cast iron](/web/image/product.template/202928/image_128/%5B133560%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp%201-2%2C%20Rp%203-8%2C%20black%20malleable%20cast%20iron?unique=98d8349)
|
Type number: TFW 90-1238 |
1.23 € | |
![[133562] RIEGLER Bracket 90°, red. IT/IT Rp 1, Rp 1/2, black malleable cast iron](/web/image/product.template/202930/image_128/%5B133562%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp%201%2C%20Rp%201-2%2C%20black%20malleable%20cast%20iron?unique=0597e92)
|
Type number: TFW 90-1012 |
1.99 € | |
![[133563] RIEGLER Bracket 90°, red. IT/IT Rp 1, Rp 3/4, black malleable cast iron](/web/image/product.template/202931/image_128/%5B133563%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp%201%2C%20Rp%203-4%2C%20black%20malleable%20cast%20iron?unique=ac091bf)
|
Type number: TFW 90-1034 |
2.23 € | |
![[133568] RIEGLER Bracket 90°, red. IT/IT Rp2 1/2,Rp1 1/2,black malleable cast iron](/web/image/product.template/202936/image_128/%5B133568%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp2%201-2%2CRp1%201-2%2Cblack%20malleable%20cast%20iron?unique=bac0052)
|
Type number: TFW 90-212112 |
9.25 € | |
![[133567] RIEGLER Bracket 90°, red. IT/IT Rp 2, Rp 1, black malleable cast iron](/web/image/product.template/202935/image_128/%5B133567%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp%202%2C%20Rp%201%2C%20black%20malleable%20cast%20iron?unique=8ab0f0a)
|
Type number: TFW 90-21 |
8.58 € | |
![[133561] RIEGLER Bracket 90°, red. IT/IT Rp 3/4, Rp 1/2, black malleable cast iron](/web/image/product.template/202929/image_128/%5B133561%5D%20RIEGLER%20Bracket%2090%C2%B0%2C%20red.%20IT-IT%20Rp%203-4%2C%20Rp%201-2%2C%20black%20malleable%20cast%20iron?unique=97ab637)
|
Type number: TFW 90-3412 |
1.37 € | |
