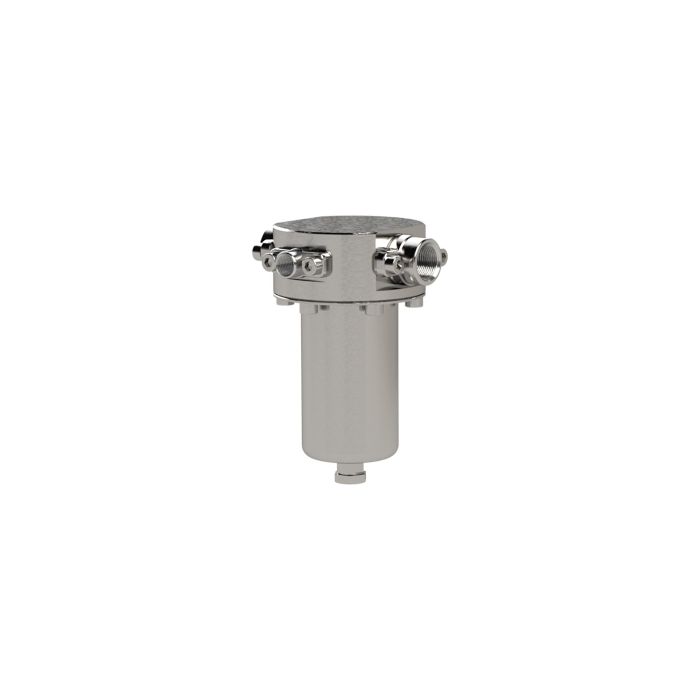

RIEGLER Stainless steel filter, 1.4404, 50 µm, G 1/2
Type number: FES.G1250
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Stainless steel filter made of stainless steel 1.4404 (AISI 316L), for compressed air treatment, G 1/2 - type FES.G1250
The RIEGLER stainless steel filter, 1.4404, 50 µm, G 1/2 removes particles, oil and condensate from the compressed air and protects sensitive pneumatic components. The housing is made of stainless steel 1.4404 (AISI 316L) with FKM seals. The maximum inlet pressure is 50 bar. The permissible medium temperature is between -20 °C and 80 °C. Connection thread G 1/2 - suitable for common industry standards. Filter fineness 50 µm. Significantly extends the service life of downstream components.
Field of application
Typical areas of application: Compressed air preparation upstream of valves, cylinders and tools.
| A | 109 mm |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Exception | no exception |
| B | 140 mm |
| C | 123 mm |
| CAS No. SVHC 1 | none CAS No. |
| Sealing material | FKM |
| Flow 1 | 2500 l/min |
| Flow rate measurement | at P<sub>1</sub> = 7 bar and pressure drop Î"<sub>p</sub> ‰¤ 0.33 bar |
| Inlet pressure max. | 50 bar |
| Filter fineness | 50 µm |
| Housing | Stainless steel 1.4404 (AISI 316L) |
| Thread | G 1/2 |
| Class name | STAINLESS STEEL |
| Condensate drain | Screw plug |
| Medium temperature max. | 80 °C |
| Medium temperature min. | -20 °C |
| REACH Info | no SVHC substance contained |
| REACH SVHC1 Substance Name | no |
| RoHS Article of the Directive | no entry |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS material information | RoHS compliant |
| Ambient temperature max. | 80 °C |
| Ambient temperature min. | -20 °C |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

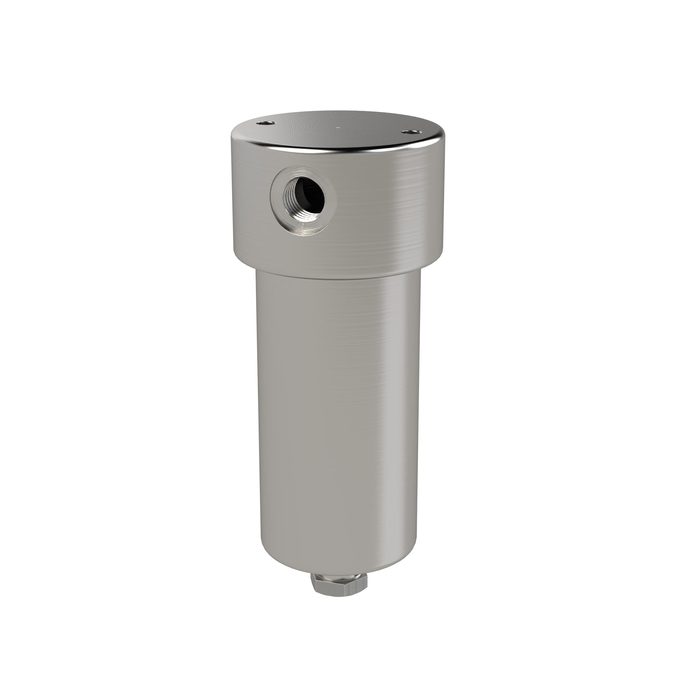

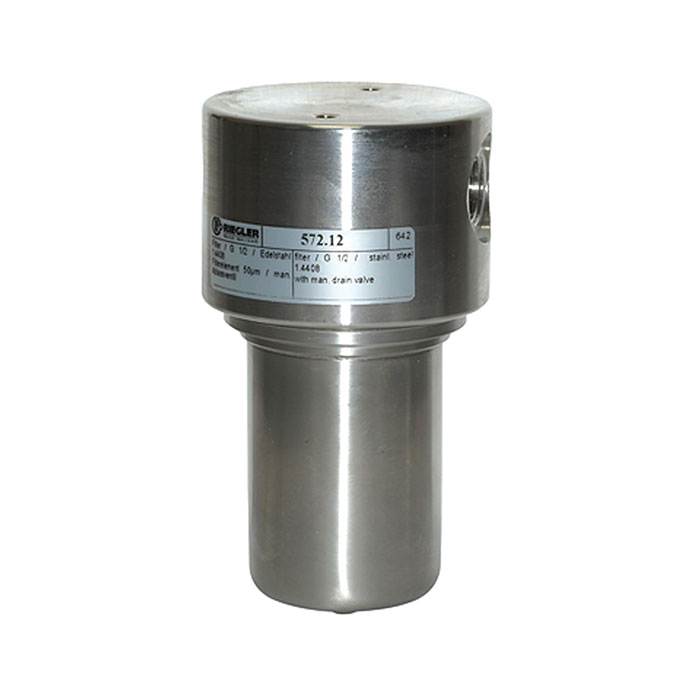

![[101211] RIEGLER Stainless steel filter, 1.4404, 50 µm, G 1/4](/web/image/product.template/140647/image_128/%5B101211%5D%20RIEGLER%20Stainless%20steel%20filter%2C%201.4404%2C%2050%20%C2%B5m%2C%20G%201-4?unique=73baa0a)
|
Type number: 572.14 |
297.37 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

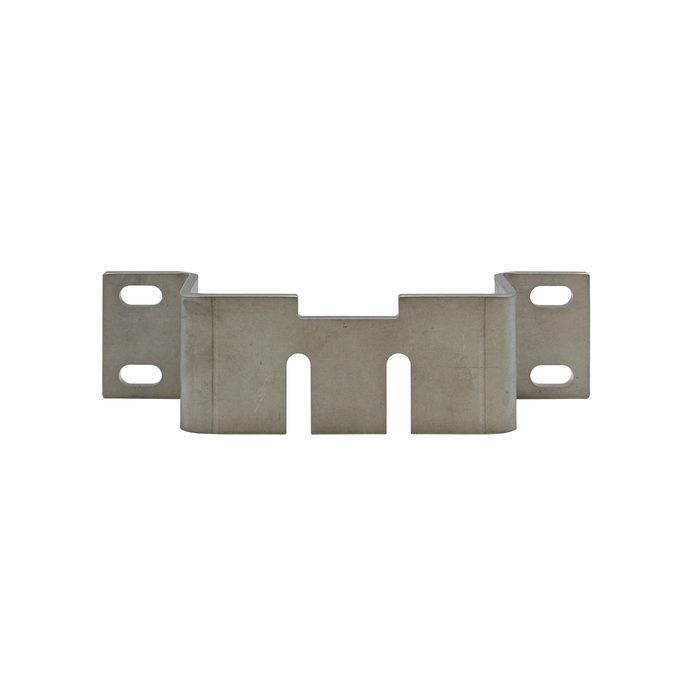

![[145739] RIEGLER Mounting bracket made of stainless steel 1.4401, G 1/2](/web/image/product.template/279357/image_128/%5B145739%5D%20RIEGLER%20Mounting%20bracket%20made%20of%20stainless%20steel%201.4401%2C%20G%201-2?unique=e1c8e5d)
|
Type number: 576/7 |
48.89 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

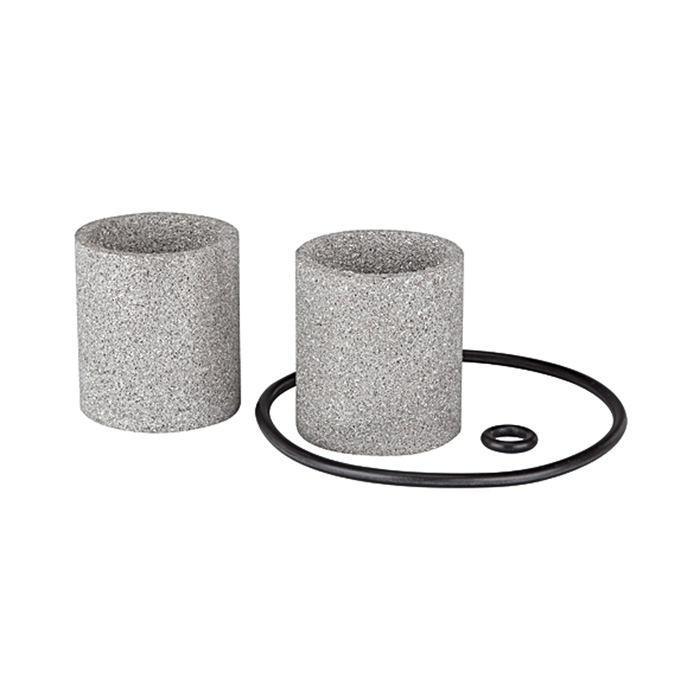

![[129674] RIEGLER Wear parts kit, stainless steel filter, 1.4404, G 1/2](/web/image/product.template/273025/image_128/%5B129674%5D%20RIEGLER%20Wear%20parts%20kit%2C%20stainless%20steel%20filter%2C%201.4404%2C%20G%201-2?unique=e370b4f)
|
Type number: VTSFES.G12 |
157.03 € | |
