RIEGLER Straight push-in connector, for hose exterior Ø 8 mm
Type number: 847.008 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Gerade Steckverbindung aus Edelstahl 1.4404, für Pneumatikinstallation, max. 20 bar – Typ 847.008 ES
Das RIEGLER Gerade Steckverbindung, für Schlauch-Außen-Ø 8, ES 1.4404 ermöglicht die schnelle, werkzeugfreie Verbindung von Druckluftleitungen – sicher abdichtend und sofort belastbar. Das Gehäuse besteht aus Edelstahl 1.4404 mit Dichtungen aus FPM. Der Betriebsdruckbereich liegt bei -0.98 bar bis 20 bar. Die Betriebstemperatur liegt zwischen -20 °C und 150 °C. Geeignet für Druckluft, korrosive Medien (soweit mit Material verträgl.). Schnelle Montage ohne Werkzeug – spart Zeit bei Installation und Umrüstung.
Einsatzbereich
Typische Anwendungsgebiete: Pneumatische Installationen, Maschinenverrohrung und Automatisierungstechnik.
| Medium | Compressed air, corrosive media (if compatible with material) |
| Sealing material | FPM |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 20 bar |
| Material | Stainless steel 1.4404 |
| Area of application | Compressed air systems, chemicals and food, pharmaceuticals, packaging, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Suitable pipe material | PVDF, PTFE, PA, PU |
| for hose outer Ø | 8 mm |
| L1 | 35.6 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135245] RIEGLER Straight push-in connector, for hose exterior Ø 10 mm](/web/image/product.template/205901/image_128/%5B135245%5D%20RIEGLER%20Straight%20push-in%20connector%2C%20for%20hose%20exterior%20%C3%98%2010%20mm?unique=9efb535)
|
Type number: 847.010 ES |
26.05 € | |

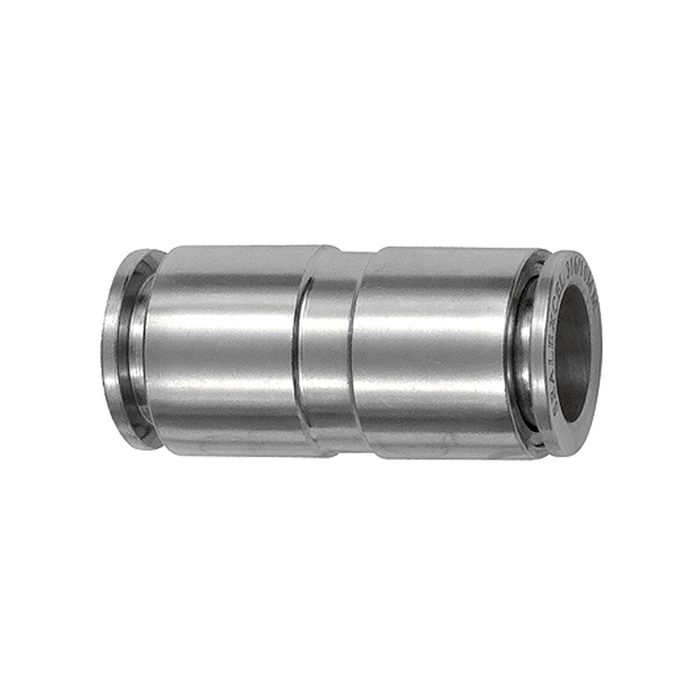

![[135246] RIEGLER Straight push-in connector, for hose exterior Ø 12 mm](/web/image/product.template/205902/image_128/%5B135246%5D%20RIEGLER%20Straight%20push-in%20connector%2C%20for%20hose%20exterior%20%C3%98%2012%20mm?unique=9efb535)
|
