RIEGLER Straight push-in connector, for hose exterior Ø 14 mm
Type number: 847.014 ES
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Straight push-in connector made of stainless steel 1.4404, for pneumatic installation, max. 20 bar - Type 847.014 ES
The RIEGLER straight push-in connector, for hose outer Ø 14, ES 1.4404 enables the quick, tool-free connection of compressed air lines - securely sealing and immediately loadable. The housing is made of stainless steel 1.4404 with FPM seals. The operating pressure range is -0.98 bar to 20 bar. The operating temperature is between -20 °C and 150 °C. Suitable for compressed air, corrosive media (if compatible with material). Quick assembly without tools - saves time during installation and conversion.
Field of application
Typical areas of application: Pneumatic installations, machine piping and automation technology.
| Medium | Compressed air, corrosive media (if compatible with material) |
| Sealing material | FPM |
| Medium temperature min. | -20 °C |
| Medium temperature max. | 150 °C |
| Working pressure min. | -0.98 bar |
| Working pressure max. | 20 bar |
| Material | Stainless steel 1.4404 |
| Area of application | Compressed air systems, chemicals and food, pharmaceuticals, packaging, vacuum |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 150 °C |
| Suitable pipe material | PVDF, PTFE, PA, PU |
| for hose outer Ø | 14 mm |
| L1 | 40.8 mm |
| REACH SVHC1 Substance Name | no |
| CAS No. SVHC 1 | none CAS No. |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | no entry |
| Share of SVHC substance in % for RoHS | 0 |
| Exception | no exception |
| REACH Info | no SVHC substance contained |
| Share of SVHC SCIP | no SVHC substance |
| Proportion of SVHC substance in SCIP | no SVHC substance contained |
| Material identification | none |
| Class name | STAINLESS STEEL |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135245] RIEGLER Straight push-in connector, for hose exterior Ø 10 mm](/web/image/product.template/205901/image_128/%5B135245%5D%20RIEGLER%20Straight%20push-in%20connector%2C%20for%20hose%20exterior%20%C3%98%2010%20mm?unique=3f2c452)
|
Type number: 847.010 ES |
26.05 € | |
![[135246] RIEGLER Straight push-in connector, for hose exterior Ø 12 mm](/web/image/product.template/205902/image_128/%5B135246%5D%20RIEGLER%20Straight%20push-in%20connector%2C%20for%20hose%20exterior%20%C3%98%2012%20mm?unique=ae192f8)
|
Type number: 847.012 ES |
39.09 € | |
![[135248] RIEGLER Straight push-in connector, for hose exterior Ø 16 mm](/web/image/product.template/205904/image_128/%5B135248%5D%20RIEGLER%20Straight%20push-in%20connector%2C%20for%20hose%20exterior%20%C3%98%2016%20mm?unique=ca51313)
|
Type number: 847.016 ES |
87.63 € | |

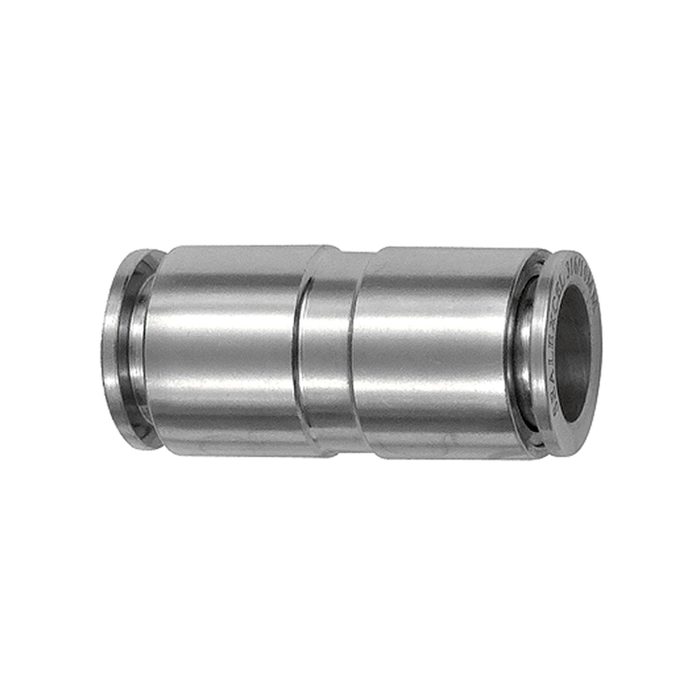

![[135242] RIEGLER Straight push-in connector, for hose exterior Ø 4 mm](/web/image/product.template/205898/image_128/%5B135242%5D%20RIEGLER%20Straight%20push-in%20connector%2C%20for%20hose%20exterior%20%C3%98%204%20mm?unique=be672cc)
|
