RIEGLER Flowmeter, DN 32, FL 32, 0.7 - 530 m³/h
Type number: DFMM32-FL32
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Flow meter for pressure measurement, max. 16 bar, compressed air, neutral gases - Type DFMM32-FL32
The RIEGLER flow meter, DN 32, FL 32, 0.7 - 530 m³/h measures pressure or temperature reliably and precisely. Designed for a maximum operating pressure of 16 bar. The temperature range extends between -30 °C and 80 °C. Suitable for compressed air, neutral gases. Operating voltage 24 V DC. Reliable measured values for safe processes.
Field of application
Typical areas of application: Pressure monitoring and temperature control.
| Temperature range min. | -30 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air, neutral gases |
| Measuring system | calorimetric measurement |
| Max. operating pressure | 16 bar |
| Output of the flow rate values | analog 4 - 20 mA, pulse output (galvanically isolated) |
| Operating voltage | 24 V DC |
| Display | Backlight |
| DN | 32 |
| Flange Ø D | 140 mm |
| Pitch circle Ø K | 100 mm |
| Flange | DIN EN 1092-1 |
| Number of screw holes | 4 x 18 |
| Tube inside Ø | 36 mm |
| L | 475 mm |
| H1 | 165.7 mm |
| Measuring range min. | 0.7 m³/h |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[135877] RIEGLER Flowmeter, DN 15, FL 15, 0.2 - 90 m³/h](/web/image/product.template/206231/image_128/%5B135877%5D%20RIEGLER%20Flowmeter%2C%20DN%2015%2C%20FL%2015%2C%200.2%20-%2090%20m%C2%B3-h?unique=27f685b)
|
Type number: DFMM15-FL15 |
1,440.19 € | |
![[135878] RIEGLER Flowmeter, DN 20, FL 20, 0.3 - 170 m³/h](/web/image/product.template/206232/image_128/%5B135878%5D%20RIEGLER%20Flowmeter%2C%20DN%2020%2C%20FL%2020%2C%200.3%20-%20170%20m%C2%B3-h?unique=d03b673)
|
Type number: DFMM20-FL20 |
1,546.87 € | |
![[135879] RIEGLER Flowmeter, DN 25, FL 25, 0.5 - 290 m³/h](/web/image/product.template/206233/image_128/%5B135879%5D%20RIEGLER%20Flowmeter%2C%20DN%2025%2C%20FL%2025%2C%200.5%20-%20290%20m%C2%B3-h?unique=ecad295)
|
Type number: DFMM25-FL25 |
1,612.26 € | |

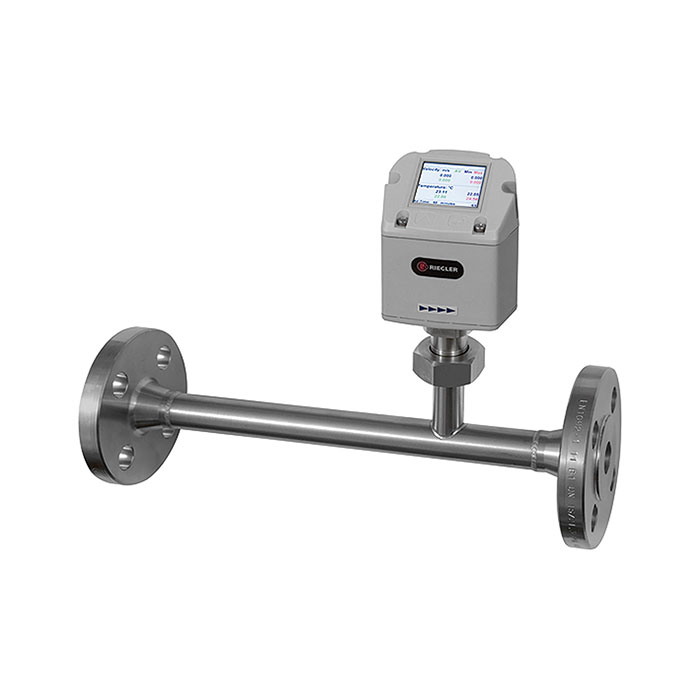

![[135881] RIEGLER Flowmeter, DN 40, FL 40, 1.0 - 730 m³/h](/web/image/product.template/206235/image_128/%5B135881%5D%20RIEGLER%20Flowmeter%2C%20DN%2040%2C%20FL%2040%2C%201.0%20-%20730%20m%C2%B3-h?unique=0c12660)
|
