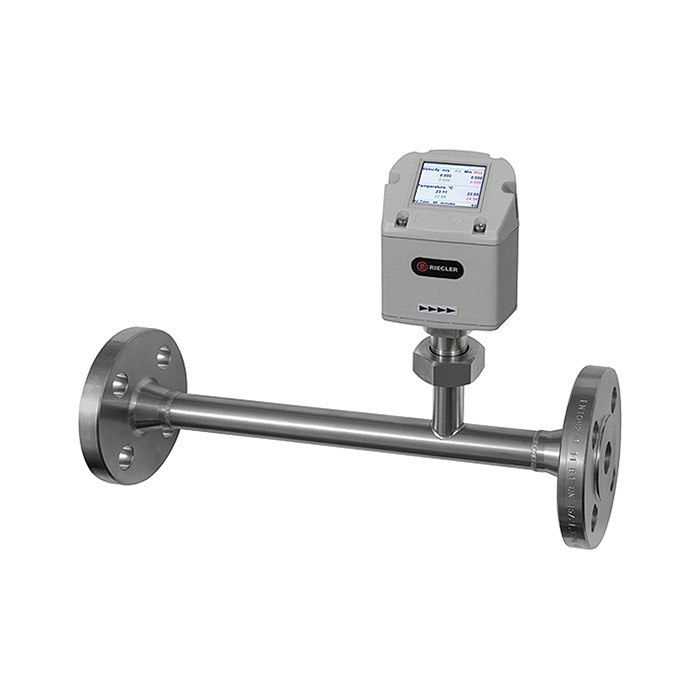

RIEGLER Flowmeter, DN 50, FL 50, 2.0 - 1195 m³/h
Type number: DFMM50-FL50
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Flow meter for pressure measurement, max. 16 bar, compressed air, neutral gases - Type DFMM50-FL50
The RIEGLER flow meter, DN 50, FL 50, 2.0 - 1195 m³/h measures pressure or temperature reliably and precisely. Designed for a maximum operating pressure of 16 bar. The temperature range extends between -30 °C and 80 °C. Suitable for compressed air, neutral gases. Operating voltage 24 V DC. Reliable measured values for safe processes.
Field of application
Typical areas of application: Pressure monitoring and temperature control.
| Temperature range min. | -30 °C |
| Temperature range max. | 80 °C |
| Medium | Compressed air, neutral gases |
| Measuring system | calorimetric measurement |
| Max. operating pressure | 16 bar |
| Output of the flow rate values | analog 4 - 20 mA, pulse output (galvanically isolated) |
| Operating voltage | 24 V DC |
| Display | Backlight |
| DN | 50 |
| Flange Ø D | 165 mm |
| Pitch circle Ø K | 125 mm |
| Flange | DIN EN 1092-1 |
| Number of screw holes | 4 x 18 |
| Tube inside Ø | 53.1 mm |
| L | 475 mm |
| H1 | 165.7 mm |
| Measuring range min. | 2.0 m³/h |
| Class name | MAX |
