RIEGLER Ball valve heavy duty design, Butterfly handle, IT/ET, G/R 1/4
Type number: 3340.12
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Ball valve, heavy-duty design, wing handle, female/male, nickel-plated brass, operating temp. -20 °C to 130 °C, G/R 1/4, DN 8, PN max. 80 bar
| Housing | Nickel-plated brass |
| Ball | Hard chrome-plated brass |
| Ball seal | PTFE |
| Spindle seal | PTFE |
| Wing handle | Aluminum, painted black |
| Operating temperature min. | -20 °C |
| Operating temperature max. | 130 °C |
| Thread | G/R 1/4 |
| DN | 8 |
| SW 1 | 18 mm |
| SW 2 | 18 mm |
| PN | 80 bar |
| Thread standard | G-thread DIN EN ISO 228-1, R-thread DIN EN 10226 (ISO 7-1) |
| A | 45 mm |
| B | 43 mm |
| L | 49 mm |
| E | 11 mm |
| F | 7 mm |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | CW617N |
| Thread material | Brass bright |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[103296] RIEGLER Ball valve heavy duty design, Butterfly handle, IT/ET, G/R 1](/web/image/product.template/171263/image_128/%5B103296%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Butterfly%20handle%2C%20IT-ET%2C%20G-R%201?unique=e446e23)
|
Type number: 3340.16 |
31.02 € | |
![[103294] RIEGLER Ball valve heavy duty design, Butterfly handle, IT/ET, G/R 1/2](/web/image/product.template/171261/image_128/%5B103294%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Butterfly%20handle%2C%20IT-ET%2C%20G-R%201-2?unique=b28b024)
|
Type number: 3340.14 |
13.23 € | |
![[103295] RIEGLER Ball valve heavy duty design, Butterfly handle, IT/ET, G/R 3/4](/web/image/product.template/171262/image_128/%5B103295%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Butterfly%20handle%2C%20IT-ET%2C%20G-R%203-4?unique=a1e15a3)
|
Type number: 3340.15 |
19.73 € | |
![[103293] RIEGLER Ball valve heavy duty design, Butterfly handle, IT/ET, G/R 3/8](/web/image/product.template/171260/image_128/%5B103293%5D%20RIEGLER%20Ball%20valve%20heavy%20duty%20design%2C%20Butterfly%20handle%2C%20IT-ET%2C%20G-R%203-8?unique=f9025ab)
|
Type number: 3340.13 |
10.53 € | |

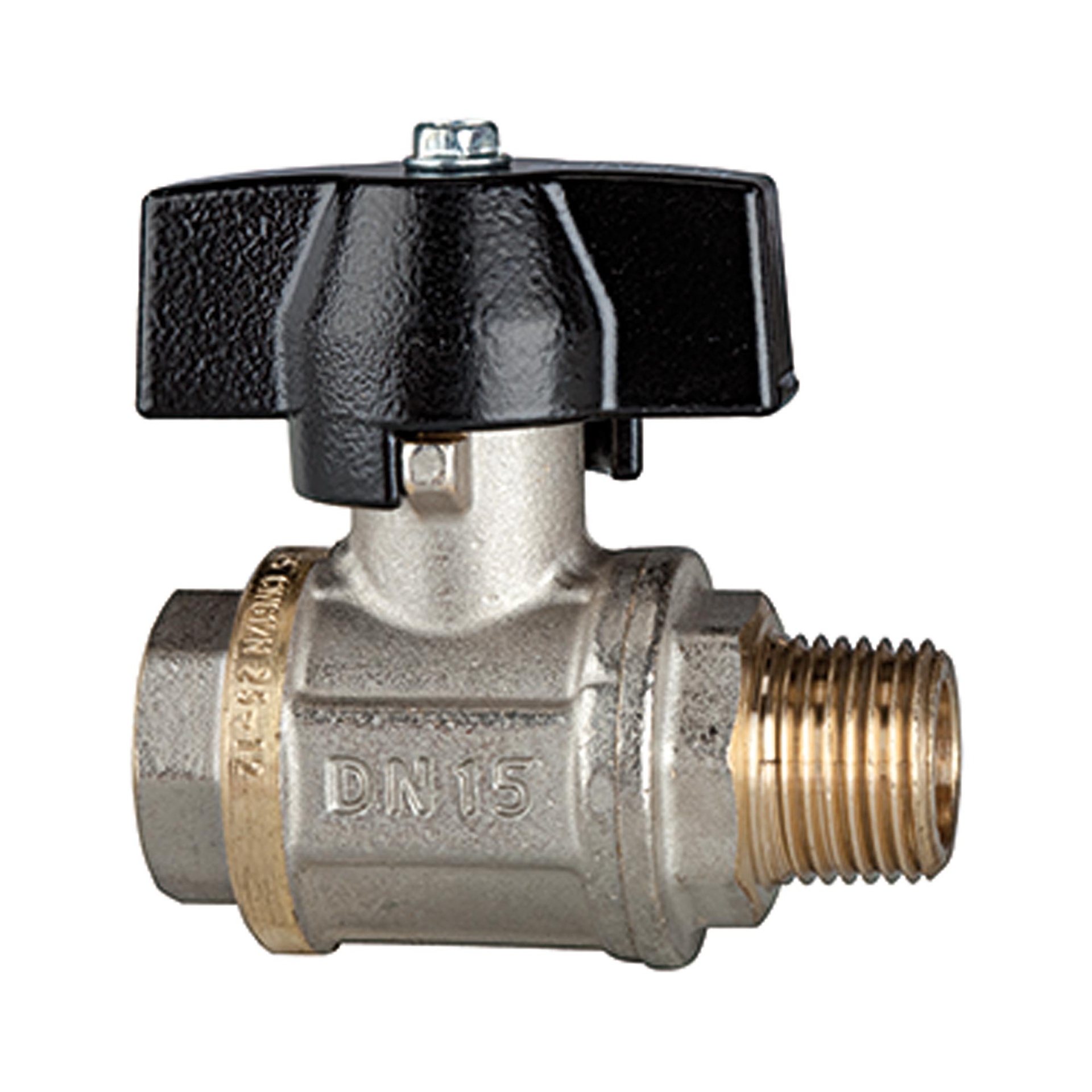

![[147610] RIEGLER ball valve, heavy-duty design, wing handle, IG/AG, MS nickel-plated, G 1/4](/web/image/product.template/284398/image_128/%5B147610%5D%20RIEGLER%20ball%20valve%2C%20heavy-duty%20design%2C%20wing%20handle%2C%20IG-AG%2C%20MS%20nickel-plated%2C%20G%201-4?unique=c662b8c)
|
