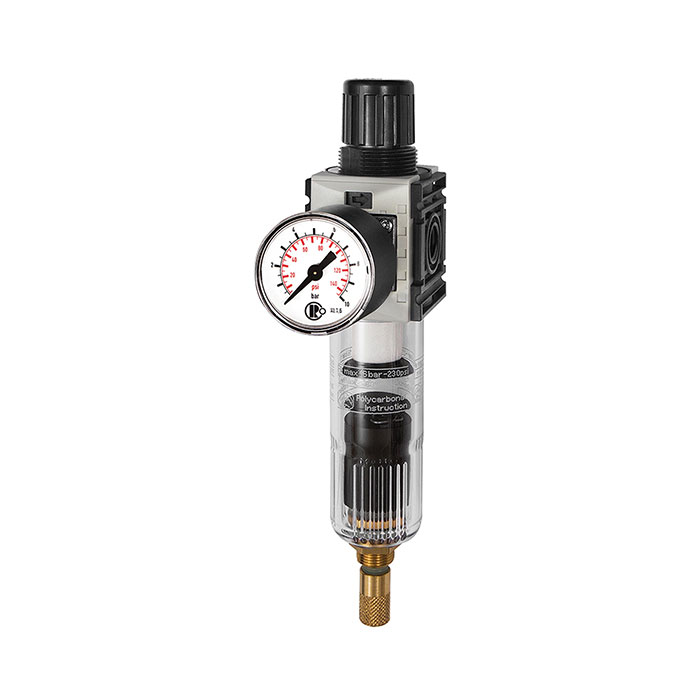

RIEGLER Filter regulator »FUTURA-mini« PC container, Size 0, G 1/4, 0.1-4
Type number: FUM 821-4-C
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Filter regulator "FUTURA-mini", PC bowl, standard mano, 5 µm, BG 0, G 1/4, PE 1.5 - 12 bar, control range 0.1-4 bar, drain VA (NC)
| Inlet pressure min. | 1.5 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Sealing material | NBR |
| Membrane | NBR |
| Flow rate measurement | at P<sub>1</sub> = 10 bar, P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Container | Polycarbonate container |
| Filter element | Cellpor (PE) |
| Filter fineness | 5 µm |
| Thread | G 1/4 |
| Flow rate | 1000 l/min |
| Control range min. | 0.1 bar |
| Control range max. | 4 bar |
| Condensate drain | fully automatic (pressureless closed) |
| Pressure gauge display min. | 0 bar |
| Pressure gauge display max. | 6 bar |
| BG | 0 |
| A | 43 mm |
| B | 206 mm |
| C | 63 mm |
| Class name | MAX |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[142408] RIEGLER Filter regulator »FUTURA-mini« PC container, Size 0, G 1/4, 0.1-4](/web/image/product.template/210714/image_128/%5B142408%5D%20RIEGLER%20Filter%20regulator%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20Size%200%2C%20G%201-4%2C%200.1-4?unique=968119e)
|
Type number: FUM 811-4 |
36.91 € | |
![[142411] RIEGLER Filter regulator »FUTURA-mini« PC container, Size 0, G 1/4, 0.1-4](/web/image/product.template/210717/image_128/%5B142411%5D%20RIEGLER%20Filter%20regulator%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20Size%200%2C%20G%201-4%2C%200.1-4?unique=3557cc7)
|
Type number: FUM 821-4 |
73.78 € | |

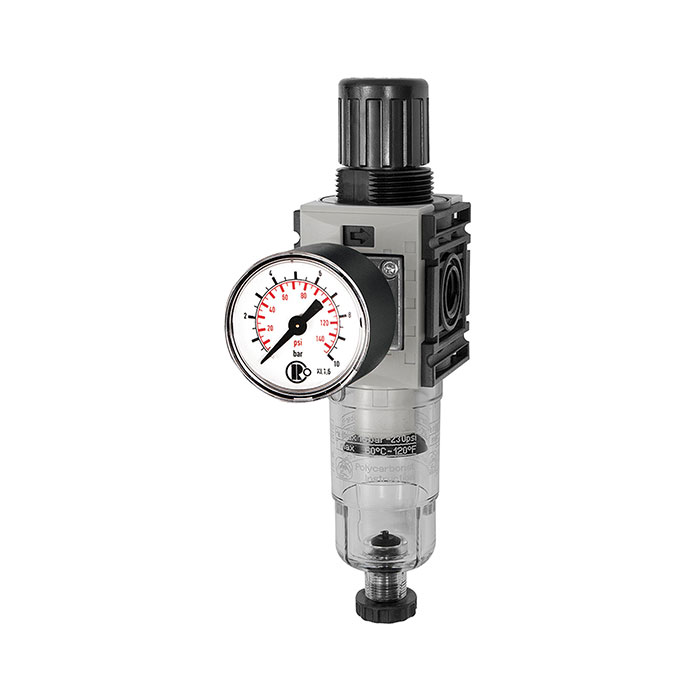

![[142416] RIEGLER Filter regulator »FUTURA-mini« PC container, Size 0, G 1/4,0.5-10](/web/image/product.template/210722/image_128/%5B142416%5D%20RIEGLER%20Filter%20regulator%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20Size%200%2C%20G%201-4%2C0.5-10?unique=043735a)
|
Type number: FUM 821-10-C |
86.66 € | |
![[142410] RIEGLER Filter regulator »FUTURA-mini« PC container, Size 0, G 1/4,0.5-10](/web/image/product.template/210716/image_128/%5B142410%5D%20RIEGLER%20Filter%20regulator%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20Size%200%2C%20G%201-4%2C0.5-10?unique=088970d)
|
Type number: FUM 811-10 |
36.91 € | |
![[142413] RIEGLER Filter regulator »FUTURA-mini« PC container, Size 0, G 1/4,0.5-10](/web/image/product.template/210719/image_128/%5B142413%5D%20RIEGLER%20Filter%20regulator%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20Size%200%2C%20G%201-4%2C0.5-10?unique=55a1d22)
|
Type number: FUM 821-10 |
73.78 € | |
![[142409] RIEGLER Filter regulator »FUTURA-mini« PC container, Size 0, G 1/4, 0.5-8](/web/image/product.template/210715/image_128/%5B142409%5D%20RIEGLER%20Filter%20regulator%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20Size%200%2C%20G%201-4%2C%200.5-8?unique=9878c6e)
|
Type number: FUM 811-8 |
36.91 € | |
![[142415] RIEGLER Filter regulator »FUTURA-mini« PC container, Size 0, G 1/4, 0.5-8](/web/image/product.template/210721/image_128/%5B142415%5D%20RIEGLER%20Filter%20regulator%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20Size%200%2C%20G%201-4%2C%200.5-8?unique=526e3cf)
|
Type number: FUM 821-8-C |
86.66 € | |
![[142412] RIEGLER Filter regulator »FUTURA-mini« PC container, Size 0, G 1/4, 0.5-8](/web/image/product.template/210718/image_128/%5B142412%5D%20RIEGLER%20Filter%20regulator%20%C2%BBFUTURA-mini%C2%AB%20PC%20container%2C%20Size%200%2C%20G%201-4%2C%200.5-8?unique=8d32114)
|
Type number: FUM 821-8 |
73.78 € | |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

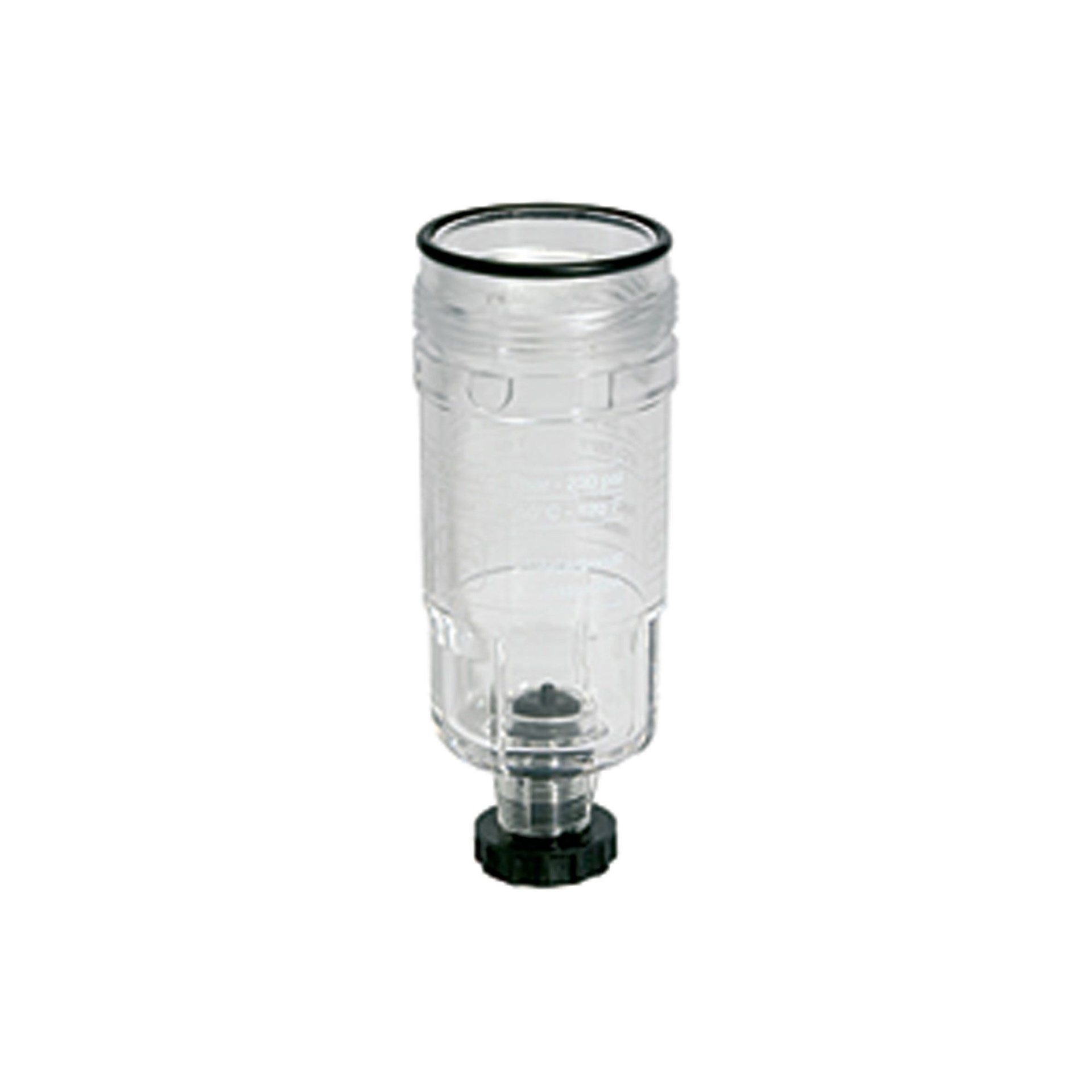

![[100357] RIEGLER Polycarbonate container, incl. NBR O-ring 30x2](/web/image/product.template/139791/image_128/%5B100357%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20NBR%20O-ring%2030x2?unique=9bf2cfc)
|
Type number: 640/1-HA |
10.21 € | |

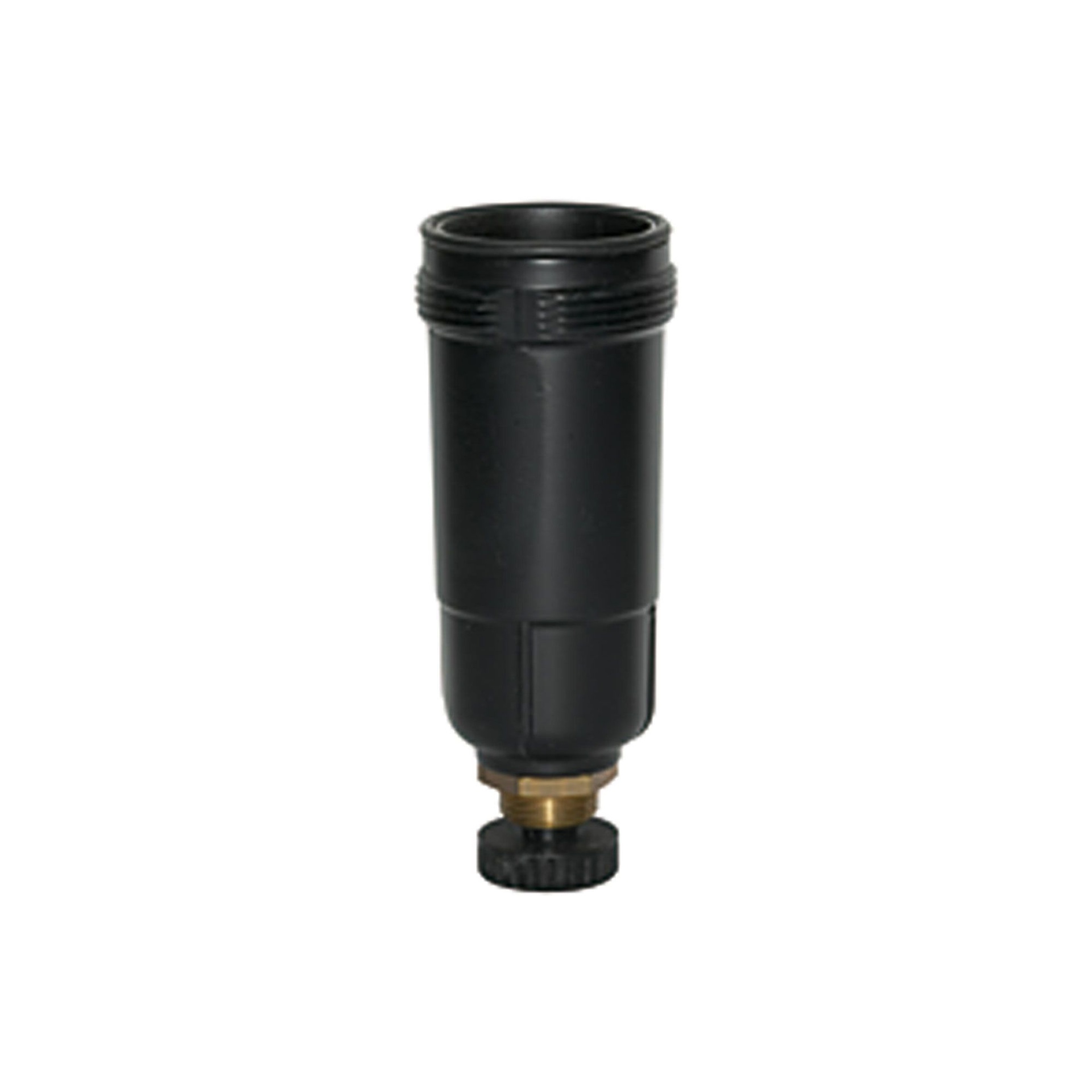

![[100359] RIEGLER Metal container, incl. NBR O-ring, with semi autom. bleeder valve](/web/image/product.template/139793/image_128/%5B100359%5D%20RIEGLER%20Metal%20container%2C%20incl.%20NBR%20O-ring%2C%20with%20semi%20autom.%20bleeder%20valve?unique=c58660a)
|
Type number: 641/11-HA |
21.96 € | |

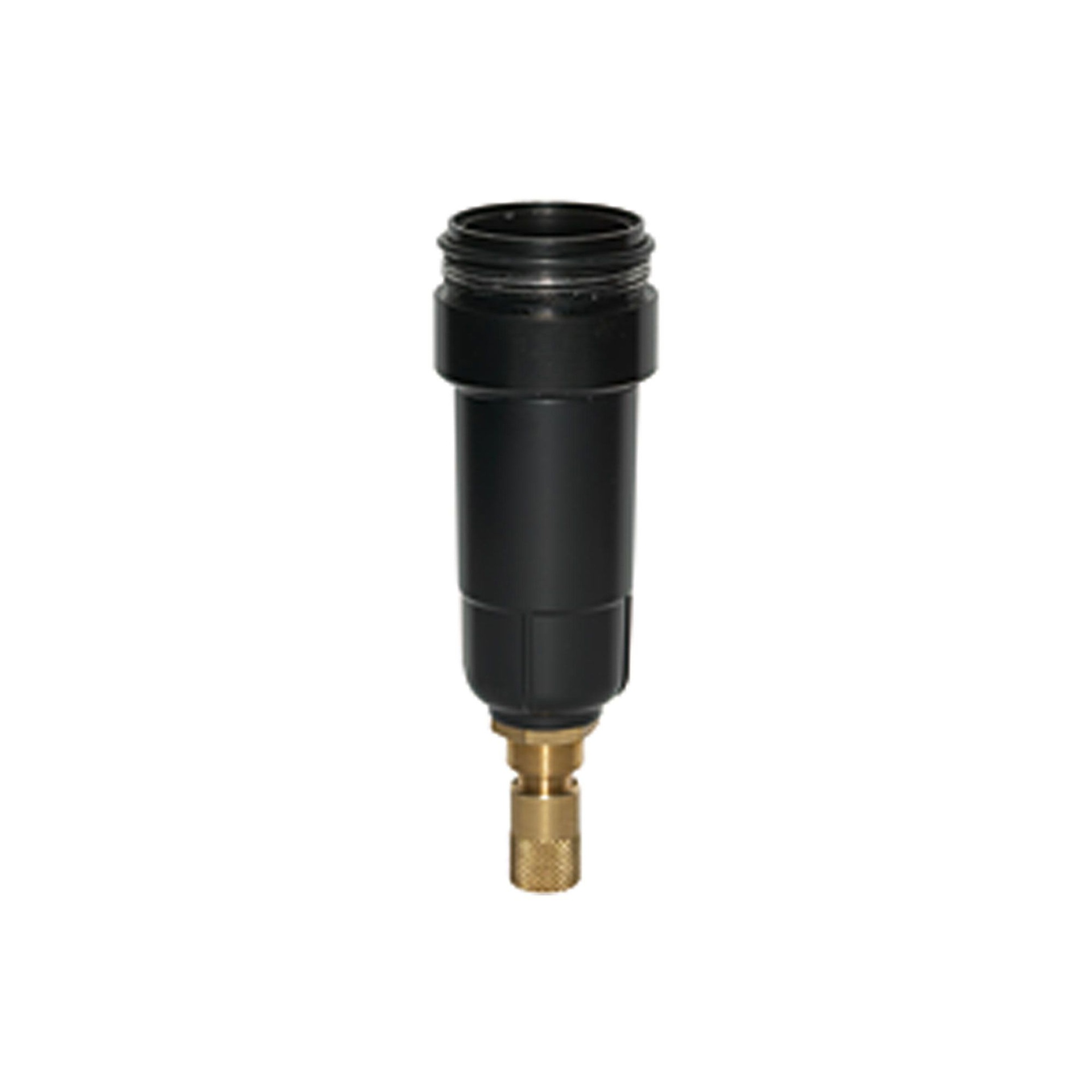

![[100360] RIEGLER Metal container, incl. O-ring, with fully autom. bleeder valve](/web/image/product.template/139794/image_128/%5B100360%5D%20RIEGLER%20Metal%20container%2C%20incl.%20O-ring%2C%20with%20fully%20autom.%20bleeder%20valve?unique=48531a1)
|
Type number: 640/11-A |
55.26 € | |

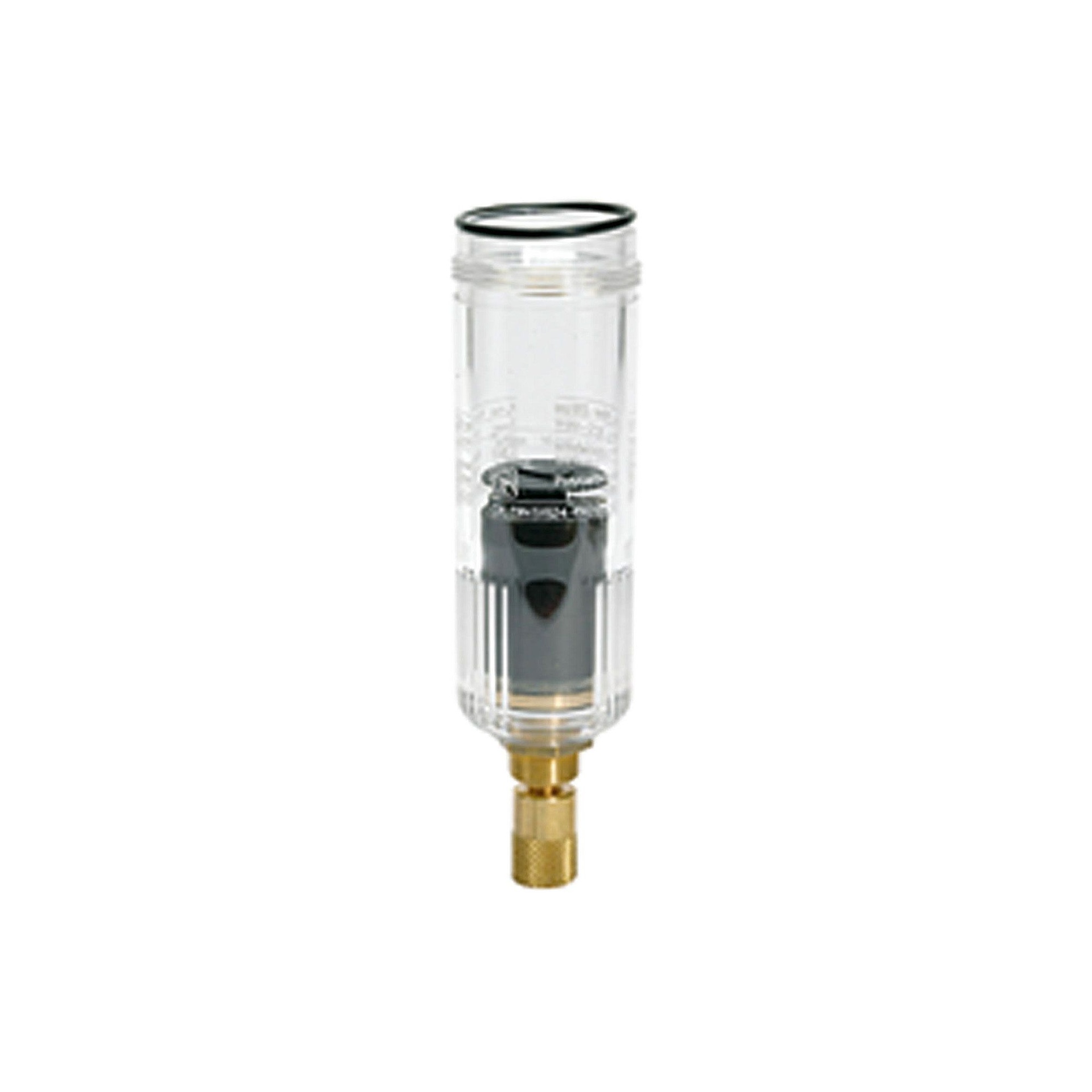

![[100361] RIEGLER Polycarbonate container, incl. O-ring, fully autom. bleeder valve](/web/image/product.template/139795/image_128/%5B100361%5D%20RIEGLER%20Polycarbonate%20container%2C%20incl.%20O-ring%2C%20fully%20autom.%20bleeder%20valve?unique=233ef0e)
|
Type number: KS 11 F-A |
43.65 € | |

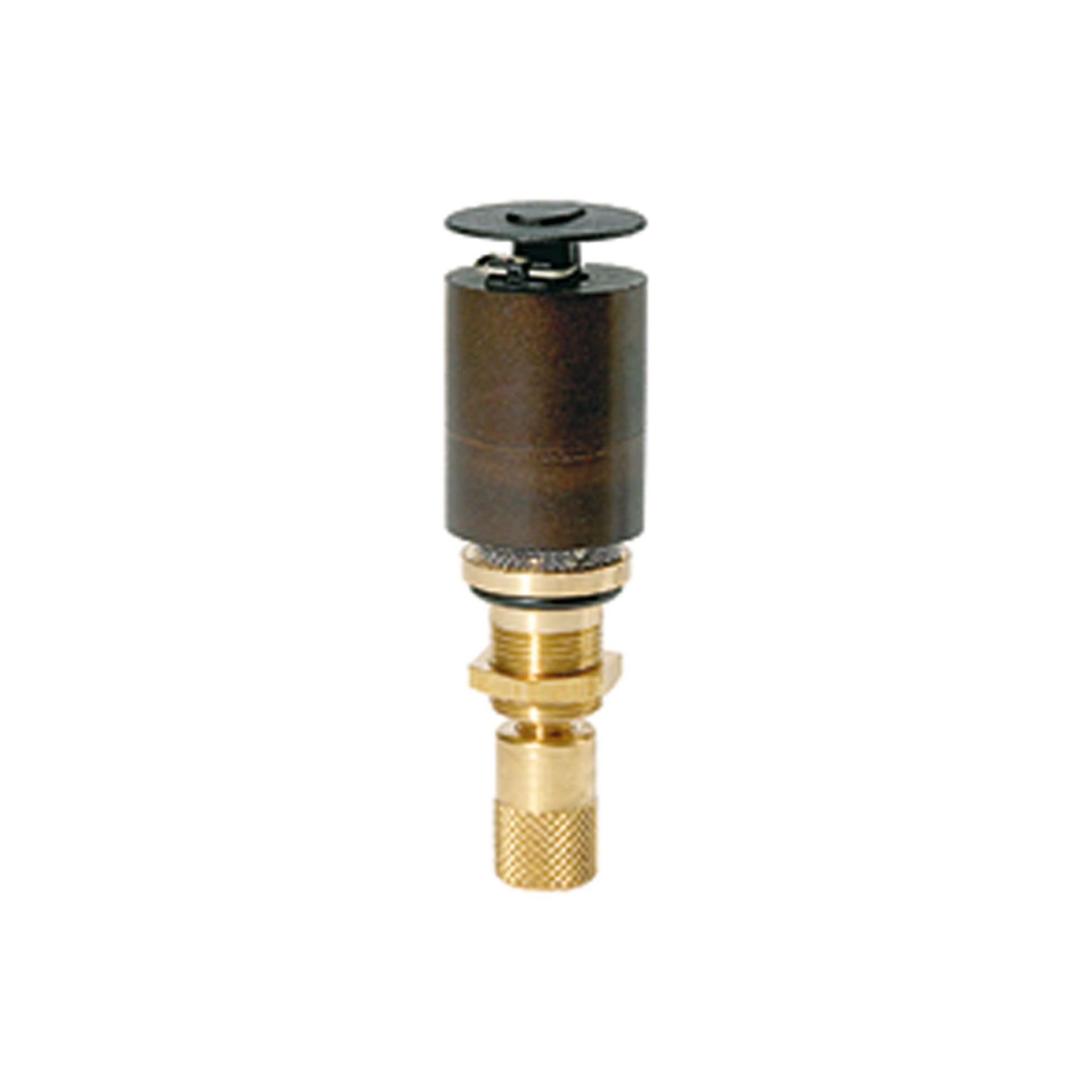

![[100362] RIEGLER Automatic bleeder valve for »multifix«, »FUTURA«, »Standard«](/web/image/product.template/139796/image_128/%5B100362%5D%20RIEGLER%20Automatic%20bleeder%20valve%20for%20%C2%BBmultifix%C2%AB%2C%20%C2%BBFUTURA%C2%AB%2C%20%C2%BBStandard%C2%AB?unique=8c11846)
|
Type number: 655.6.900 |
36.96 € | |
![[143010] RIEGLER Coupling package for wall mounting, incl. 2 screws, »FUTURA-mini«](/web/image/product.template/210835/image_128/%5B143010%5D%20RIEGLER%20Coupling%20package%20for%20wall%20mounting%2C%20incl.%202%20screws%2C%20%C2%BBFUTURA-mini%C2%AB?unique=633d8e3)
|
Type number: WKM 100 |
3.42 € | |
![[143022] RIEGLER Coupling package, incl. 2 screws and O-ring, »FUTURA-mini« Size 0](/web/image/product.template/210836/image_128/%5B143022%5D%20RIEGLER%20Coupling%20package%2C%20incl.%202%20screws%20and%20O-ring%2C%20%C2%BBFUTURA-mini%C2%AB%20Size%200?unique=195df76)
|
Type number: KPM 100 |
2.07 € | |

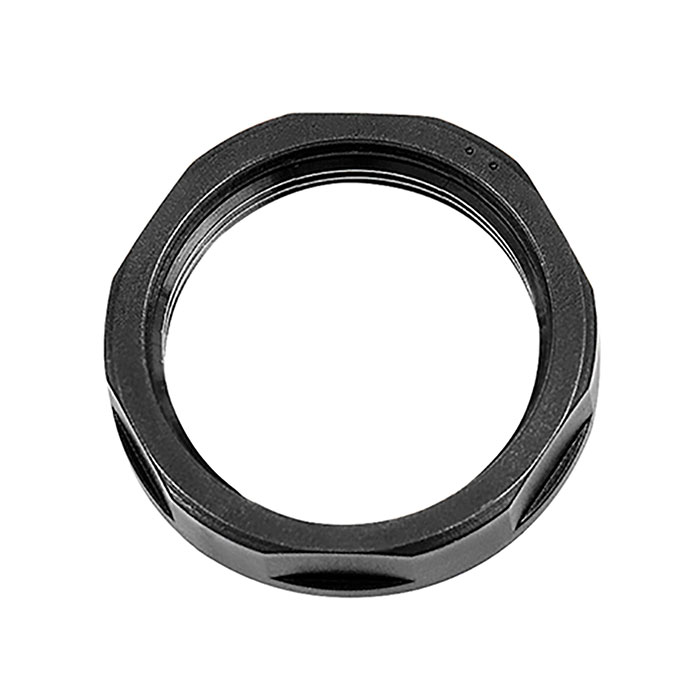

![[143102] RIEGLER Control panel nut M30x1.5, for »FUTURA-mini«, Size 0, G 1/4](/web/image/product.template/210838/image_128/%5B143102%5D%20RIEGLER%20Control%20panel%20nut%20M30x1.5%2C%20for%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%2C%20G%201-4?unique=caacab1)
|
Type number: R 11-55 K |
0.89 € | |
![[143105] RIEGLER Mounting bracket incl. 2 screws, for »FUTURA-mini«, Size 0](/web/image/product.template/211156/image_128/%5B143105%5D%20RIEGLER%20Mounting%20bracket%20incl.%202%20screws%2C%20for%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=125d92c)
|
Type number: H 848 |
6.28 € | |
![[143106] RIEGLER Mounting bracket, thread for panel mounting, »FUTURA-mini« Size 0](/web/image/product.template/210839/image_128/%5B143106%5D%20RIEGLER%20Mounting%20bracket%2C%20thread%20for%20panel%20mounting%2C%20%C2%BBFUTURA-mini%C2%AB%20Size%200?unique=0136cf7)
|
Type number: H 849 |
5.03 € | |
![[143144] RIEGLER Metal container, Fully-automatic (NC)](/web/image/product.template/210847/image_128/%5B143144%5D%20RIEGLER%20Metal%20container%2C%20Fully-automatic%20%28NC%29?unique=30ff2ae)
|
Type number: 640/11-A-NC |
64.41 € | |
![[152077] RIEGLER Wall console with connection thread G 1/4, »FUTURA-mini«, Size 0](/web/image/product.template/210966/image_128/%5B152077%5D%20RIEGLER%20Wall%20console%20with%20connection%20thread%20G%201-4%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=0e5c730)
|
Typennummer: WK 100-14 |
29.45 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[152961] RIEGLER Automatic bleeder valve, usually closed (NC)](/web/image/product.template/212486/image_128/%5B152961%5D%20RIEGLER%20Automatic%20bleeder%20valve%2C%20usually%20closed%20%28NC%29?unique=10803e2)
|
Typennummer: 655.6.901 |
64.69 € | |
![[100134] Riegler Filter element 5 µm, Cellpor](/web/image/product.template/123199/image_128/%5B100134%5D%20Riegler%20Filter%20element%205%20%C2%B5m%2C%20Cellpor?unique=7558954)
|
Type number: 611.6.905 |
13.14 € | |
![[118137] RIEGLER O-ring for sealing containers, »FUTURA-mini«, Size 0, G 1/4](/web/image/product.template/202393/image_128/%5B118137%5D%20RIEGLER%20O-ring%20for%20sealing%20containers%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%2C%20G%201-4?unique=da123cb)
|
Type number: 302.4.9 |
1.08 € | |
![[143142] RIEGLER Polycarbonate container, Fully-automatic (NC)](/web/image/product.template/210846/image_128/%5B143142%5D%20RIEGLER%20Polycarbonate%20container%2C%20Fully-automatic%20%28NC%29?unique=dfc376b)
|
Type number: KS 11 F-A-NC |
55.43 € | |
![[143136] RIEGLER Pressure spring 0 - 4 bar, galvanised, yellow](/web/image/product.template/210843/image_128/%5B143136%5D%20RIEGLER%20Pressure%20spring%200%20-%204%20bar%2C%20galvanised%2C%20yellow?unique=f66f61f)
|
Type number: 1811.5.904 |
4.09 € | |
![[143119] RIEGLER Replacement diaphragm, pressure regulator, »FUTURA-mini«, Size 0](/web/image/product.template/210840/image_128/%5B143119%5D%20RIEGLER%20Replacement%20diaphragm%2C%20pressure%20regulator%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=6cd45ee)
|
Type number: 7010.4.950M |
7.62 € | |
![[143140] RIEGLER Spare parts for filter regulator/regulator, »FUTURA-mini«, Size 0](/web/image/product.template/210845/image_128/%5B143140%5D%20RIEGLER%20Spare%20parts%20for%20filter%20regulator-regulator%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200?unique=14b12e6)
|
Type number: 22.7010M.4 |
7.88 € | |
![[101533] RIEGLER Standard pressure gauge, rear centric, G 1/8, 0 - 6 bar/87 psi](/web/image/product.template/169507/image_128/%5B101533%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-8%2C%200%20-%206%20bar-87%20psi?unique=de27ed5)
|
Type number: 110.45-KD |
6.15 € | |
![[143131] RIEGLER Wheel, 0.1 - 4 bar / 1.5 - 58 psi, »FUTURA-mini«, Size 0, G 1/4](/web/image/product.template/210841/image_128/%5B143131%5D%20RIEGLER%20Wheel%2C%200.1%20-%204%20bar%20-%201.5%20-%2058%20psi%2C%20%C2%BBFUTURA-mini%C2%AB%2C%20Size%200%2C%20G%201-4?unique=2b850a2)
|
Type number: 1811.3.904 |
2.49 € | |
