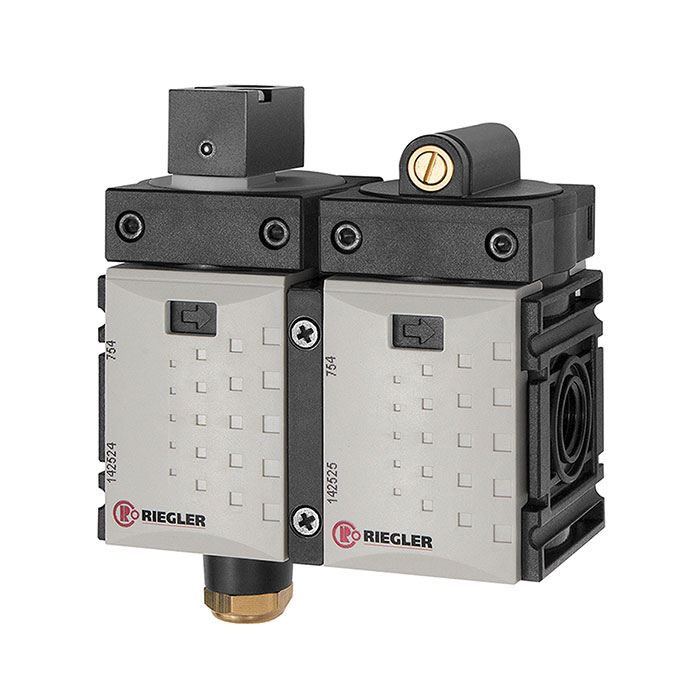

RIEGLER Filling unit »FUTURA-mini«, pneumatically actuated, Size 0, G 1/4
Type number: FUM 919
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Filling unit "FUTURA-mini" made of PA66 GF60, for compressed air preparation, G 1/4 - type FUM 919
The RIEGLER filling unit "FUTURA-mini", pneumatically actuated, BG 0, G 1/4 expands maintenance systems modularly with additional functions. The housing is made of PA66 GF60. The maximum inlet pressure is 12 bar. The temperature range is between -10 °C and 50 °C. Connection thread G 1/4 - suitable for common industry standards. Suitable for compressed air, neutral gases. The flow rate is 1400 l/min (at P2 = 6 bar and pressure drop Δp = 1 bar). Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure min. | 2.5 bar |
| Inlet pressure max. | 12 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air, neutral gases |
| Housing | PA66 GF60 |
| Connection thread | Plastic |
| Flow rate measurement | at P<sub>2</sub> = 6 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Series | FUTURA-mini |
| Thread | G 1/4 |
| Flow rate | 1400 l/min |
| BG | 0 |
| A | 86 mm |
| B | 105 mm |
| C | 60 mm |
| Class name | MAX |
