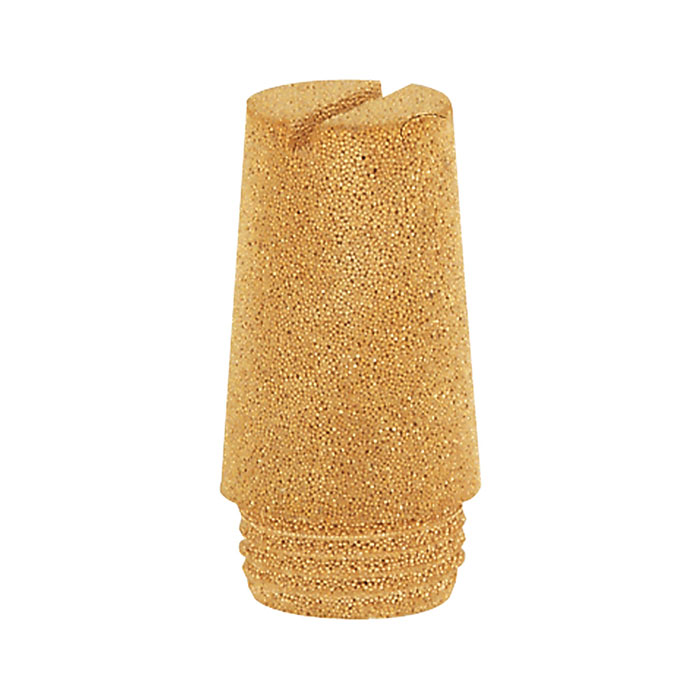

RIEGLER Sintered bronze silencer, Slot, G 1/4
Type number: 568-2
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Sintered bronze silencer for noise protection, max. 8 bar, G 1/4 - Type 568-2
The RIEGLER sintered bronze silencer, slot, G 1/4, 0 - 8 bar significantly reduces the blow-off noise of pneumatic valves and cylinders. The housing is made of sintered bronze. The operating pressure range is 0 bar to 8 bar. The operating temperature is between -10 °C and 250 °C. Connection thread G 1/4 - suitable for common industry standards. The flow rate is 650 l/min. Significant noise reduction for better occupational safety.
Field of application
Typical areas of application: Noise reduction on valves and exhaust air openings.
| Operating pressure min. | 0 bar |
| Max. operating pressure | 8 bar |
| Material | Sintered bronze |
| Operating temperature min. | -10 °C |
| Operating temperature max. | 250 °C |
| Noise level at 6 bar | 71-108 dB |
| Thread | G 1/4 |
| Flow rate | 650 l/min |
| A | 8.5 mm |
| B | 27 mm |
| C | 10 mm |
| Execution | with slot |
| Description of the | Silencer |
| REACH SVHC1 Substance Name | Lead |
| CAS No. SVHC 1 | 7439-92-1 |
| RoHS material information | RoHS compliant |
| RoHS Directive | 2011/65/EU, 2015/863/EU, 2018/741/EU |
| RoHS Article of the Directive | Article 4, paragraph 1, Annex 3 |
| Share of SVHC substance in % for RoHS | 0.04 |
| Exception | 6c |
| REACH Info | contains SVHC substance |
| Share of SVHC SCIP | >= 1.0% w/w and < 10.0% w/w |
| Proportion of SVHC substance in SCIP | >= 0.1 % in w/w |
| Material identification | none |
| Theme shop | SAFETY |
| Class name | PLUS |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

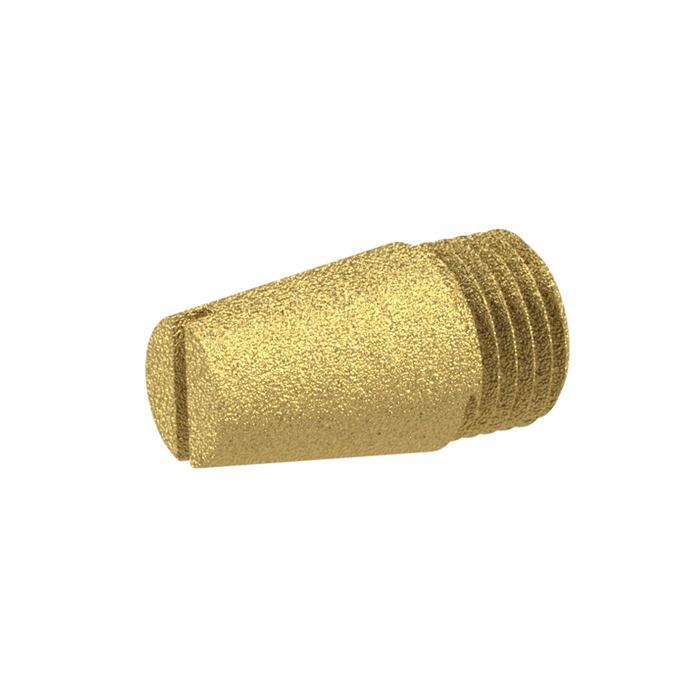

![[113352] RIEGLER Sintered bronze silencer, Slot, G 1](/web/image/product.template/186253/image_128/%5B113352%5D%20RIEGLER%20Sintered%20bronze%20silencer%2C%20Slot%2C%20G%201?unique=be09e40)
|
