RIEGLER Shut-off valve "SYNTESI", electric, BG1, without sockets
Type number: 5610V700
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Shut-off valve "SYNTESI", electric, BG 1, without sockets, exhaust air G 1/4, p1 = 3 ? 10 bar, T = -10?50 °C, without coil/plug/silencer.
| Inlet pressure min. | 3 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 1 |
| Input connection | without socket |
| Output connection | without socket |
| A | 42 mm |
| B | 104 mm |
| Exhaust air | G 1/8 |
| Flow_1 | 1100 Nl/min |
| Flow_2 | 1600 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Series | Syntesi |
| F | 32.2 mm |
| Vent flow rate at 6.3 | 500 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144874] RIEGLER Shut-off valve "SYNTESI", electric, BG1, G 1/4](/web/image/product.template/280004/image_128/%5B144874%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG1%2C%20G%201-4?unique=20be60e)
|
Type number: 5612V702 |
86.51 € | |

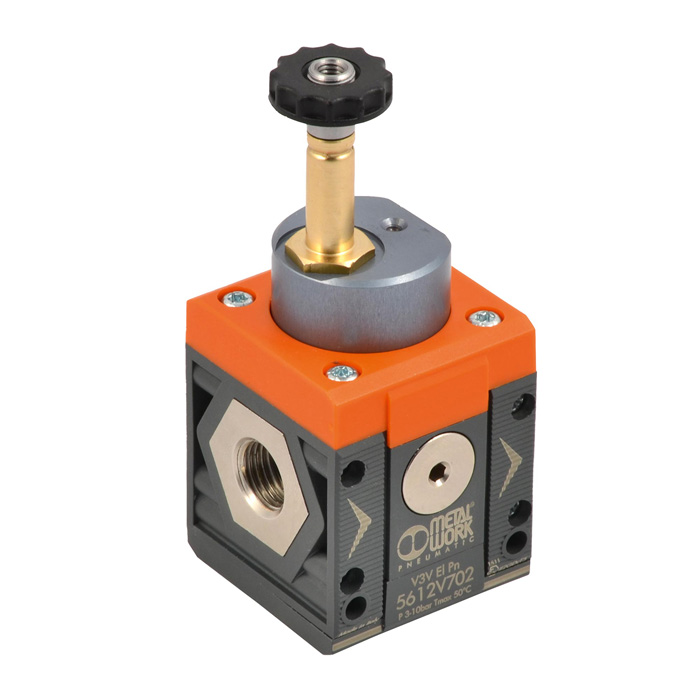

![[144873] RIEGLER Shut-off valve "SYNTESI", electric, BG1, G 1/8](/web/image/product.template/280003/image_128/%5B144873%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG1%2C%20G%201-8?unique=c8905da)
|
Type number: 5611V701 |
86.51 € | |
![[144875] RIEGLER Shut-off valve "SYNTESI", electric, BG1, G 3/8](/web/image/product.template/280005/image_128/%5B144875%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG1%2C%20G%203-8?unique=7304859)
|
Type number: 5613V703 |
86.51 € | |
