RIEGLER Shut-off valve "SYNTESI", electric, BG1, G 3/8
Type number: 5613V703
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
Shut-off valve "SYNTESI", electric, BG 1, G 3/8, exhaust air G 1/4, p1 = 3 ? 10 bar, T = -10?50 °C, without coil/plug/silencer
| Inlet pressure min. | 3 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 1 |
| Input connection | G 3/8 |
| Output connection | |
| A | 42 mm |
| B | 104 mm |
| Exhaust air | G 1/8 |
| Flow 1 | 1100 Nl/min |
| Flow 2 | 1600 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| A1 | 44.0 mm |
| Series | Syntesi |
| F | 32.2 mm |
| Vent flow rate at 6.3 | 500 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[144874] RIEGLER Shut-off valve "SYNTESI", electric, BG1, G 1/4](/web/image/product.template/280004/image_128/%5B144874%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG1%2C%20G%201-4?unique=64335e8)
|
Type number: 5612V702 |
85.33 € | |
![[144873] RIEGLER Shut-off valve "SYNTESI", electric, BG1, G 1/8](/web/image/product.template/280003/image_128/%5B144873%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG1%2C%20G%201-8?unique=fbfc647)
|
Type number: 5611V701 |
85.33 € | |

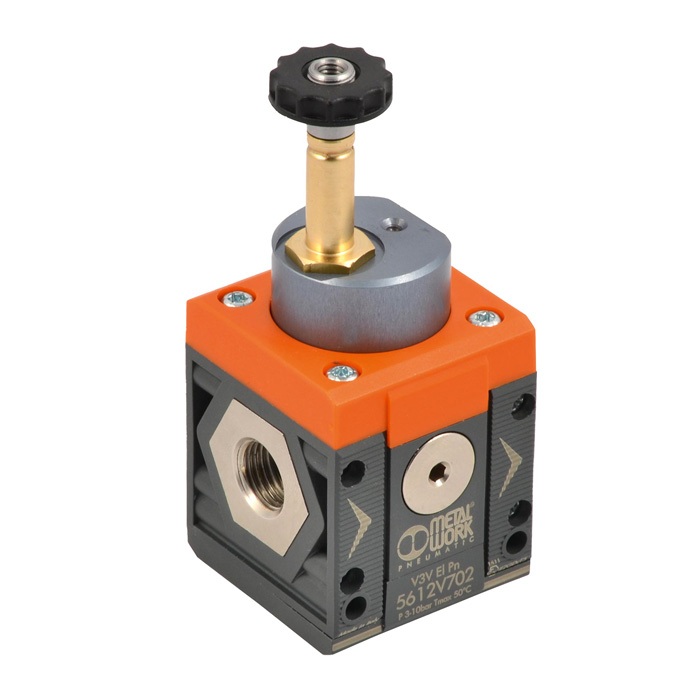

![[144872] RIEGLER Shut-off valve "SYNTESI", electric, BG1, without sockets](/web/image/product.template/280002/image_128/%5B144872%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG1%2C%20without%20sockets?unique=4684c4a)
|
Type number: 5610V700 |
83.10 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=a54f559)
|
Type number: 233.02-N |
0.42 € | |
![[144690] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 3/8, incl. 2 screws](/web/image/product.template/277872/image_128/%5B144690%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%20incl.%202%20screws?unique=3c5b0e6)
|
Type number: 9210003 |
1.86 € | |
