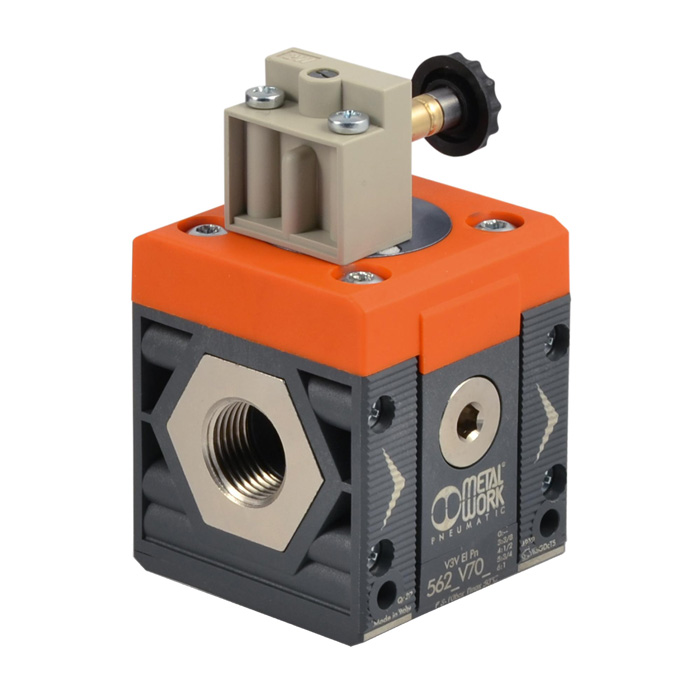

RIEGLER Shut-off valve "SYNTESI", electric, BG2, G 3/4
Type number: 5625V705
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Shut-off valve »SYNTESI«, electric CNOMO, size 2, G 3/4, exhaust G 1/4, p1 = max. 10 bar, T = -10…50 °C, w/o coil/connector/sil.
| Inlet pressure min. | 3 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 2 |
| Input connection | G 3/4 |
| Output connection | |
| A | 60.5 mm |
| B | 113 mm |
| Exhaust air | G 1/4 |
| Flow_2 | 4000 Nl/min |
| Flow rate measurement 1 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| A1 | 95.0 mm |
| Series | Syntesi |
| F | 42.7 mm |
| Flow_1 | 3000 Nl/min |
| Vent flow rate at 6.3 | 2000 Nl/min |
