RIEGLER Shut-off valve "SYNTESI", electric, BG2, without sockets
Type number: 5620V700
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Shut-off valve "SYNTESI" made of technopolymer, for compressed air preparation - Type 5620V700
The RIEGLER shut-off valve "SYNTESI", electric, BG2, without sockets adds additional modular functions to maintenance systems. The housing is made of technopolymer. The maximum inlet pressure is 10 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure min. | 3 bar |
| Inlet pressure max. | 10 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| BG | 2 |
| Input connection | without socket |
| Output connection | without socket |
| A | 60.5 mm |
| B | 113 mm |
| Exhaust air | G 1/4 |
| Flow 2 | 4000 Nl/min |
| Flow rate measurement 1 | P2 = 6.3 bar and pressure drop Δp = 0.5 bar |
| Flow rate measurement 2 | P<sub>2</sub> = 6.3 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | PLUS |
| Series | Syntesi |
| F | 42.7 mm |
| Flow 1 | 3000 Nl/min |
| Vent flow rate at 6.3 | 2000 Nl/min |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|

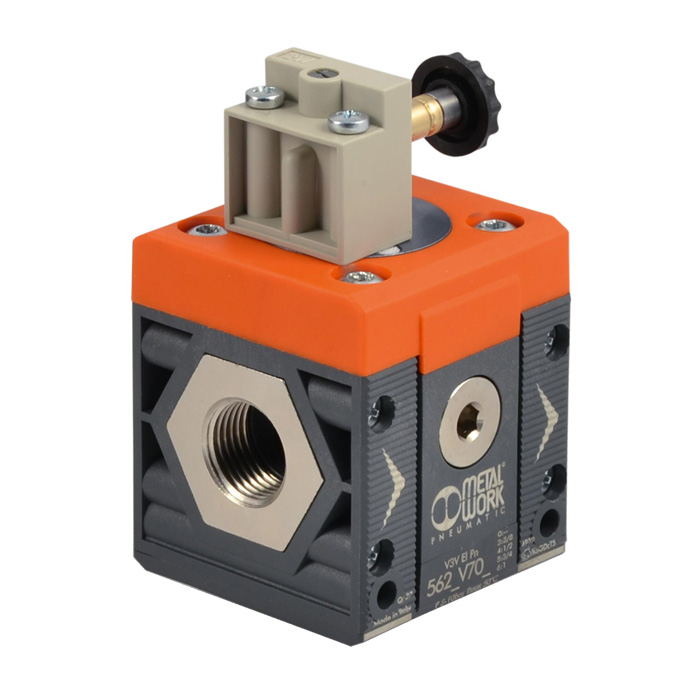

![[144880] RIEGLER Shut-off valve "SYNTESI", electric, BG2, G 1](/web/image/product.template/280010/image_128/%5B144880%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG2%2C%20G%201?unique=36b394a)
|
Type number: 5626V706 |
111.78 € | |
![[144878] RIEGLER Shut-off valve "SYNTESI", electric, BG2, G 1/2](/web/image/product.template/280008/image_128/%5B144878%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG2%2C%20G%201-2?unique=e568a68)
|
Type number: 5624V704 |
103.07 € | |
![[144879] RIEGLER Shut-off valve "SYNTESI", electric, BG2, G 3/4](/web/image/product.template/280009/image_128/%5B144879%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG2%2C%20G%203-4?unique=1eb575c)
|
Type number: 5625V705 |
111.78 € | |
![[144877] RIEGLER Shut-off valve "SYNTESI", electric, BG2, G 3/8](/web/image/product.template/280007/image_128/%5B144877%5D%20RIEGLER%20Shut-off%20valve%20%22SYNTESI%22%2C%20electric%2C%20BG2%2C%20G%203-8?unique=53dc0ac)
|
Type number: 5623V703 |
103.07 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|

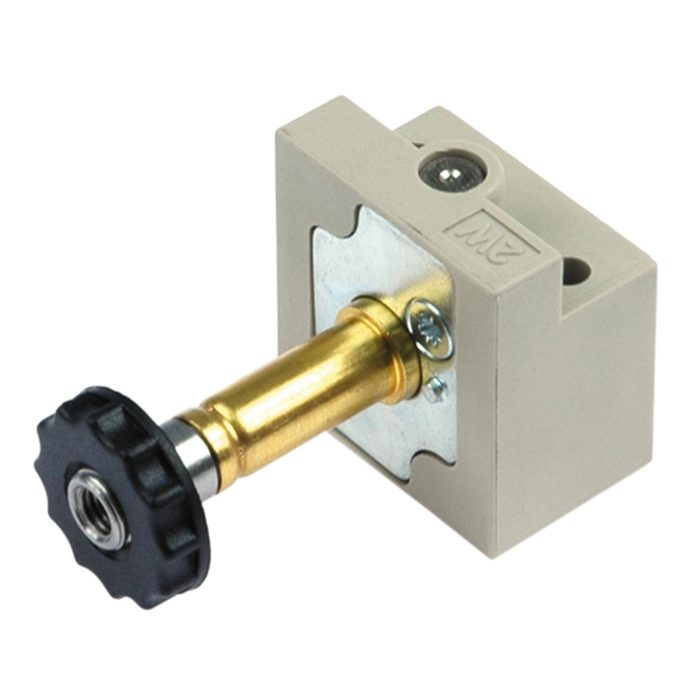

![[145657] RIEGLER CNOMO control, with bistable manual override](/web/image/product.template/279314/image_128/%5B145657%5D%20RIEGLER%20CNOMO%20control%2C%20with%20bistable%20manual%20override?unique=0b2ae91)
|
Type number: 9453922 |
26.86 € | |
