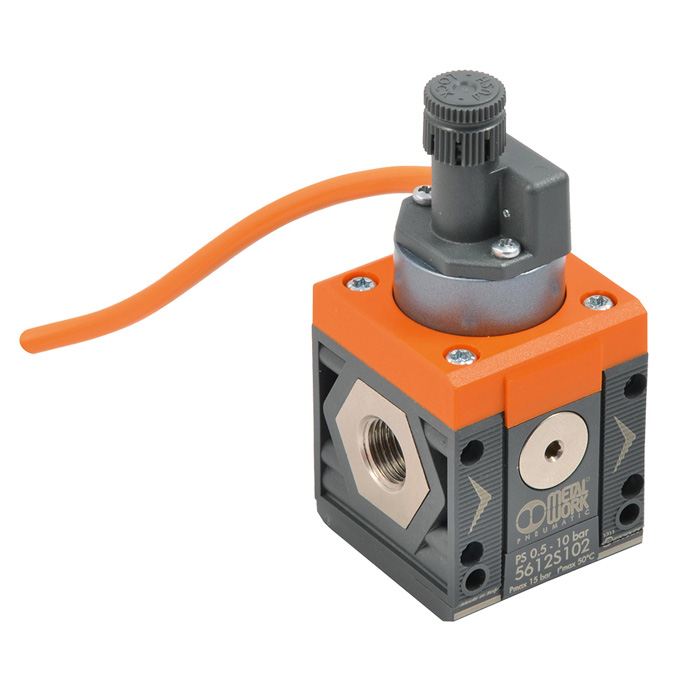

RIEGLER SYNTESI" pressure switch, BG 1, G 1/4, 2 m cable
Type number: 5612S102
RIEGLER & Co. KG in Bad Urach is a respected company known for its innovative approaches, top-notch product quality, and dedicated customer service. For over 80 years, this family-owned business has evolved into a leading provider of components for compressed air and pneumatics, as well as customized system solutions.
Pressure switch »SYNTESI«, BG 1, G 1/4, 2 m cable, adjustment range = 0.5 … 10 bar, p1 = max. 15 bar, T = -10 … 50°C
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Setting range min. | 0.5 bar |
| BG | 1 |
| Input connection | G 1/4 |
| Output connection | G 1/4 |
| A | 42 mm |
| B | 93 mm |
| Setting range max. | 10 bar |
| Class name | PLUS |
| Voltage max. | 250 V |
| Hysteresis min. (not adjustable) | 0.4 bar |
| Hysteresis max. (not adjustable) | 0.8 bar |
| Series | Syntesi |
| Protection class | IP65 |
| Electrical connection | 2m cable |
| Function | Changer |
| max. load | 0.08333333333333326 |
| F | 25.6 mm |
