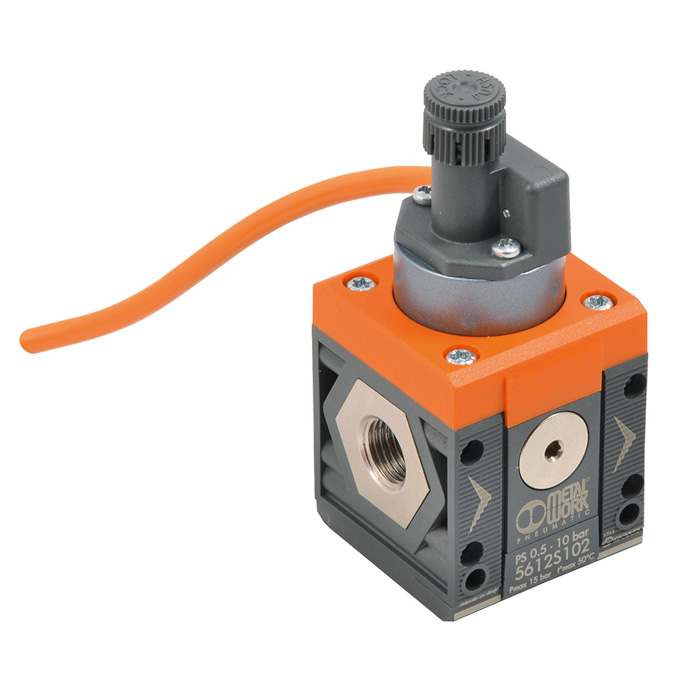

RIEGLER SYNTESI" pressure switch, BG 2, G 1/2, M8 plug, 300 mm cable
Type number: 5624S204
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
SYNTESI" pressure switch, BG 2, G 1/2, M8 plug, 300 mm cable, setting range = 0.5 ? 10 bar, p1 = max. 13 bar, T = -10 ? 50°C
| Inlet pressure max. | 13 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Setting range min. | 0.5 bar |
| BG | 2 |
| Input connection | G 1/2 |
| Output connection | G 1/2 |
| A | 60.5 mm |
| B | 101 mm |
| Setting range max. | 10 bar |
| Class name | PLUS |
| Voltage max. | 250 V |
| Hysteresis min. (not adjustable) | 0.4 bar |
| Hysteresis max. (not adjustable) | 0.8 bar |
| Series | Syntesi |
| Protection class | IP65 |
| Electrical connection | M8 plug on 300mm cable |
| Function | Changer |
| max. load | 0.08333333333333326 |
| F | 32.5 mm |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|

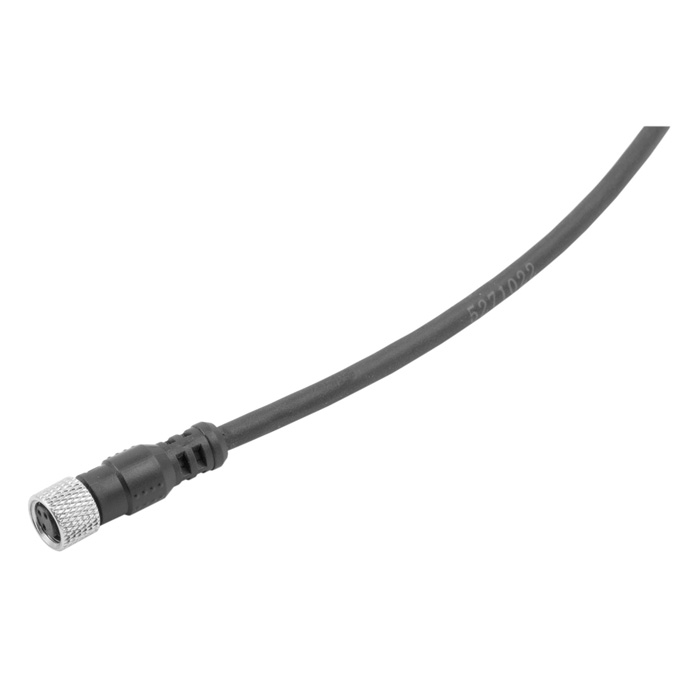

![[145497] RIEGLER M8 socket outlet, 3-pin, 1 m cable, High Flex CL6](/web/image/product.template/279253/image_128/%5B145497%5D%20RIEGLER%20M8%20socket%20outlet%2C%203-pin%2C%201%20m%20cable%2C%20High%20Flex%20CL6?unique=7b0d4cc)
|
Type number: 02400A0100 |
7.46 € | |
![[145498] RIEGLER M8 socket outlet, 3-pin, 2.5 m cable, High Flex CL6](/web/image/product.template/279254/image_128/%5B145498%5D%20RIEGLER%20M8%20socket%20outlet%2C%203-pin%2C%202.5%20m%20cable%2C%20High%20Flex%20CL6?unique=fa139e5)
|
Type number: 02400A0250 |
12.36 € | |
![[145499] RIEGLER M8 socket outlet, 3-pin, 5 m cable, High Flex CL6](/web/image/product.template/279255/image_128/%5B145499%5D%20RIEGLER%20M8%20socket%20outlet%2C%203-pin%2C%205%20m%20cable%2C%20High%20Flex%20CL6?unique=00be178)
|
Type number: 02400A0500 |
15.74 € | |
![[145500] RIEGLER M8 socket outlet, 3-pin, 10 m cable, High Flex CL6](/web/image/product.template/279256/image_128/%5B145500%5D%20RIEGLER%20M8%20socket%20outlet%2C%203-pin%2C%2010%20m%20cable%2C%20High%20Flex%20CL6?unique=26e8c98)
|
Type number: 02400A1000 |
26.89 € | |

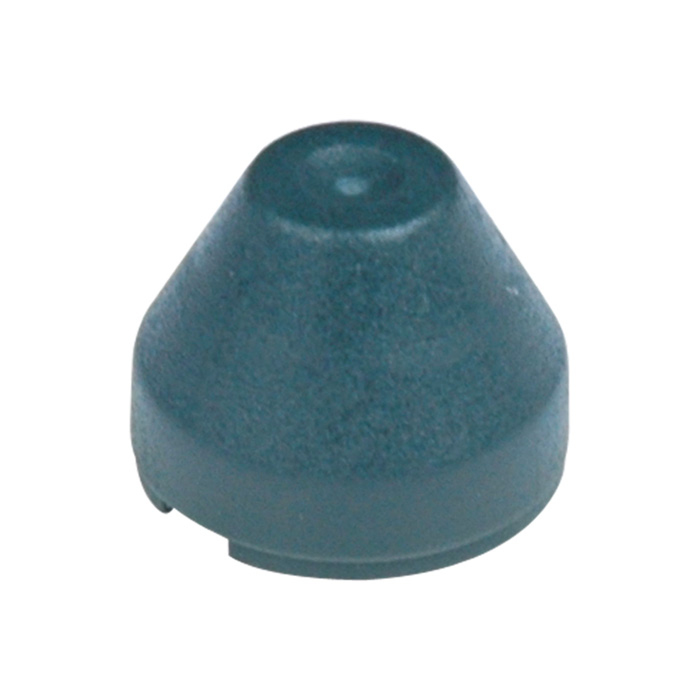

![[145559] RIEGLER Adjustment protection cap for pressure switches and soft start valves](/web/image/product.template/279265/image_128/%5B145559%5D%20RIEGLER%20Adjustment%20protection%20cap%20for%20pressure%20switches%20and%20soft%20start%20valves?unique=8e6673d)
|
Type number: 9200703 |
3.09 € | |
![[145659] RIEGLER SYNTESI" mounting bracket, BG 2, standard and anti-corrosion](/web/image/product.template/279316/image_128/%5B145659%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%202%2C%20standard%20and%20anti-corrosion?unique=29ca58b)
|
Type number: 9200717X |
15.47 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=aff6b5e)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[144692] RIEGLER Threaded connection socket "SYNTESI", BG 2, G 1/2, incl. 2 screws](/web/image/product.template/277874/image_128/%5B144692%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%202%2C%20G%201-2%2C%20incl.%202%20screws?unique=2d640f8)
|
Type number: 9210012 |
5.77 € | |
