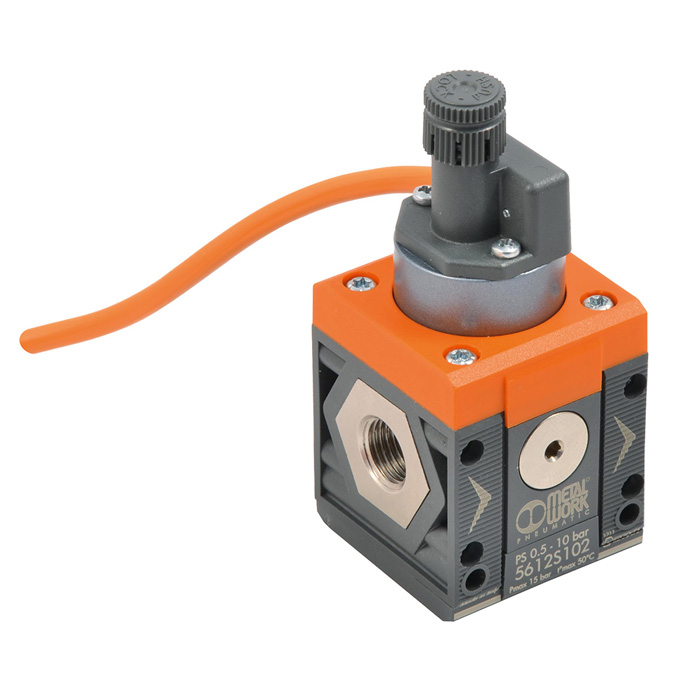

RIEGLER SYNTESI" pressure switch, BG 1, G 3/8, M8 plug, 300 mm cable
Type number: 5613S203
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER SYNTESI" pressure switch made of technopolymer, for compressed air treatment - type 5613S203
The RIEGLER "SYNTESI" pressure switch, BG 1, G 3/8, M8 plug, 300 mm cable expands maintenance systems modularly with additional functions. The housing is made of technopolymer. The maximum inlet pressure is 15 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Protection class IP65. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Setting range min. | 0.5 bar |
| BG | 1 |
| Input connection | G 3/8 |
| Output connection | |
| A | 42 mm |
| B | 93 mm |
| Setting range max. | 10 bar |
| Class name | PLUS |
| Voltage max. | 250 V |
| Hysteresis min. (not adjustable) | 0.4 bar |
| Hysteresis max. (not adjustable) | 0.8 bar |
| A1 | 44.0 mm |
| Series | Syntesi |
| Protection class | IP65 |
| Electrical connection | M8 plug on 300mm cable |
| Function | Changer |
| max. load | 0.08333333333333326 |
| F | 25.6 mm |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[145497] RIEGLER M8 socket outlet, 3-pin, 1 m cable, High Flex CL6](/web/image/product.template/279253/image_128/%5B145497%5D%20RIEGLER%20M8%20socket%20outlet%2C%203-pin%2C%201%20m%20cable%2C%20High%20Flex%20CL6?unique=a28fa78)
|
Type number: 02400A0100 |
7.46 € | |

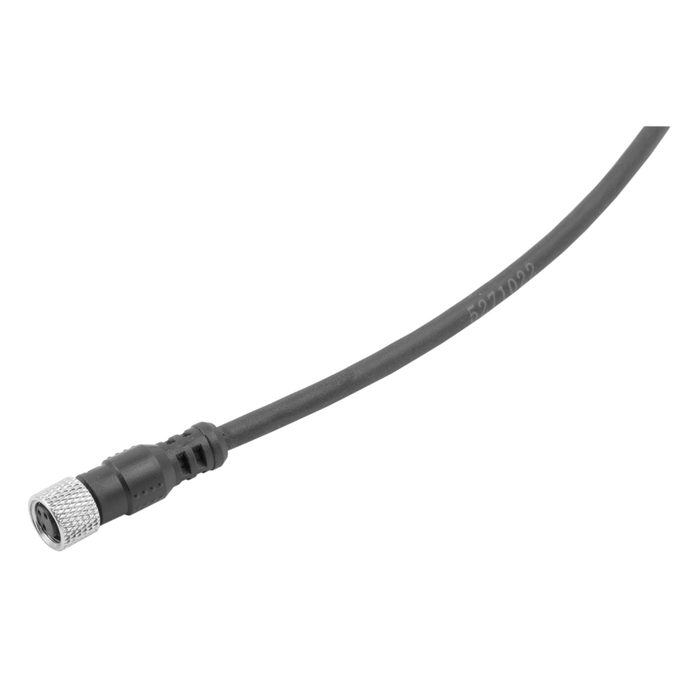

![[145498] RIEGLER M8 socket outlet, 3-pin, 2.5 m cable, High Flex CL6](/web/image/product.template/279254/image_128/%5B145498%5D%20RIEGLER%20M8%20socket%20outlet%2C%203-pin%2C%202.5%20m%20cable%2C%20High%20Flex%20CL6?unique=e875d64)
|
Type number: 02400A0250 |
12.36 € | |
![[145499] RIEGLER M8 socket outlet, 3-pin, 5 m cable, High Flex CL6](/web/image/product.template/279255/image_128/%5B145499%5D%20RIEGLER%20M8%20socket%20outlet%2C%203-pin%2C%205%20m%20cable%2C%20High%20Flex%20CL6?unique=c585e66)
|
Type number: 02400A0500 |
15.74 € | |
![[145500] RIEGLER M8 socket outlet, 3-pin, 10 m cable, High Flex CL6](/web/image/product.template/279256/image_128/%5B145500%5D%20RIEGLER%20M8%20socket%20outlet%2C%203-pin%2C%2010%20m%20cable%2C%20High%20Flex%20CL6?unique=feb21dd)
|
Type number: 02400A1000 |
26.89 € | |

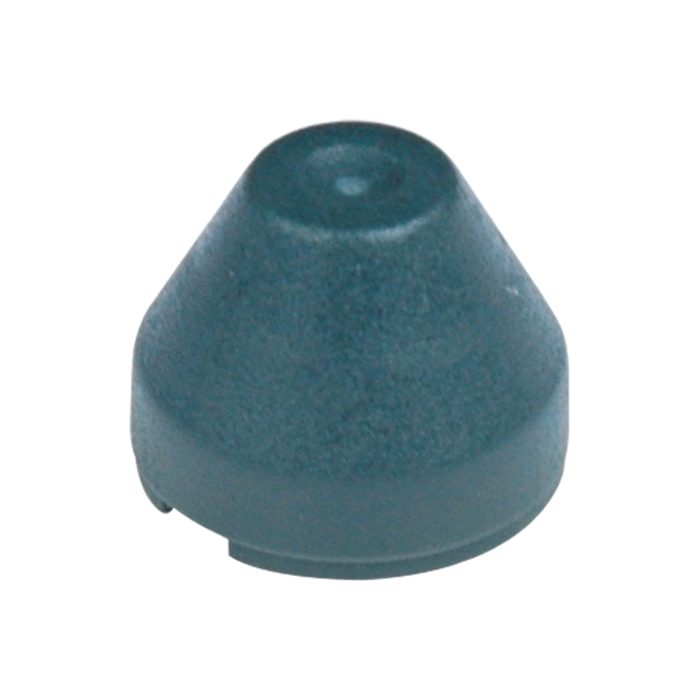

![[145559] RIEGLER Adjustment protection cap for pressure switches and soft start valves](/web/image/product.template/279265/image_128/%5B145559%5D%20RIEGLER%20Adjustment%20protection%20cap%20for%20pressure%20switches%20and%20soft%20start%20valves?unique=b5b7599)
|
Type number: 9200703 |
3.09 € | |
![[145658] RIEGLER SYNTESI" mounting bracket, BG 1, standard and anti-corrosion](/web/image/product.template/279315/image_128/%5B145658%5D%20RIEGLER%20SYNTESI%22%20mounting%20bracket%2C%20BG%201%2C%20standard%20and%20anti-corrosion?unique=37b8db6)
|
Type number: 9200716X |
13.63 € | |
![[145660] RIEGLER Adapter for DIN rail "SYNTESI", BG 1 and BG 2](/web/image/product.template/279317/image_128/%5B145660%5D%20RIEGLER%20Adapter%20for%20DIN%20rail%20%22SYNTESI%22%2C%20BG%201%20and%20BG%202?unique=116325a)
|
Type number: 9200718X |
18.99 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[111409] RIEGLER Locking screw, Hexagonal socket 3 mm, G 1/8, nickel-plated brass](/web/image/product.template/183330/image_128/%5B111409%5D%20RIEGLER%20Locking%20screw%2C%20Hexagonal%20socket%203%20mm%2C%20G%201-8%2C%20nickel-plated%20brass?unique=080c3b4)
|
Type number: 233.02-N |
0.42 € | |
![[144690] RIEGLER Threaded connection socket "SYNTESI", BG 1, G 3/8, incl. 2 screws](/web/image/product.template/277872/image_128/%5B144690%5D%20RIEGLER%20Threaded%20connection%20socket%20%22SYNTESI%22%2C%20BG%201%2C%20G%203-8%2C%20incl.%202%20screws?unique=653e3d9)
|
Type number: 9210003 |
1.86 € | |
