RIEGLER Pressure switch "SYNTESI", BG1, without sockets, M8 plug, 300mm cable
Type number: 5610S200
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER SYNTESI" pressure switch made of technopolymer, for compressed air treatment - type 5610S200
The RIEGLER "SYNTESI" pressure switch, BG1, without sockets, M8 plug, 300mm cable adds additional modular functions to maintenance systems. The housing is made of technopolymer. The maximum inlet pressure is 15 bar. The temperature range is between -10 °C and 50 °C. Suitable for compressed air or other neutral gases. Protection class IP65. Seamless integration into existing systems.
Field of application
Typical areas of application: Modular compressed air treatment lines.
| Inlet pressure max. | 15 bar |
| Temperature range min. | -10 °C |
| Temperature range max. | 50 °C |
| Medium | Compressed air or other neutral gases |
| Housing | Technopolymer |
| Setting range min. | 0.5 bar |
| BG | 1 |
| Input connection | without socket |
| Output connection | without socket |
| A | 42 mm |
| B | 93 mm |
| Setting range max. | 10 bar |
| Class name | PLUS |
| Voltage max. | 250 V |
| Hysteresis min. (not adjustable) | 0.4 bar |
| Hysteresis max. (not adjustable) | 0.8 bar |
| Series | Syntesi |
| Protection class | IP65 |
| Electrical connection | M8 plug on 300mm cable |
| Function | Changer |
| max. load | 0.08333333333333326 |
| F | 25.6 mm |
Accessoires and suitable extensions
| Product | Price | ||
|---|---|---|---|
![[145497] RIEGLER M8 socket outlet, 3-pin, 1 m cable, High Flex CL6](/web/image/product.template/279253/image_128/%5B145497%5D%20RIEGLER%20M8%20socket%20outlet%2C%203-pin%2C%201%20m%20cable%2C%20High%20Flex%20CL6?unique=978c606)
|
Type number: 02400A0100 |
7.46 € | |
![[145498] RIEGLER M8 socket outlet, 3-pin, 2.5 m cable, High Flex CL6](/web/image/product.template/279254/image_128/%5B145498%5D%20RIEGLER%20M8%20socket%20outlet%2C%203-pin%2C%202.5%20m%20cable%2C%20High%20Flex%20CL6?unique=ebb8451)
|
Type number: 02400A0250 |
12.36 € | |

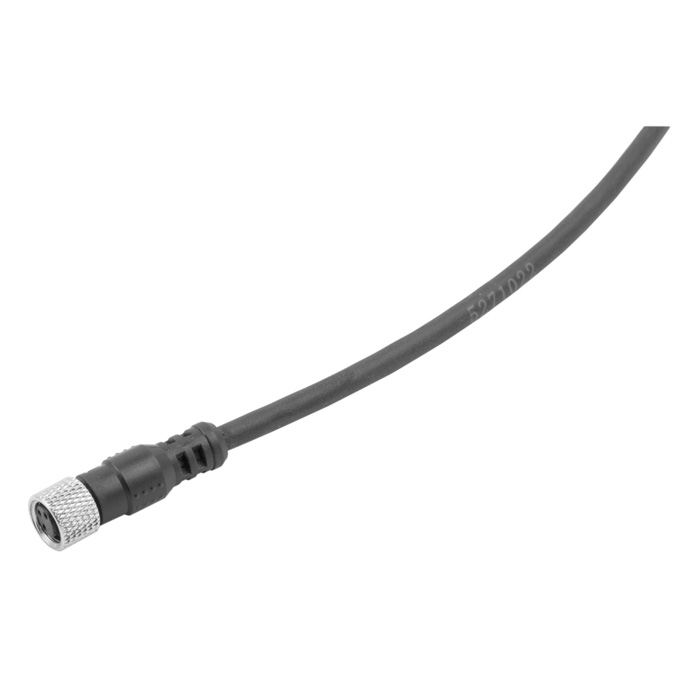

![[145499] RIEGLER M8 socket outlet, 3-pin, 5 m cable, High Flex CL6](/web/image/product.template/279255/image_128/%5B145499%5D%20RIEGLER%20M8%20socket%20outlet%2C%203-pin%2C%205%20m%20cable%2C%20High%20Flex%20CL6?unique=fef57eb)
|
