RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 10 bar
Typennummer: DRG.G112.0,5-10B
The family-owned company RIEGLER & Co. KG in Bad Urach has stood for innovative, high-quality solutions in the field of compressed air and pneumatic components for over 80 years
RIEGLER Large pressure regulator with 2 pressure gauges made of die-cast aluminum, for compressed air preparation - Type DRG.G112.0,5-10B
The RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 10 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast aluminum with NBR seals. The control range extends from 0.5 bar to 10 bar with a maximum inlet pressure of 40 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 1/2 - suitable for common industry standards. Suitable for compressed air or other neutral gases. The flow rate is 50000 l/min (at P1 = 10 bar, P2 = 8 bar and pressure drop Δp = 1 bar). Uniform working pressure for constant process quality.
Field of application
Typical areas of application: Compressed air treatment, machine supply and process control.
| Medium | Compressed air or other neutral gases |
| Control range max. | 10 bar |
| Flow rate | 50000 l/min |
| DN | 40 |
| Ambient temperature min. | -10 °C |
| Medium temperature min. | -10 °C |
| Control range min. | 0.5 bar |
| A | 160 mm |
| B | 260 mm |
| Inlet pressure max. | 40 bar |
| Ambient temperature max. | 60 °C |
| Medium temperature max. | 60 °C |
| Housing | Die-cast aluminum |
| Flow rate measurement | with P<sub>1</sub> = 10 bar, P<sub>2</sub> = 8 bar and pressure drop Î"<sub>p</sub> = 1 bar |
| Class name | FLEX |
| Thread | G 1 1/2 |
| Handwheel | Plastic |
| Sealing material | NBR |
Variants / Alternatives
| Product | Price | ||
|---|---|---|---|
![[146274] RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 15 bar](/web/image/product.template/283956/image_128/%5B146274%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%201%201-2%2C%20control%20range%200.5%20-%2015%20bar?unique=82aa9e9)
|
Typennummer: DRG.G112.0,5-15B |
759.35 € | |

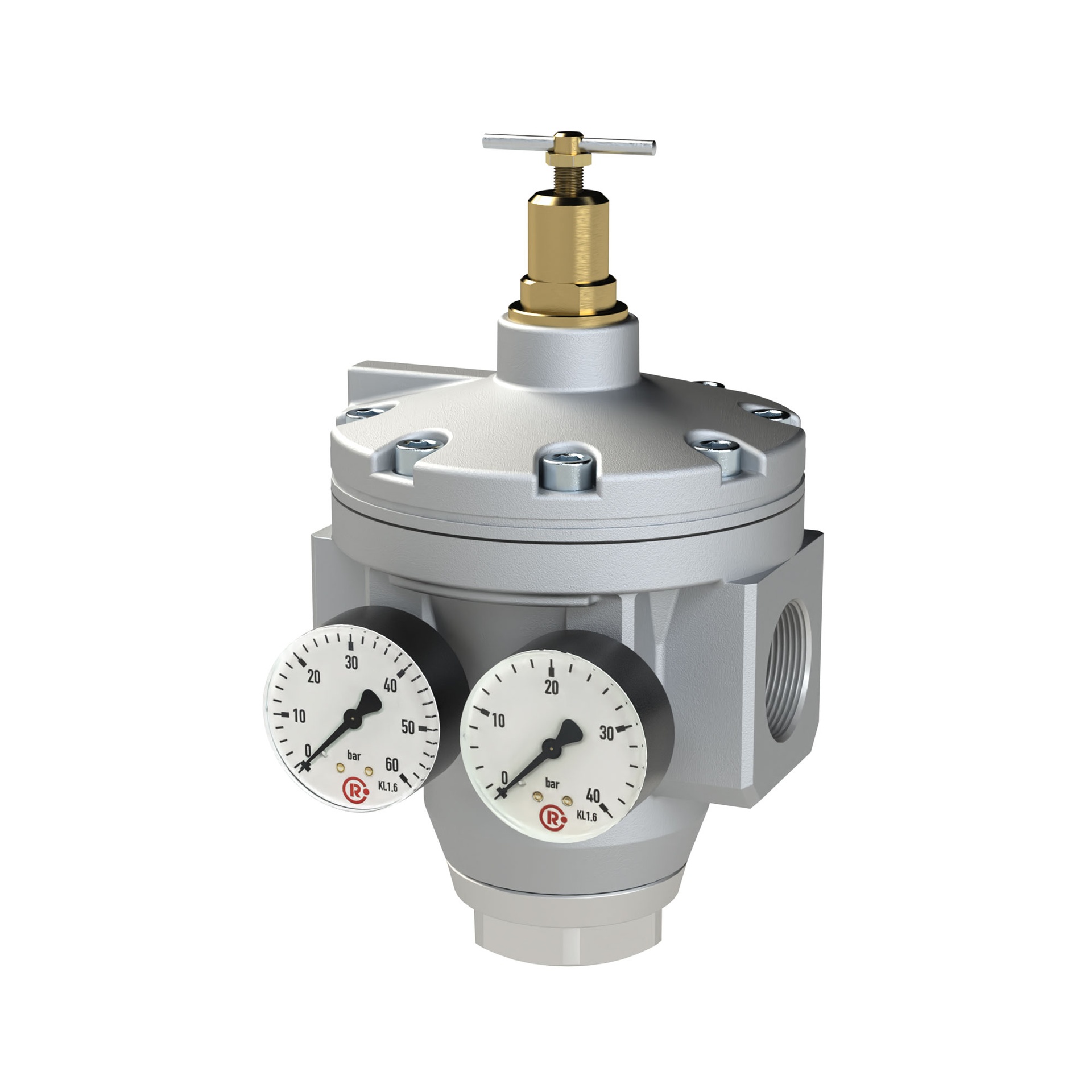

![[146275] RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 25 bar](/web/image/product.template/283957/image_128/%5B146275%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%201%201-2%2C%20control%20range%200.5%20-%2025%20bar?unique=7ecc7e1)
|
Typennummer: DRG.G112.0,5-25B |
813.82 € | |

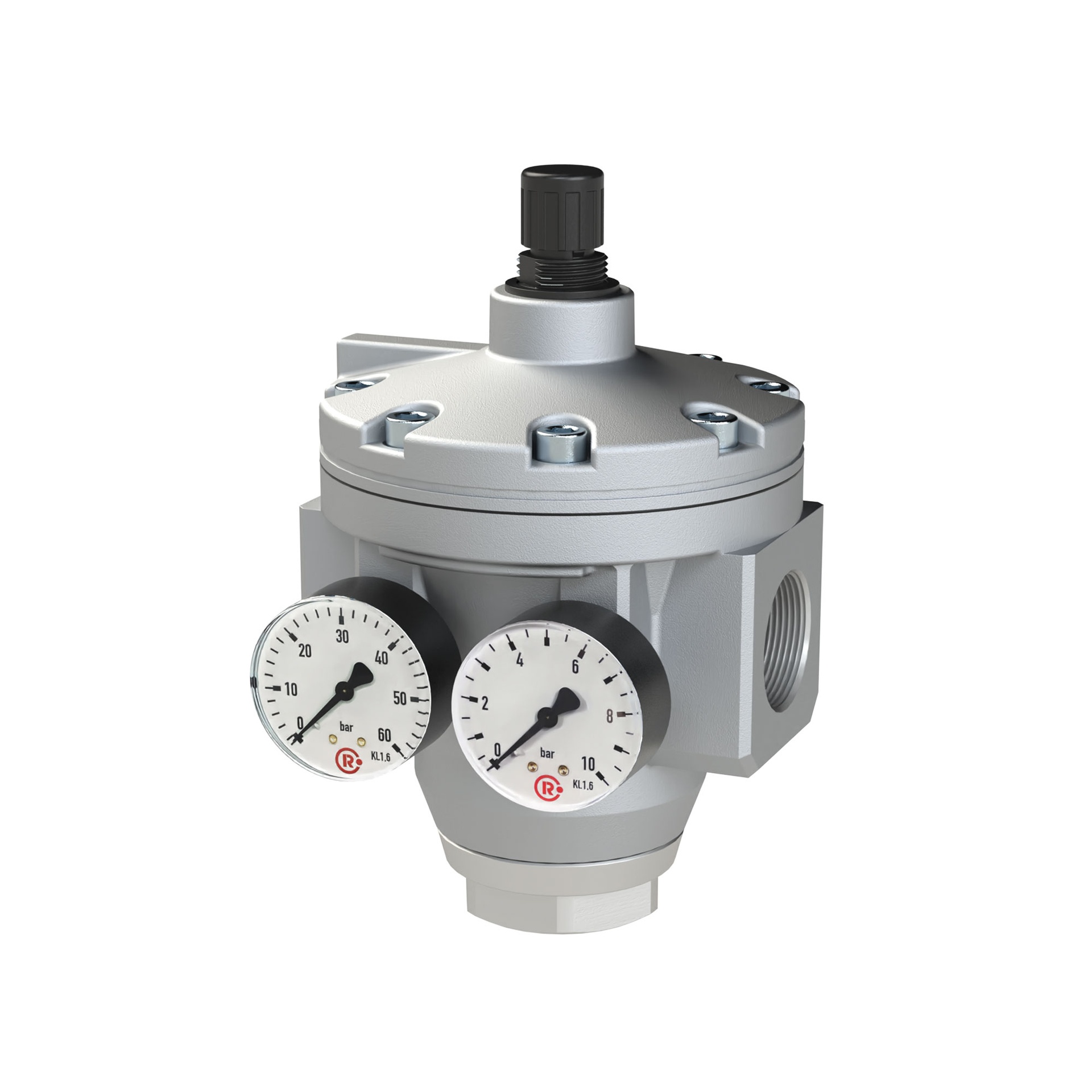

![[146272] RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 6 bar](/web/image/product.template/283954/image_128/%5B146272%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%201%201-2%2C%20control%20range%200.5%20-%206%20bar?unique=7ac67d0)
|
[146272] RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 6 bar
Typennummer: DRG.G112.0,5-6B |
759.35 € | |
![[146277] RIEGLER large pressure regulator with 2 pressure gauges, G 2, control range 0.5 - 10 bar](/web/image/product.template/283959/image_128/%5B146277%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%202%2C%20control%20range%200.5%20-%2010%20bar?unique=19e7e00)
|
Typennummer: DRG.G2.0,5-10B |
759.35 € | |
![[146278] RIEGLER large pressure regulator with 2 pressure gauges, G 2, control range 0.5 - 15 bar](/web/image/product.template/283960/image_128/%5B146278%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%202%2C%20control%20range%200.5%20-%2015%20bar?unique=f40c185)
|
Typennummer: DRG.G2.0,5-15B |
759.35 € | |
![[146279] RIEGLER large pressure regulator with 2 pressure gauges, G 2, control range 0.5 - 25 bar](/web/image/product.template/283961/image_128/%5B146279%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%202%2C%20control%20range%200.5%20-%2025%20bar?unique=bf69cb4)
|
Typennummer: DRG.G2.0,5-25B |
813.82 € | |
![[146276] RIEGLER large pressure regulator with 2 pressure gauges, G 2, control range 0.5 - 6 bar](/web/image/product.template/283958/image_128/%5B146276%5D%20RIEGLER%20large%20pressure%20regulator%20with%202%20pressure%20gauges%2C%20G%202%2C%20control%20range%200.5%20-%206%20bar?unique=3cb23d9)
|
Typennummer: DRG.G2.0,5-6B |
759.35 € | |
Maintenance, wear and spare parts
| Product | Price | ||
|---|---|---|---|
![[101840] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 16 bar, Ø 63](/web/image/product.template/169812/image_128/%5B101840%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2016%20bar%2C%20%C3%98%2063?unique=182f20b)
|
Type number: 218 |
7.01 € | |
![[101843] RIEGLER Standard pressure gauge, rear centric, G 1/4, 0 - 60 bar, Ø 63](/web/image/product.template/169815/image_128/%5B101843%5D%20RIEGLER%20Standard%20pressure%20gauge%2C%20rear%20centric%2C%20G%201-4%2C%200%20-%2060%20bar%2C%20%C3%98%2063?unique=e8db4d7)
|
Type number: 221 |
8.27 € | |

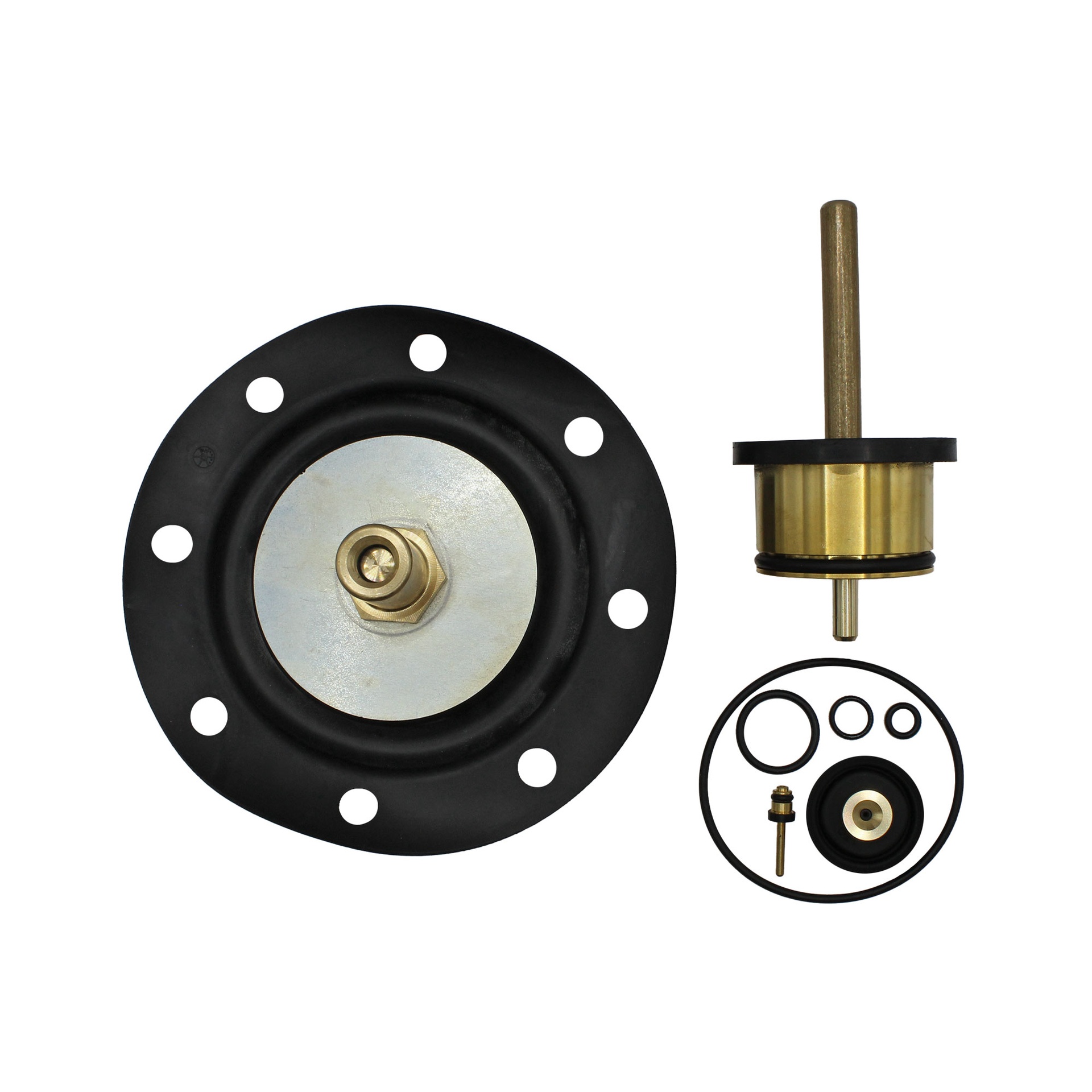

![[146281] RIEGLER wear parts kit large pressure r. G1 1/2, G2, regul. pressure max. 6-15bar](/web/image/product.template/283963/image_128/%5B146281%5D%20RIEGLER%20wear%20parts%20kit%20large%20pressure%20r.%20G1%201-2%2C%20G2%2C%20regul.%20pressure%20max.%206-15bar?unique=59a51f0)
|
