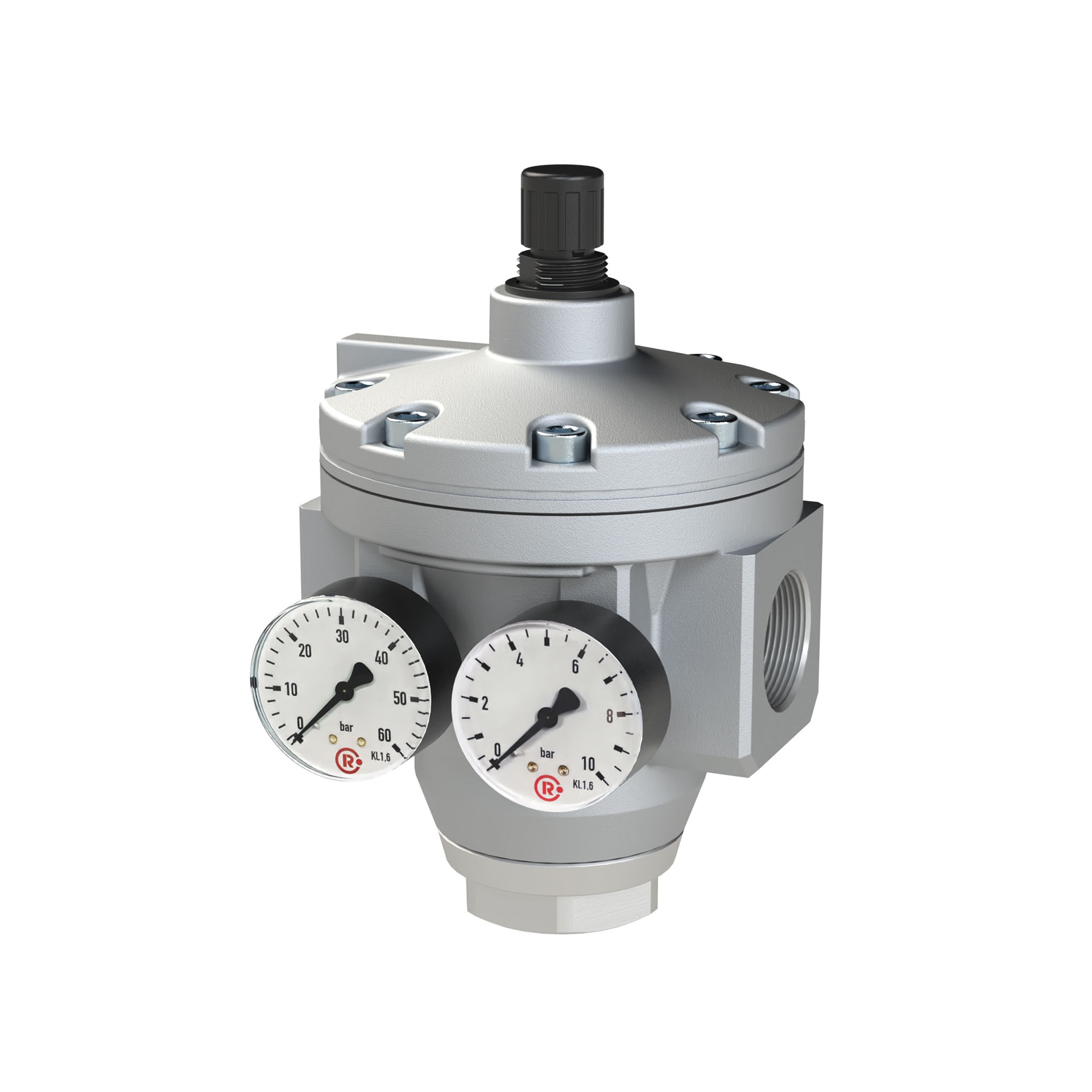

RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 15 bar

RIEGLER Large pressure regulator with 2 pressure gauges made of die-cast aluminum, for compressed air preparation - Type DRG.G112.0,5-15B

The RIEGLER large pressure regulator with 2 pressure gauges, G 1 1/2, control range 0.5 - 15 bar reduces the inlet pressure precisely to a constant working pressure and protects downstream consumers from pressure fluctuations. The housing is made of die-cast aluminum with NBR seals. The control range extends from 0.5 bar to 15 bar with a maximum inlet pressure of 40 bar. The permissible medium temperature is between -10 °C and 60 °C. Connection thread G 1 1/2 - suitable for common industry standards. Suitable for compressed air or other neutral gases. The flow rate is 50000 l/min (at P1 = 10 bar, P2 = 8 bar and pressure drop Δp = 1 bar). Uniform working pressure for constant process quality.

Field of application

Typical areas of application: Compressed air treatment, machine supply and process control.
